Name: M5Stack StickS3 ESP32-S3-PICO-1-N8R8 Mini IoT Dev Kit
Brand: M5Stack
SKU: 558-K150
Price: 3627.23 INR
Availability: InStock

Technical Specifications

Brand:

M5Stack

SoC:

ESP32-S3-PICO-1-N8R8 @ Xtensa® 32-bit LX7 dual-core processor, clock frequency 240MHz

Flash:

8MB

PSRAM:

8MB Octal

IMU:

BMI270

Wi-Fi:

2.4 GHz Wi-Fi

Display:

Model: ST7789P3 Resolution: 135x240

Input Power:

USB Type-C DC 5V

Audio Codec:

ES8311: 24-bit resolution, I2S protocol

Microphone:

MEMS microphone, Signal-to-Noise Ratio (SNR): 65 dB

Speaker:

AW8737 power amplifier + 8Ω@1W 2011 cavity speaker

Operating Temperature:

0 ~ 40 C

Battery Capacity:

250mAh

Grove Load Capacity:

No load: 5V Max: 4.88V@0.38A

Power Consumption:

Power off: 4.2V@14.02uA L1 state: 4.2V@52.47uA L2 state: 4.2V@102.40uA L3A state: 4.2V@36.69mA Full load: 4.2V@519.02mA

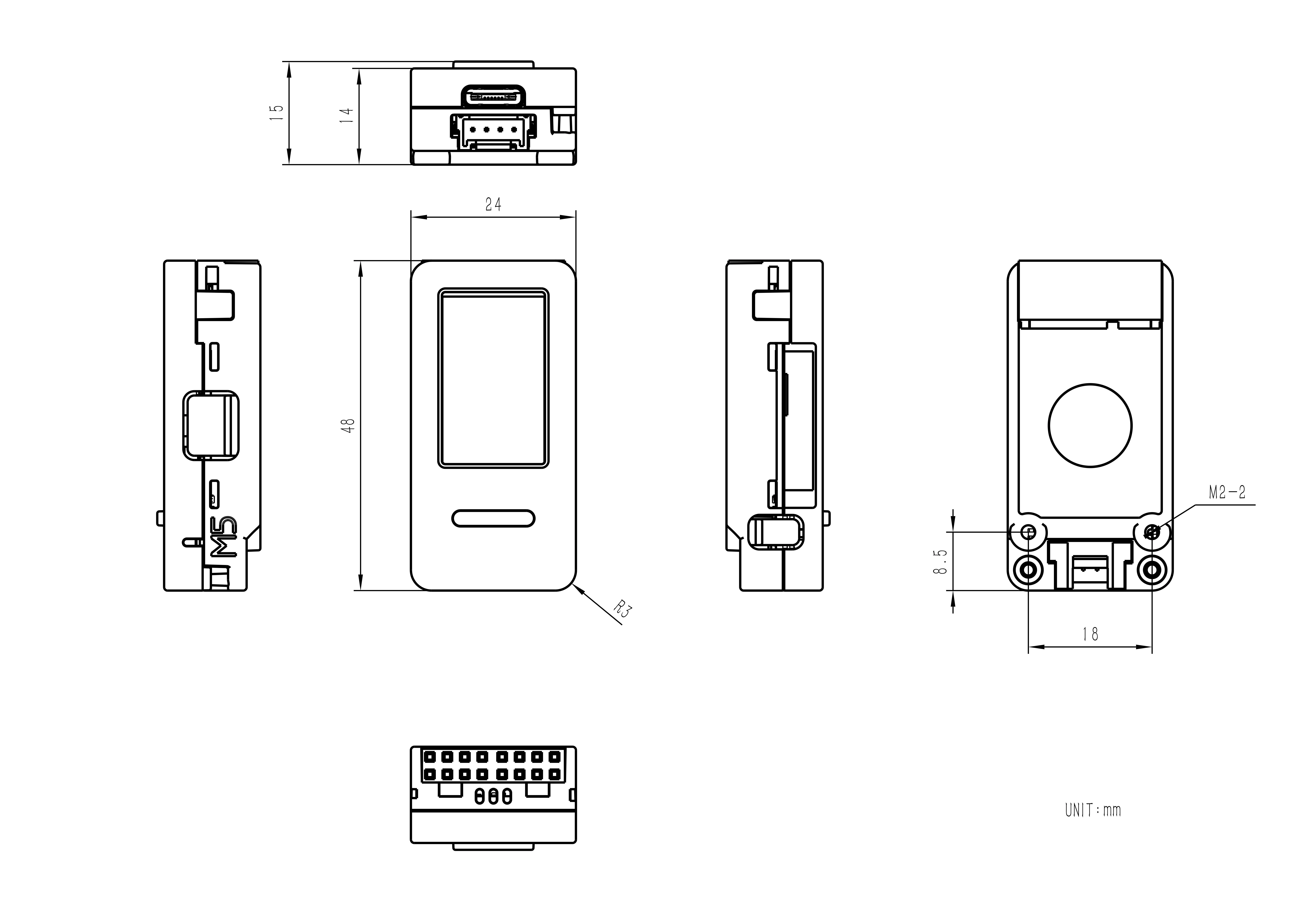

Product Size:

48.0x24.0x15.0mm

Product Weight:

20.0g

Package Size:

65.0x25.0x15.0mm

Gross Weight:

22.4g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Documents

Compact ESP32-S3 IoT Controller with 1.14-Inch LCD, 6-Axis IMU, Audio and Infrared Control

The M5Stack StickS3 ESP32-S3 Mini IoT Dev Kit is a compact programmable controller designed for remote control, IoT, and interactive embedded applications. Powered by the ESP32-S3-PICO-1-N8R8, it combines 8 MB Flash and 8 MB PSRAM with 2.4 GHz Wi-Fi connectivity to support connected applications, user interfaces, and intelligent control projects. A 1.14-inch LCD, integrated 6-axis IMU and programmable buttons provide convenient visual feedback, motion sensing and local user input in a portable form factor.

StickS3 also integrates an ES8311 mono audio codec, high-sensitivity MEMS microphone, speaker, and AW8737 power amplifier for voice capture and audio-output applications. Built-in infrared transmitter and receiver functions enable compatible IR remote-control projects, while the integrated 250 mAh lithium battery supports portable operation. Hat2 bus and HY2.0-4P expansion interfaces allow additional sensors and peripherals to be connected, making StickS3 suitable for smart-home control, AI voice assistants, IoT development and compact human-machine interfaces.

Key Features

ESP32-S3-PICO-1-N8R8: Integrates a high-performance ESP32-S3 controller for connected and interactive embedded applications.
8 MB Flash: Provides onboard program and firmware storage for application development.
8 MB PSRAM: Supports memory-intensive applications, graphical interfaces, and connected workloads.
2.4 GHz Wi-Fi: Enables wireless networking for IoT, remote-control and smart-device applications.
1.14-Inch LCD: Integrated display provides compact visual output for menus, status information, and user interfaces.
6-Axis IMU: Built-in motion sensor supports movement, orientation, and gesture-related applications.
Programmable Buttons: Provide local user-input control for interactive projects.
ES8311 Audio Codec: Integrated mono audio codec supports audio capture and playback applications.
MEMS Microphone: High-sensitivity microphone enables voice input and sound-detection projects.
Integrated Speaker: Provides onboard audio output for alerts, prompts, and interactive applications.
AW8737 Amplifier: Dedicated audio power amplifier supports speaker output.
IR Transmitter and Receiver: Enables both sending and receiving infrared signals for compatible remote-control systems.
250 mAh Battery: Integrated rechargeable lithium battery supports portable and handheld operation.
Hat2 Expansion: 2.54 mm 16-pin Hat2 bus provides additional hardware-expansion capability.
HY2.0-4P Interface: Supports connection to compatible M5Stack Units and external peripherals.
Magnetic Back: Rear magnetic design supports convenient attachment to compatible metal surfaces.
Multiple Development Platforms: Supports Arduino, UIFlow2, ESP-IDF, and PlatformIO.
