Compact ESP32 IoT Development Kit With 1.14-Inch LCD, Wi-Fi, Bluetooth LE And 120 mAh Battery
The M5Stack K016-P-SE StickC-Plus SE is a compact ESP32-based IoT development kit designed for lightweight connected devices, smart controllers, wearable electronics, and creative embedded projects. It uses the ESP32-PICO-D4 with a 32-bit dual-core Xtensa LX6 processor operating at up to 240 MHz, together with 520 KB SRAM and 4 MB flash memory. Integrated 2.4 GHz Wi-Fi, Bluetooth 4.2 BR/EDR, and Bluetooth LE support enable wireless communication for portable IoT and remote-control applications.
StickC-Plus SE features a 1.14-inch 135 x 240 colour TFT LCD, BM8563 RTC, SPM1423 microphone, infrared transmitter, passive buzzer, status LED, programmable buttons, and AXP192 power-management IC. A built-in 120 mAh lithium battery supports portable operation, while the HY2.0-4P Grove interface and 2.54 mm Hat-Bus provide expansion for compatible M5Stack Unit and HAT accessories. Unlike the standard StickC-Plus, the SE version removes the onboard 6-axis IMU, making it well-suited for applications where motion sensing is not required.
Key Features
- ESP32-PICO-D4 Controller: Uses a 32-bit dual-core Xtensa LX6 processor operating at up to 240 MHz
- Memory Resources: Provides 520 KB SRAM and 4 MB flash memory for firmware and application data
- Wireless Connectivity: Supports 2.4 GHz Wi-Fi, Bluetooth 4.2 BR/EDR, and Bluetooth LE
- Colour Display: Integrated 1.14-inch TFT LCD provides 135 x 240 pixel resolution
- Display Controller: ST7789V2 driver supports the integrated colour display
- Built-In RTC: BM8563 real-time clock supports timekeeping and time-based applications
- Integrated Microphone: SPM1423 microphone enables sound-detection and audio-input projects
- Infrared Transmission: Built-in IR transmitter supports compatible remote-control applications
- Passive Buzzer: Integrated buzzer provides audible alerts and feedback
- Status Indicator: Onboard red LED provides visual device-status indication
- Programmable Controls: Includes 2 customisable buttons, a power button, and a reset button
- Portable Power: Built-in 3.7 V, 120 mAh lithium battery supports mobile and stand-alone operation
- Power Management: AXP192 PMU manages power distribution and battery charging functions
- Grove Expansion: HY2.0-4P interface supports compatible sensors and M5Stack Unit-series devices
- HAT Expansion: 2.54 mm 8P Hat-Bus enables integration with compatible HAT-series accessories
- Magnetic Back: Magnetic rear surface supports convenient attachment to suitable metal surfaces
- Translucent Enclosure: Orange translucent housing provides a distinctive compact design
- Development Support: Compatible with UIFlow1, UIFlow2, Arduino IDE, ESP-IDF, and PlatformIO
- No Onboard IMU: SE version omits the 6-axis motion sensor for applications that do not require motion sensing
Applications
- Lightweight IoT controllers
- Compact smart-home terminals
- Wearable electronic devices
- Wireless monitoring systems
- Remote-control projects
- Infrared-control applications
- Portable sensor interfaces
- Time-based control systems
- Audio-input experiments
- Embedded user-interface development
- DIY electronics projects
- Educational IoT projects
- HAT and Unit-series prototyping
- Battery-powered connected devices

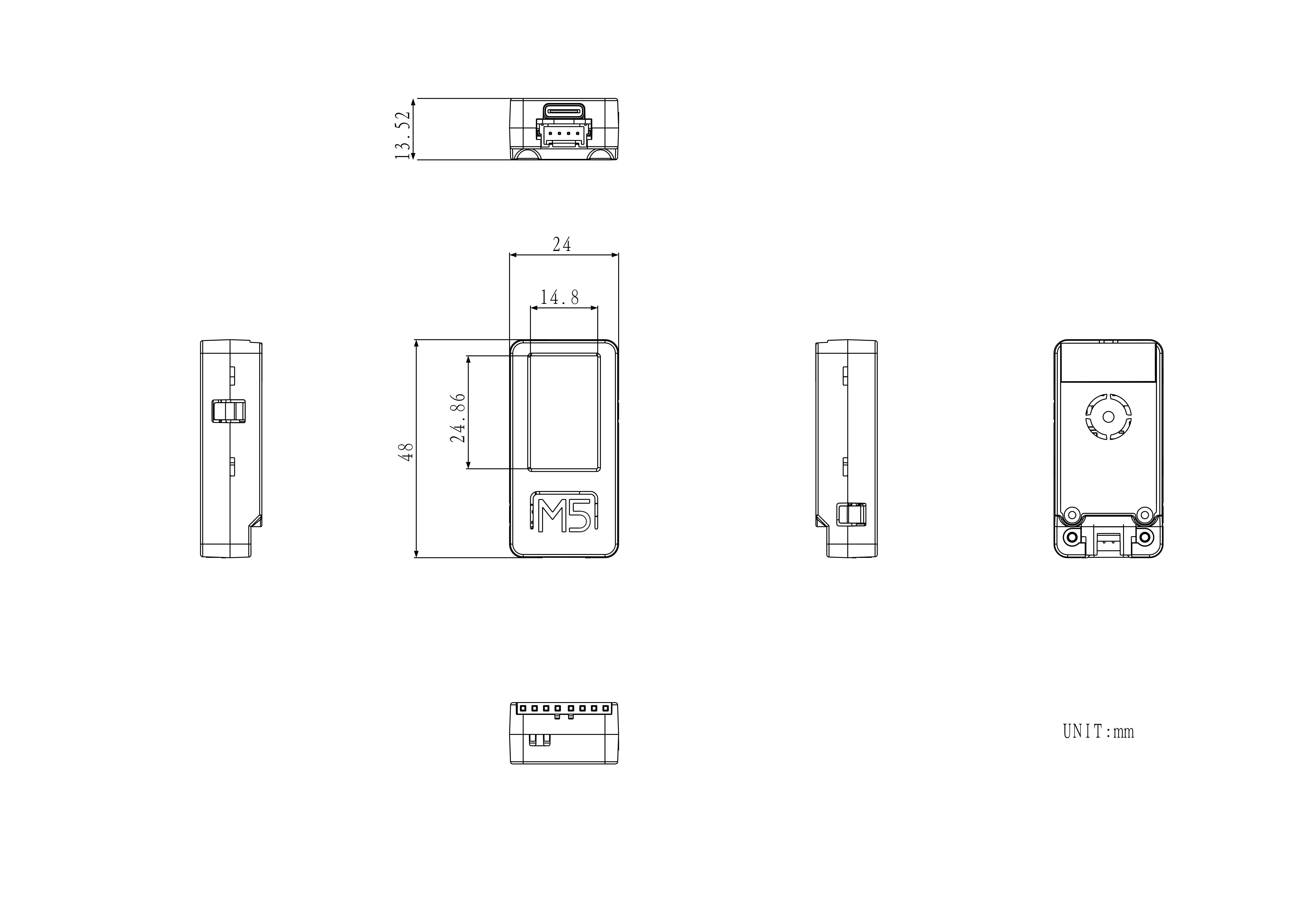

Model Size
Package Includes:
