Portable ESP32-S3 Smart Controller with 1.75-Inch Round AMOLED Touchscreen, Audio, IMU and RTC
The M5Stack Stopwatch Dev Kit is a compact round development platform designed for portable smart devices, wearable interfaces, and lightweight IoT terminals. Powered by the ESP32-S3R8 controller, it combines 16 MB Flash and 8 MB PSRAM with 2.4 GHz Wi-Fi connectivity for responsive embedded applications and wireless communication. Its 1.75-inch round AMOLED touchscreen provides a high-quality visual interface, while 2 programmable buttons, a dedicated power button and built-in vibration feedback support intuitive human-machine interaction.
For sensing and multimedia applications, the Stopwatch integrates a BMI270 6-axis IMU, ES8311 audio codec, MEMS microphone, AW8737A speaker amplifier, and a 1 W at 8 Ohm speaker. An RX8130CE RTC provides dedicated timekeeping, while HY2.0-4P and rear expansion buses allow compatible sensors and external hardware to be added. The integrated M5PM1 multi-level power-management system and 450 mAh battery support portable operation, while rear magnetic attachment and a lanyard hole provide flexible mounting and carrying options.
Key Features
- ESP32-S3R8 Controller: Provides the main processing platform for portable smart-control, wearable, and IoT applications.
- 16 MB Flash: Offers onboard storage for firmware, graphical resources, and application data.
- 8 MB PSRAM: Provides additional working memory for graphical interfaces and data-intensive embedded applications.
- 2.4 GHz Wi-Fi: Enables wireless communication for IoT devices, remote interfaces, and connected applications.
- 1.75-Inch Round AMOLED: Integrated circular AMOLED display provides a compact visual interface for wearable and portable devices.
- Touch Interface: Supports direct touchscreen interaction for menus, controls, and custom user interfaces.
- Programmable Buttons: Includes 2 programmable buttons for configurable user-input functions.
- Dedicated Power Button: Provides convenient hardware power control.
- Vibration Feedback: Built-in vibration motor supports haptic notifications and interaction feedback.
- BMI270 6-Axis IMU: Provides acceleration and angular-rate sensing for motion and attitude applications.
- ES8311 Audio Codec: Supports integrated audio input and output functions.
- MEMS Microphone: Enables voice input, audio capture, and sound-detection applications.
- AW8737A Amplifier: Integrated audio amplifier drives the onboard speaker.
- 1 W Speaker: 8 Ohm speaker provides integrated audio output for prompts, alerts, and interactive applications.
- RX8130CE RTC: Dedicated real-time clock provides reliable timekeeping for portable devices.
- HY2.0-4P Expansion: Supports connection to compatible M5Stack Units and external peripherals.
- Rear Expansion Buses: Includes 2.54 mm 7-pin and 2.54 mm 6-pin interfaces for additional hardware expansion.
- 450 mAh Battery: Built-in rechargeable battery supports portable operation.
- M5PM1 Power Management: Multi-level power-management system supports efficient battery operation and low-power use.
- Magnetic Back: Rear magnetic attachment simplifies mounting on compatible metal surfaces.
- Lanyard Hole: Allows convenient carrying or wearable installation.
Applications
- Portable smart devices
- Electronic badges
- Lightweight IoT terminals
- Wearable human-machine interfaces
- Portable control panels
- Smart remote controllers
- Motion-sensing devices
- Timekeeping applications
- Personal information displays
- Wireless monitoring terminals
- Voice-interaction devices
- Portable data loggers
- Educational embedded projects
- Custom wearable electronics
- Compact automation interfaces

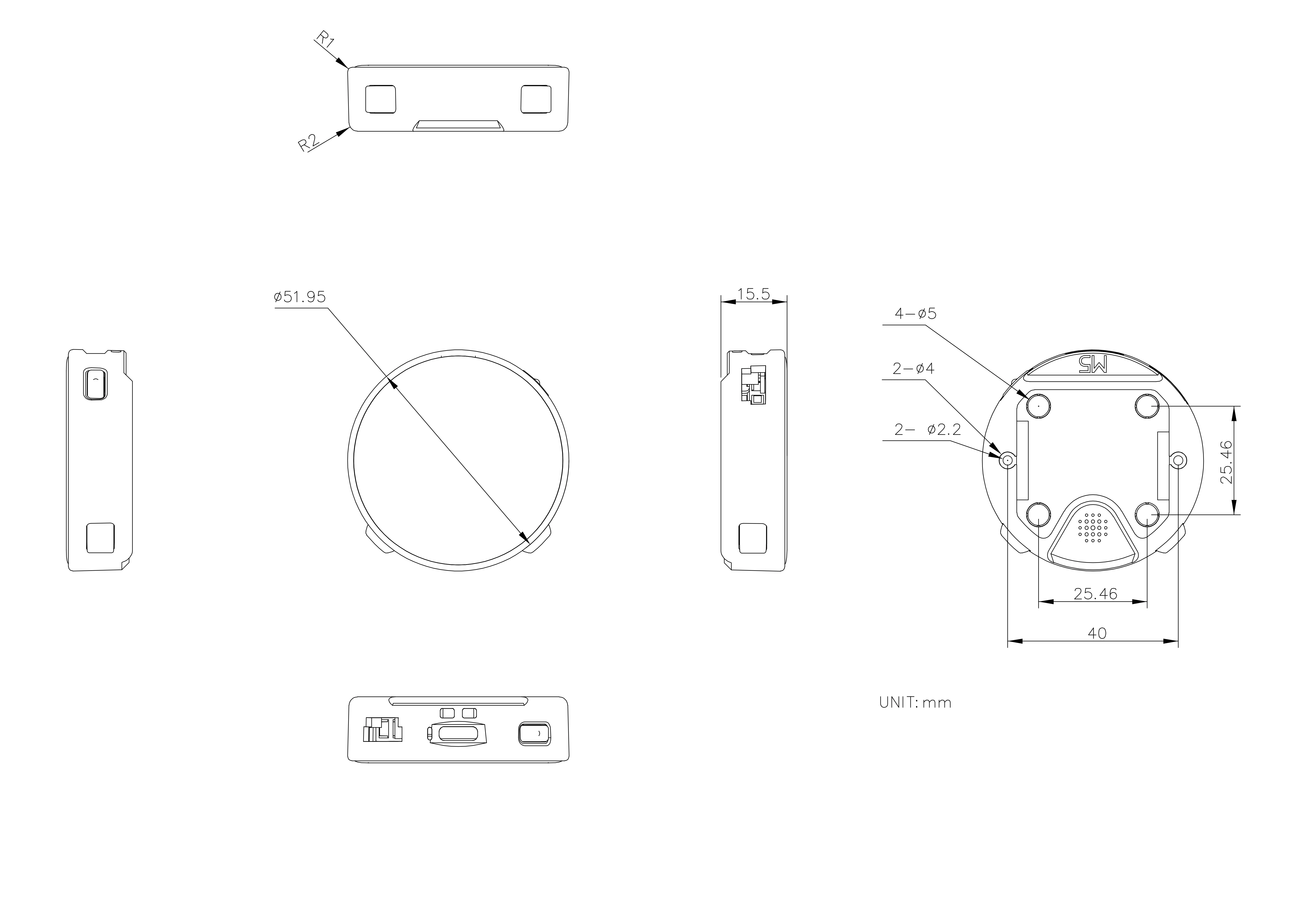

Model Size
Package Includes:
