Name: M5Stack NanoC6 ESP32-C6FH4 Dev Kit
Brand: M5Stack
SKU: 558-C125
Price: 965.69 INR
Availability: InStock

Technical Specifications

Brand:

M5Stack

SoC:

ESP32-C6FH4@RISC-V single-core, main frequency 160MHz, supports CDC

Flash:

4MB

Wi-Fi:

2.4 GHz Wi-Fi 6 (802.11ax), backward compatible with 802.11b/g/n

Zigbee:

Zigbee 3.0

Thread:

Thread 1.3

Matter:

Supported

RGB:

WS2812

IR Remote Parameters:

IR transmission distance at ∠0°: 632CM IR transmission distance at ∠45°: 83CM IR transmission distance at ∠90°: 29CM

Grove Maximum Output Current:

DC 5V@600mA (Output capability depends on USB power supply capacity)

Standby Current (Deep Sleep Mode):

USB Type-C power supply: DC 5V@125.5uA Grove power supply: DC 5V@50uA

Standby Current (ULP Mode):

USB Type-C power supply: DC 5V@252uA Grove power supply: DC 5V@201.5uA

Operating Current:

In Wi-Fi mode: DC 5V@106.2mA

Wi-Fi Range Test (Antenna facing up, back facing the test):

54.9m

Operating Temperature:

0 ~ 40 C

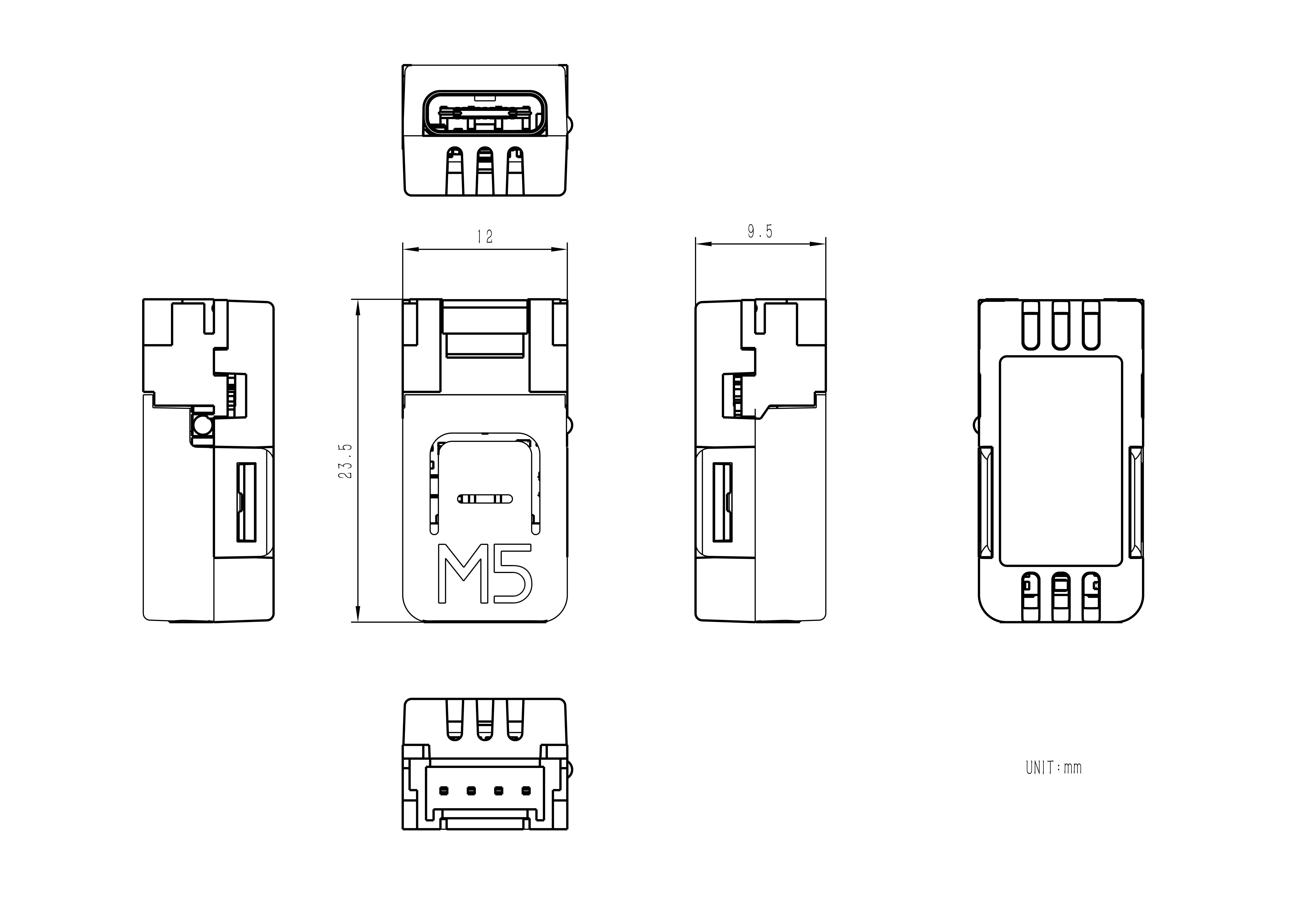

Product Size:

23.5x12.0x9.5mm

Product Weight:

2.7g

Package Size:

100.6x80.0x10.5mm

Gross Weight:

11.4g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Compact Low-Power ESP32-C6 IoT Development Board with Wi-Fi 6, Zigbee, Thread and Matter

The M5Stack NanoC6 Dev Kit is a compact and low-power IoT development board based on the ESP32-C6FH4 SoC. It supports 2.4 GHz Wi-Fi 6, Zigbee, Thread and Matter wireless technologies, making it suitable for smart-home devices, industrial automation, environmental monitoring and connected sensor systems. The onboard ceramic antenna provides integrated wireless connectivity while keeping the overall board size compact for space-conscious embedded applications.

NanoC6 also integrates an infrared transmitter for controlling compatible IR-enabled devices and a programmable RGB LED for visual status indication and customised lighting effects. Its Grove interface allows compatible M5Stack Units and external devices to be connected using interfaces such as UART and I2C. Support for UIFlow2, Arduino IDE, ESP-IDF and PlatformIO provides multiple development options for prototyping and deploying IoT, automation and wireless-control applications.

Key Features

ESP32-C6FH4 SoC: Built around the ESP32-C6 platform for low-power wireless IoT development.
Wi-Fi 6 Connectivity: Supports 2.4 GHz Wi-Fi 6 for modern wireless-network applications.
Zigbee Support: Enables integration with compatible Zigbee devices and automation networks.
Thread Support: Supports Thread networking for low-power connected-device applications.
Matter Compatibility: Suitable for developing compatible Matter-based smart-home and IoT devices.
Infrared Transmitter: Integrated IR LED enables control of compatible infrared appliances and IoT equipment.
Programmable RGB LED: Provides configurable visual indication for system status, alerts and user-defined effects.
Ceramic Antenna: Integrated antenna supports compact wireless designs without requiring an external antenna.
Grove Expansion: Grove interface simplifies connection to compatible sensors, actuators and M5Stack Units.
UART and I2C Expansion: Grove connectivity can be configured for compatible UART and I2C peripherals.
Low-Power Design: Well-suited for energy-conscious wireless sensing and embedded IoT applications.
Compact Form Factor: Small board dimensions simplify integration into portable and space-limited devices.
Multiple Development Platforms: Supports UIFlow2, Arduino IDE, ESP-IDF and PlatformIO.
