Compact ESP32 Development Kit with 5x5 RGB LED Matrix, BMI270 6-Axis IMU and Infrared Control
The M5Stack Atom Matrix ESP32 Dev Kit v1.1 is a compact programmable controller designed for motion sensing, infrared control, and visual-interaction applications. This updated version replaces the previous MPU6886 sensor with the BMI270 6-axis IMU, combining a 3-axis accelerometer and 3-axis gyroscope for improved motion and attitude detection. The board is based on the ESP32-PICO-D4 solution with integrated Wi-Fi connectivity and 4 MB SPI Flash, making it suitable for embedded development, smart-device control, and compact IoT prototypes.
For user interaction, Atom Matrix v1.1 integrates a 5x5 RGB LED matrix with a programmable button positioned beneath the display. The LED matrix can provide status indication, animations, and visual feedback, while the button supports configurable trigger actions. An onboard infrared emitter enables compatible remote-control applications, and expandable pins and interfaces provide access for custom sensors and external hardware. Its compact form factor makes Atom Matrix v1.1 useful for motion-sensing controllers, attitude-analysis projects, and smart-home control nodes.
Key Features
- ESP32-PICO-D4 Controller: Provides integrated processing and wireless connectivity for IoT and embedded applications.
- 4 MB SPI Flash: Offers onboard storage for firmware, programs, and application resources.
- Wi-Fi Connectivity: Integrated wireless networking supports IoT devices and connected-control applications.
- BMI270 6-Axis IMU: Combines a 3-axis accelerometer and 3-axis gyroscope for motion and attitude sensing.
- I2C IMU Interface: BMI270 motion sensor communicates through I2C at address 0x68.
- Improved Motion Detection: Updated BMI270 sensor supports responsive attitude and movement tracking.
- 5x5 RGB LED Matrix: Integrated 25-pixel RGB display enables animations, status indicators, and visual feedback.
- Programmable Button: Button beneath the LED matrix supports configurable user-input and command-trigger functions.
- Infrared Transmitter: Built-in IR emitter supports control of compatible infrared-enabled devices.
- Compact Form Factor: Small enclosure supports space-constrained and portable embedded projects.
- Expandable Interfaces: Exposed pins and interfaces enable connection to external sensors, modules, and custom circuits.
- Interactive Control: Combines motion sensing, visual output, button input, and IR transmission in a single compact device.
- Multiple Development Platforms: Supports UIFlow1, UIFlow2, Arduino IDE, ESP-IDF and PlatformIO.
Applications
- Motion-sensing remote controllers
- Motion capture
- Attitude analysis
- Attitude control
- Smart-home central control nodes
- Infrared remote controls
- Gesture-based interfaces
- IoT development
- Embedded prototypes
- Visual status indicators
- Interactive devices
- Robotics sensing
- Orientation monitoring
- Educational electronics
- Compact wireless controllers

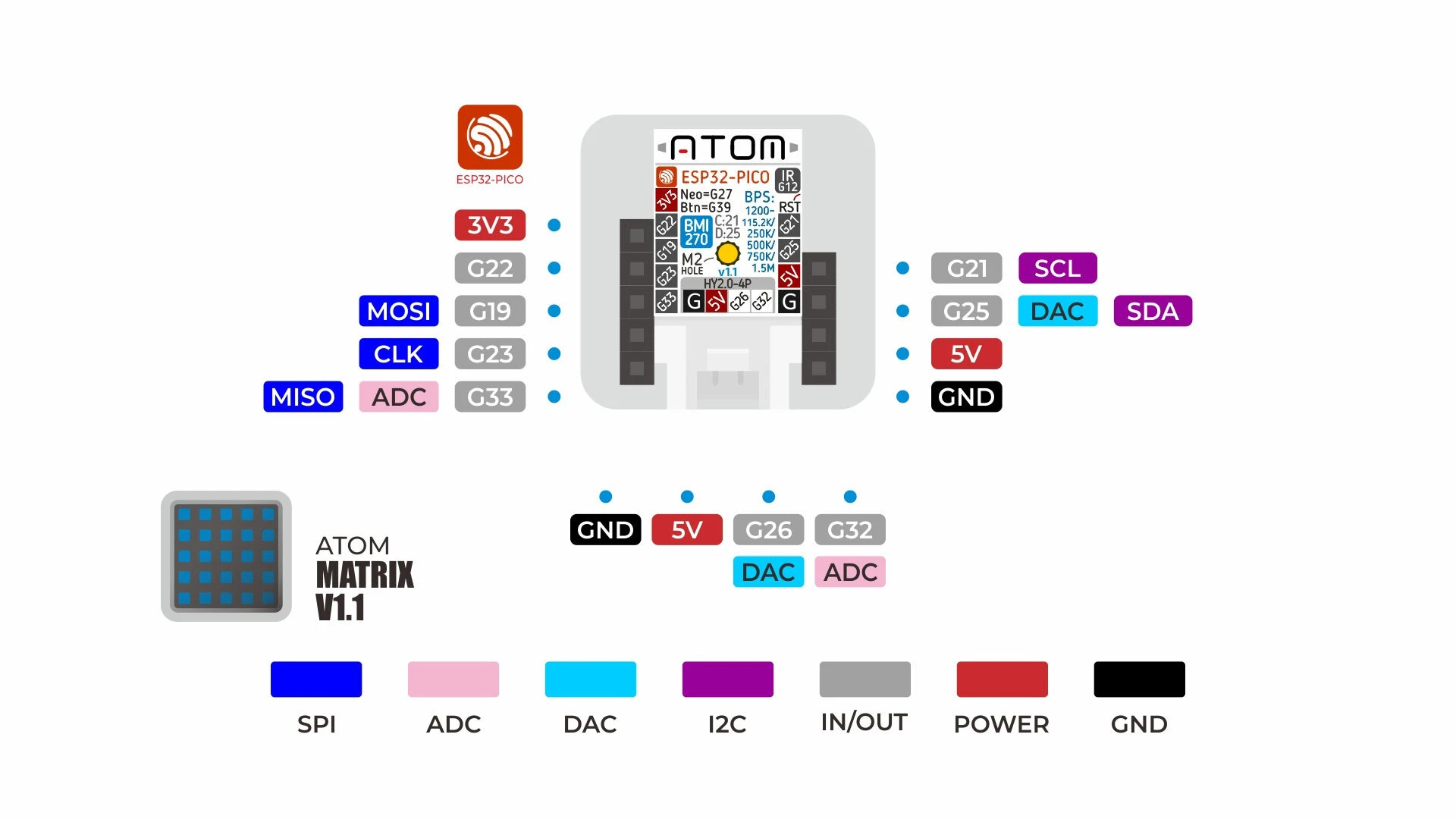

Pinmap

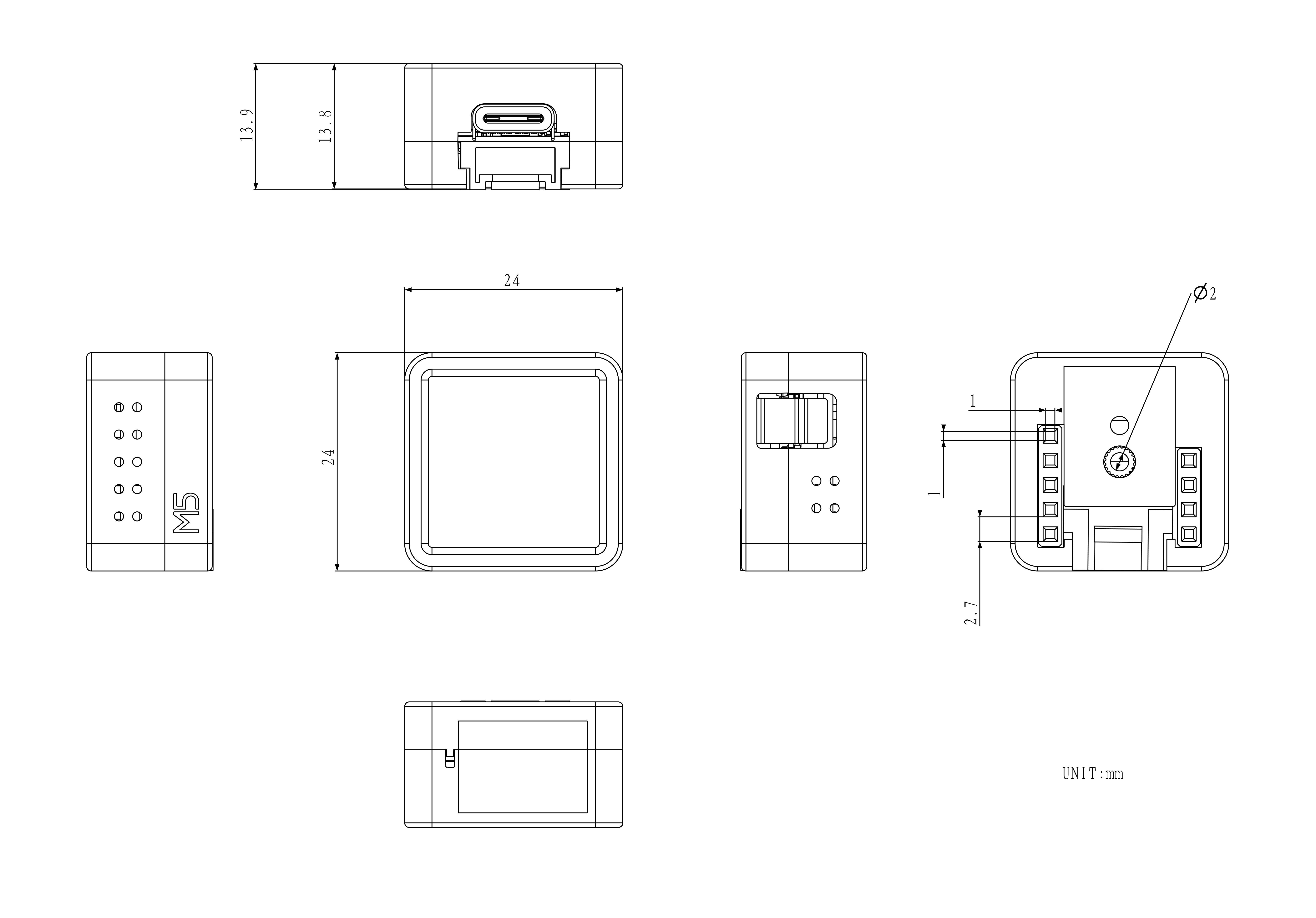

Model Size
Package Includes:
