Banana Pi OpenWrt One Router Board with POE Dual-band WiFi 6 MediaTek MT7981B

BANANA PI

No reviews yet Write a Review
SKU:
560-OpenWrt-One-PCBA
MPN:
OpenWrt-One-PCBA

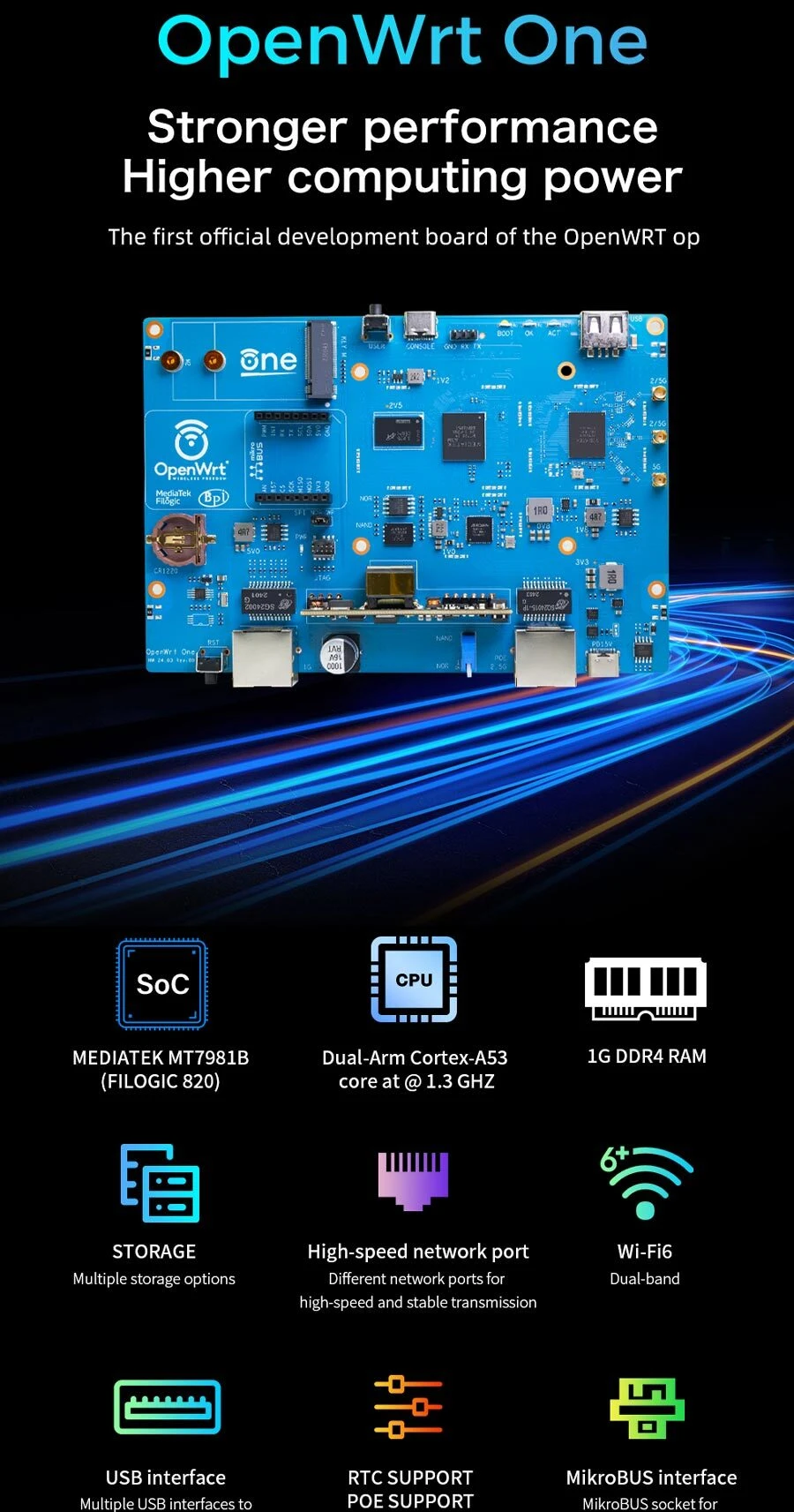

Banana Pi OpenWrt One PCBA router board with MediaTek MT7981B, dual-band Wi-Fi 6, 2.5GbE WAN, NVMe expansion and PoE module
Banana Pi OpenWrt One PCBA board with MT7981B, 1 GB DDR4, dual-band Wi-Fi 6, 2.5GbE WAN, Gigabit LAN, NVMe expansion, dual flash storage, and PoE module. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹11,092.89 inc. GST
₹9,400.75 ex. GST

Technical Specifications

Brand:
BANANA PI
SoC:
MediaTek MT7981B (Filogic 820) dual-core Cortex-A53 processor @ 1.3 GHz
System Memory:
1GB DDR4
Storage:
256 MB SPI NAND flash for U-boot and Linux, 16 MB SPI NOR flash for write-protected (by default) recovery bootloader (reflashing can be enabled with a jumper)
Storage:
Two types of flash devices are used to make the board almost unbrickable, M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1)
Networking:
1 x 2.5GbE RJ45 port, 1 x Gigabit Ethernet RJ45 port, Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3/2×2 + zero-wait DFS 5Ghz), 3x MMCX antenna connectors
USB:
1x USB 2.0 Type-A host port, USB Type-C (device, console) port using Holtek HT42B534-2 UART to USB chip
Expansion:
MikroBUS socket for expansion modules
Debugging:
Console via USB-C port or 3-pin header, 10-pin JTAG/SWD header for main SoC
RTC:
Support RTC onboard
Miscellaneous:
Reset and User buttons, Boot select switch: NAND (regular) or NOR (recovery), 2x PWM LEDs, 2x Ethernet LED (GPIO driven), EM6324 External hardware watchdog, NXP PCF8563TS (I2C) RTC with battery backup holder for CR1220 coin-cell
Power Supply:
15V USB-PD on USB-C port,Optional 802.3at/af PoE via RT5040 module
Dimensions:
148x100.5 mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Documents

Banana Pi OpenWrt One PCBA Router Board with Wi-Fi 6, 2.5GbE, NVMe and PoE Module

The Banana Pi OpenWrt One PCBA Board with PoE Module is an open-source Wi-Fi 6 router development platform designed in collaboration with the OpenWrt community. Built around the MediaTek MT7981B Filogic 820 SoC, it combines a dual-core Arm Cortex-A53 processor running at up to 1.3 GHz with 1 GB DDR4 RAM, 256 MiB SPI-NAND and 16 MiB SPI-NOR storage. The included PoE module adds convenient network-based power capability, making the board suitable for compact router, gateway, IoT, and network-development installations.

Wireless connectivity is provided through the MediaTek MT7976C dual-band Wi-Fi 6 chipset, supporting 2 x 2 operation on 2.4 GHz and 3 x 3 operation on 5 GHz. Wired networking includes 1 x 2.5GbE RJ45 WAN and 1 x Gigabit Ethernet RJ45 LAN, while an M.2 2230/2242 socket enables NVMe SSD expansion through PCIe 2.0 x1. The dual-flash architecture provides a recovery-oriented design for firmware development, while USB 2.0, RTC support, and a mikroBUS socket extend the board for custom OpenWrt, IoT, and embedded networking projects.

Key Features

  • Official OpenWrt Hardware Platform: Designed for OpenWrt learning, firmware development, and open-source networking applications.
  • MediaTek MT7981B Filogic 820: Networking SoC designed for Wi-Fi routers, gateways, and IoT applications.
  • Dual-Core Arm Cortex-A53: Processor operates at up to 1.3 GHz for routing and embedded network workloads.
  • Dual-Band Wi-Fi 6: MediaTek MT7976C provides Wi-Fi 6 connectivity across 2.4 GHz and 5 GHz bands.
  • 2x2 2.4 GHz Wi-Fi: Supports compatible dual-stream wireless operation on the 2.4 GHz band.
  • 3x3 5 GHz Wi-Fi: Provides higher-capacity wireless connectivity on the 5 GHz band.
  • 1 GB DDR4 RAM: Provides system memory for OpenWrt, routing services, and additional applications.
  • 256 MiB SPI-NAND: Main onboard flash storage supports firmware and operating-system data.
  • 16 MiB SPI-NOR: Additional flash provides a recovery-oriented boot architecture to reduce firmware-development risk.
  • PoE Module Included: Enables compatible Power-over-Ethernet operation for simplified router and gateway installations.
  • 2.5GbE WAN: High-speed RJ45 WAN interface supports multi-Gigabit upstream network connectivity.
  • Gigabit LAN: 1 x 1GbE RJ45 LAN provides wired connectivity for local network devices.
  • NVMe SSD Expansion: M.2 2230/2242 socket supports compatible NVMe storage through PCIe 2.0 x1.
  • USB 2.0 Connectivity: Supports compatible USB peripherals and storage devices.
  • RTC Support: Enables real-time clock functionality for applications requiring persistent timekeeping.
  • mikroBUS Expansion: Supports compatible expansion modules for additional sensing, communication, and control functions.
  • PCBA Format: Board-level configuration is suitable for custom enclosures, prototypes, and embedded networking products.

Applications

  • OpenWrt learning and development
  • Wi-Fi 6 routers
  • PoE-powered router installations
  • IoT gateways
  • Network communication systems
  • Home networking
  • Wireless access points
  • Compact NAS projects
  • Firmware development
  • Network laboratories
  • Home automation gateways
  • VPN routers
  • Embedded networking systems
  • Custom router products
  • Maker and DIY networking projects

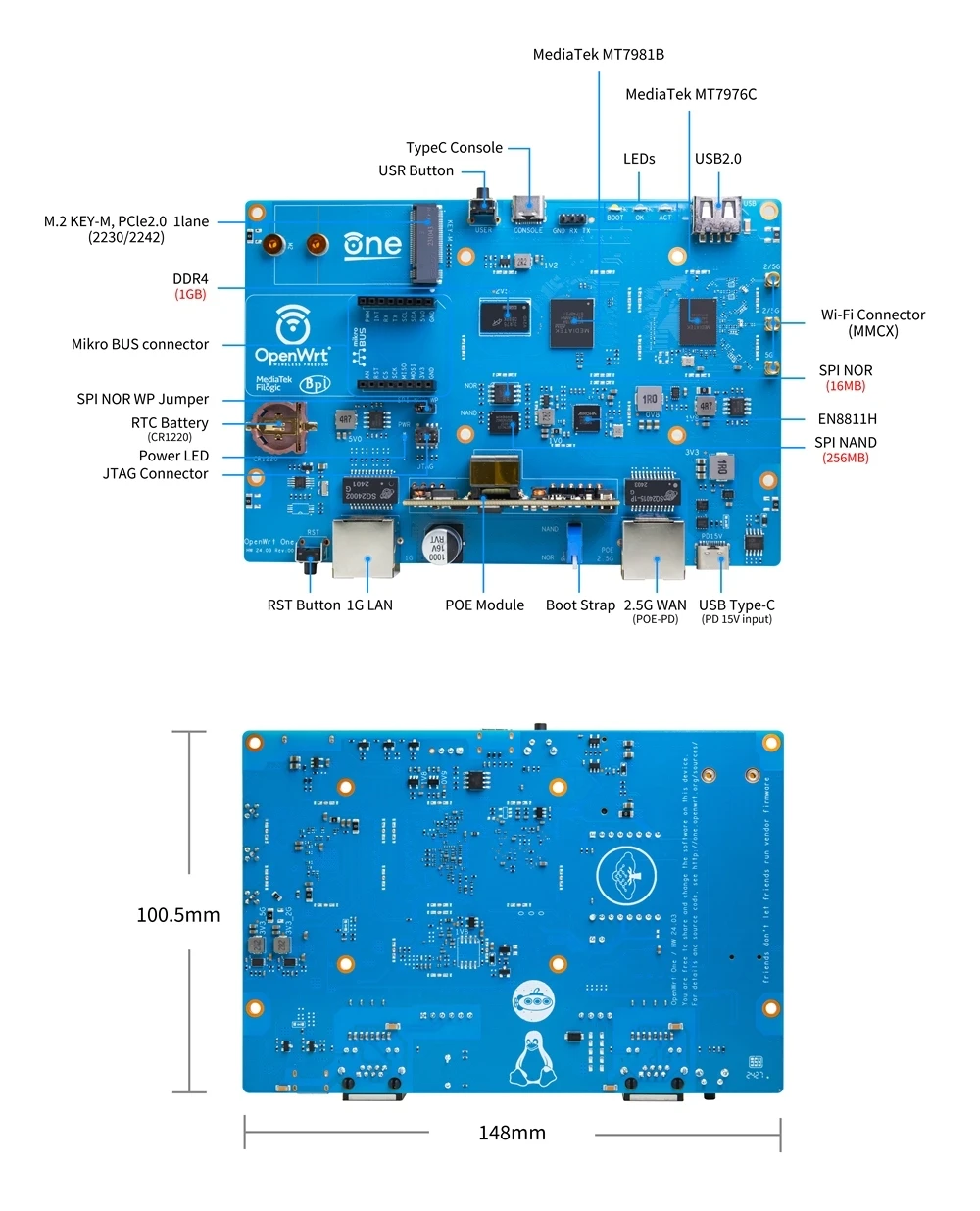

Hardware Interface

Package Includes:

  • Banana Pi OpenWrt One PCBA board with POE module
