Name: Banana Pi OpenWrt One Router Board Kit Dual-band WiFi 6 MediaTek MT7981B
Brand: BANANA PI
SKU: 560-OpenWrt-One-EU
Price: 14217.64 INR
Availability: InStock

Technical Specifications

Brand:

BANANA PI

SoC:

MediaTek MT7981B (Filogic 820) dual-core Cortex-A53 processor @ 1.3 GHz

System Memory:

1GB DDR4

Storage:

256 MB SPI NAND flash for U-boot and Linux, 16 MB SPI NOR flash for write-protected (by default) recovery bootloader (reflashing can be enabled with a jumper)

Storage:

Two types of flash devices are used to make the board almost unbrickable, M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1)

Networking:

1 x 2.5GbE RJ45 port, 1 x Gigabit Ethernet RJ45 port, Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3/2×2 + zero-wait DFS 5Ghz), 3x MMCX antenna connectors

USB:

1x USB 2.0 Type-A host port, USB Type-C (device, console) port using Holtek HT42B534-2 UART to USB chip

Expansion:

MikroBUS socket for expansion modules

Debugging:

Console via USB-C port or 3-pin header, 10-pin JTAG/SWD header for main SoC

RTC:

support RTC onboard

Miscellaneous:

Reset and User buttons, Boot select switch: NAND (regular) or NOR (recovery), 2x PWM LEDs, 2x Ethernet LED (GPIO driven), EM6324 External hardware watchdog, NXP PCF8563TS (I2C) RTC with battery backup holder for CR1220 coin-cell

Power Supply:

15V USB-PD on USB-C port,Optional 802.3at/af PoE via RT5040 module

Dimensions:

148 x 100.5 mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Documents

Banana Pi OpenWrt One Wi-Fi 6 Router with MediaTek Filogic 820, 2.5GbE, NVMe and Official OpenWrt Support

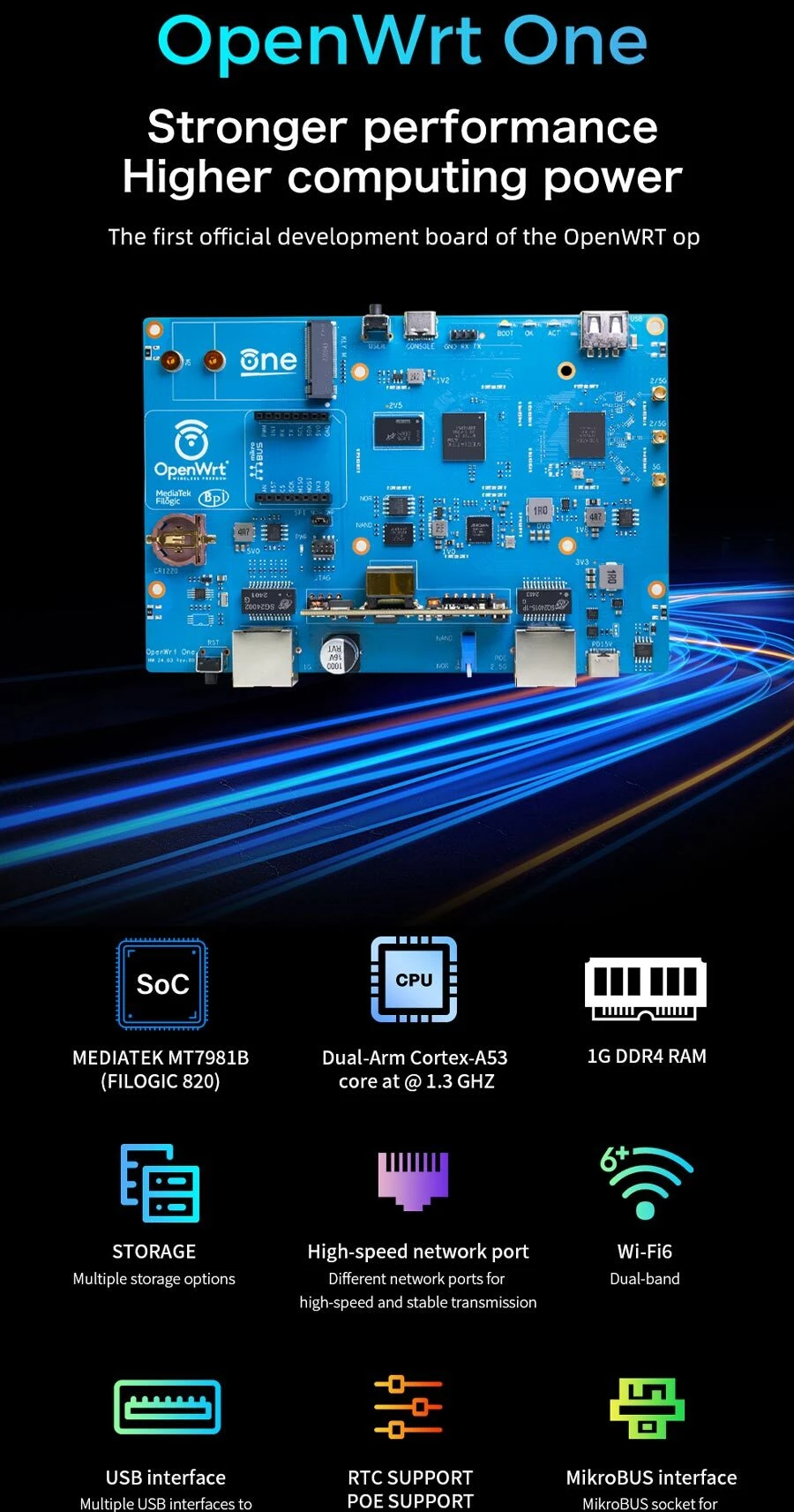

The Banana Pi OpenWrt One Euro Standard is an open-source router and development platform designed in collaboration with the OpenWrt community. Also known as OpenWrt One/AP-24.XY, it is based on the MediaTek MT7981B Filogic 820 SoC with a dual-core Arm Cortex-A53 processor running at up to 1.3 GHz. The board combines 1 GB DDR4 RAM, dual-band Wi-Fi 6, 2.5GbE WAN, Gigabit Ethernet LAN, and expandable NVMe storage, making it suitable for OpenWrt development, home networking, IoT projects, and compact NAS applications.

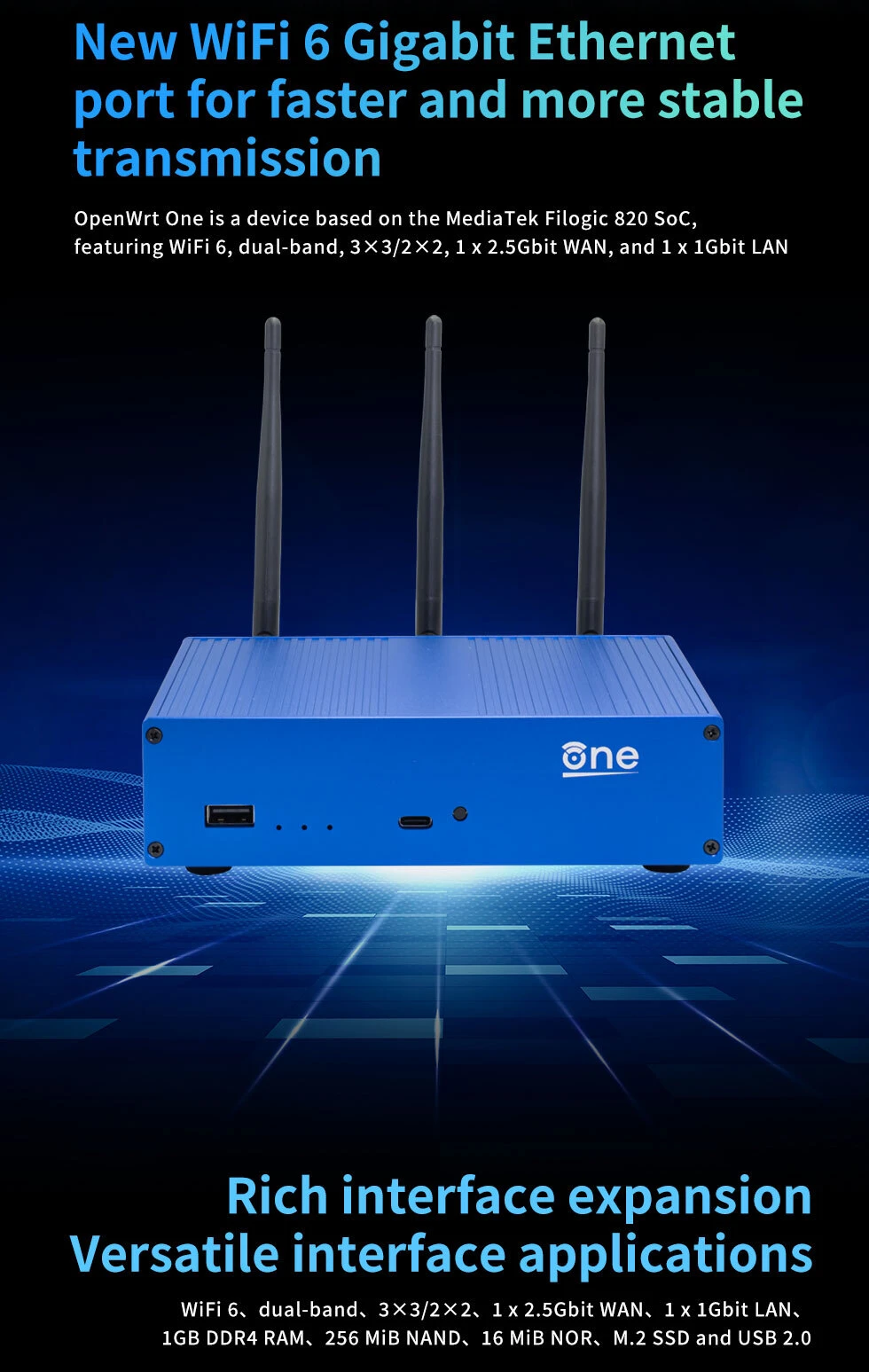

Wireless connectivity is provided through the MediaTek MT7976C chipset with 2 x 2 operation on 2.4 GHz and 3 x 3 operation on 5 GHz. The board uses 256 MiB SPI-NAND together with 16 MiB SPI-NOR protected storage, providing a dual-storage architecture designed to improve system recovery and reduce the risk of permanently bricking the device. An M.2 2230/2242 socket with PCIe 2.0 x1 supports compatible NVMe SSDs, while USB 2.0 Type-A, RTC support, PoE capability, and a mikroBUS expansion socket provide additional flexibility for networking and embedded development.

Key Features

Official OpenWrt Platform: Developed in collaboration with the OpenWrt open-source community for router development, testing and learning.
MediaTek MT7981B Filogic 820: Networking SoC designed for Wi-Fi routers, IoT devices, and connected applications.
Dual-Core Arm Cortex-A53: Processor operates at up to 1.3 GHz for routing, network services, and embedded workloads.
Dual-Band Wi-Fi 6: MediaTek MT7976C provides 2 x 2 connectivity on 2.4 GHz and 3 x 3 connectivity on 5 GHz.
1 GB DDR4 RAM: Provides memory for OpenWrt, routing applications, and additional network services.
2.5GbE WAN: High-speed RJ45 WAN interface supports multi-Gigabit internet and upstream network connections.
1GbE LAN: Gigabit RJ45 LAN interface provides wired connectivity for local network devices.
Dual Flash Architecture: Combines 256 MiB SPI-NAND and 16 MiB SPI-NOR for resilient boot and recovery functionality.
Recovery-Oriented Design: Protected secondary storage helps reduce the risk of permanently bricking the router during firmware development.
NVMe Expansion: M.2 2230/2242 socket supports compatible NVMe SSDs through PCIe 2.0 x1.
USB 2.0 Type-A: Provides connectivity for compatible storage devices, adapters, and peripherals.
RTC Support: Real-time clock functionality supports accurate timekeeping in suitable applications.
PoE Support: Supports compatible Power-over-Ethernet configurations for simplified installation.
mikroBUS Expansion: Enables connection of compatible Click boards and other expansion modules.
Open-Source Development: Suitable for firmware experimentation, networking research, and OpenWrt software development.
