Banana Pi BPI-R4 Pro Wi-Fi 7 Router Board MediaTek MT7988A 4GB RAM, 8GB eMMC

BANANA PI

No reviews yet Write a Review
SKU:
560-BPI-R4-PRO-4E
MPN:
BPI-R4-PRO-4E
Banana Pi BPI-R4 Pro Wi-Fi 7 router board with MediaTek MT7988A, 2.5G RJ45 ports and 10G SFP+ slots
Banana Pi BPI-R4 Pro Wi-Fi 7 router board with MediaTek MT7988A quad-core 1.8 GHz processor, 4GB DDR4, 8GB eMMC, 2.5G and 10G SFP+ ports, and 4G/5G expansion for routers, gateways and NAS builds. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹36,715.90 inc. GST
₹31,115.17 ex. GST
6 people looking at this.

Technical Specifications

Brand:
BANANA PI
CPU:
MediaTek MT7988A Quad-core Arm Cortex-A73,1.8GHz processor
SDRAM:
4GB DDR4
On Board Storage:
MicroSD (TF) card Slot 8GB eMMC Flash 256MB SPI-NAND Flash
Onboard Ethernet:
1x 2.5G RJ45 WAN 2x 1G RJ45 LAN 4x 2.5G RJ45 LAN 1x 1G LAN(FPC Connector)
SFP:
1x 10G SFP+ WAN (combo with 2.5G RJ45 WAN) 1x 10G SFP+ LAN
mini PCIE Slot:
2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi NIC
M.2 Slot:
2x M.2 M-KEY slots with PCIe3.0 1lane interface for NVME SSD 3x M.2 B-KEY slots with USB3.2 for 4G/5G Cellular Module
USB:
1x USB3.2 TypeA Connector 1x USB2.0 TypeA Connector
Debug:
1x USB TypeC on board USB-UART Debug Console
GPIO:
2x13 PIN Header for expanding application
FAN:
2x Headers with PWM-controlled for fan
RTC:
1x CR1220 connector for RTC Battery
Buttons:
Reset button, WPS button, bootstrap switch
LEDs:
Power status Led and RJ45 Led
DC Power:
DC5521 12V/5.2A or 19V 3.2A USB TypeC PD20V
Size:
132mmx194mm
Weight:
about 210g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Banana Pi BPI-R4 Pro Wi-Fi 7 Router Board with MediaTek MT7988A Quad-Core Cortex-A73, 4GB DDR4, 8GB eMMC and 10G SFP+ Ports

The Banana Pi BPI-R4 Pro is an open-source router board built on the MediaTek MT7988A (Filogic 880) network processor. It has a quad-core Arm Cortex-A73 CPU running at 1.8 GHz, 4GB DDR4 RAM, 8GB eMMC flash and 256MB SPI-NAND flash. It is the upgraded version of the BPI-R4 and suits developers and system integrators building high-throughput routers and gateways.

The Filogic 880 platform supports Wi-Fi 7 access point, router and gateway designs with up to 36 Gbps of wireless throughput. The Wi-Fi 7 companion chip supports 320 MHz bandwidth, 4096-QAM, MLO, MRU and AFC across the 2.4 GHz, 5 GHz and 6 GHz bands. The MediaTek Tunnel Offload Processor System (TOPS) handles tunnelling protocols in hardware, which reduces CPU load. Wired connectivity includes 2.5G RJ45 ports, 10G SFP+ ports, and M.2 slots for 4G/5G cellular modules and NVMe SSDs.

Key Features

  • Processor: MediaTek MT7988A quad-core Arm Cortex-A73 running at 1.8 GHz.
  • Memory and Storage: 4GB DDR4 RAM, 8GB eMMC, 256MB SPI-NAND and a MicroSD (TF) card slot.
  • Wi-Fi 7 Platform: Tri-band 2.4 GHz, 5 GHz and 6 GHz support with 320 MHz bandwidth, 4096-QAM, MLO, MRU and AFC.
  • Fast Wired Networking: 1x 2.5G RJ45 WAN, 4x 2.5G RJ45 LAN and 2x 1G RJ45 LAN, plus 1x 1G LAN on an FPC connector.
  • 10G SFP+ Ports: 1x 10G SFP+ WAN (combo with the 2.5G RJ45 WAN) and 1x 10G SFP+ LAN.
  • Tunnel Offload: MediaTek TOPS processes tunnelling protocols in hardware for better routing performance.
  • Cellular Expansion: 3x M.2 B-Key slots with USB 3.2 for 4G/5G modules.
  • NVMe Storage: 2x M.2 M-Key slots with PCIe 3.0 1-lane interface for SSDs.
  • Wi-Fi NIC Slots: 2x mini-PCIe slots with PCIe 3.0 2-lane interface.
  • Expansion and Control: 2x13-pin GPIO header, 2x PWM-controlled fan headers and a CR1220 RTC battery connector.
  • Flexible Power Input: DC5521 at 12V/5.2A or 19V/3.2A, or USB Type-C PD at 20V.

Applications

  • Internet service routers
  • Wi-Fi 7 wireless routers
  • 4G/5G wireless routers
  • Wireless repeaters
  • Home security gateways
  • Home automation controllers
  • NAS devices
  • Network and communication equipment

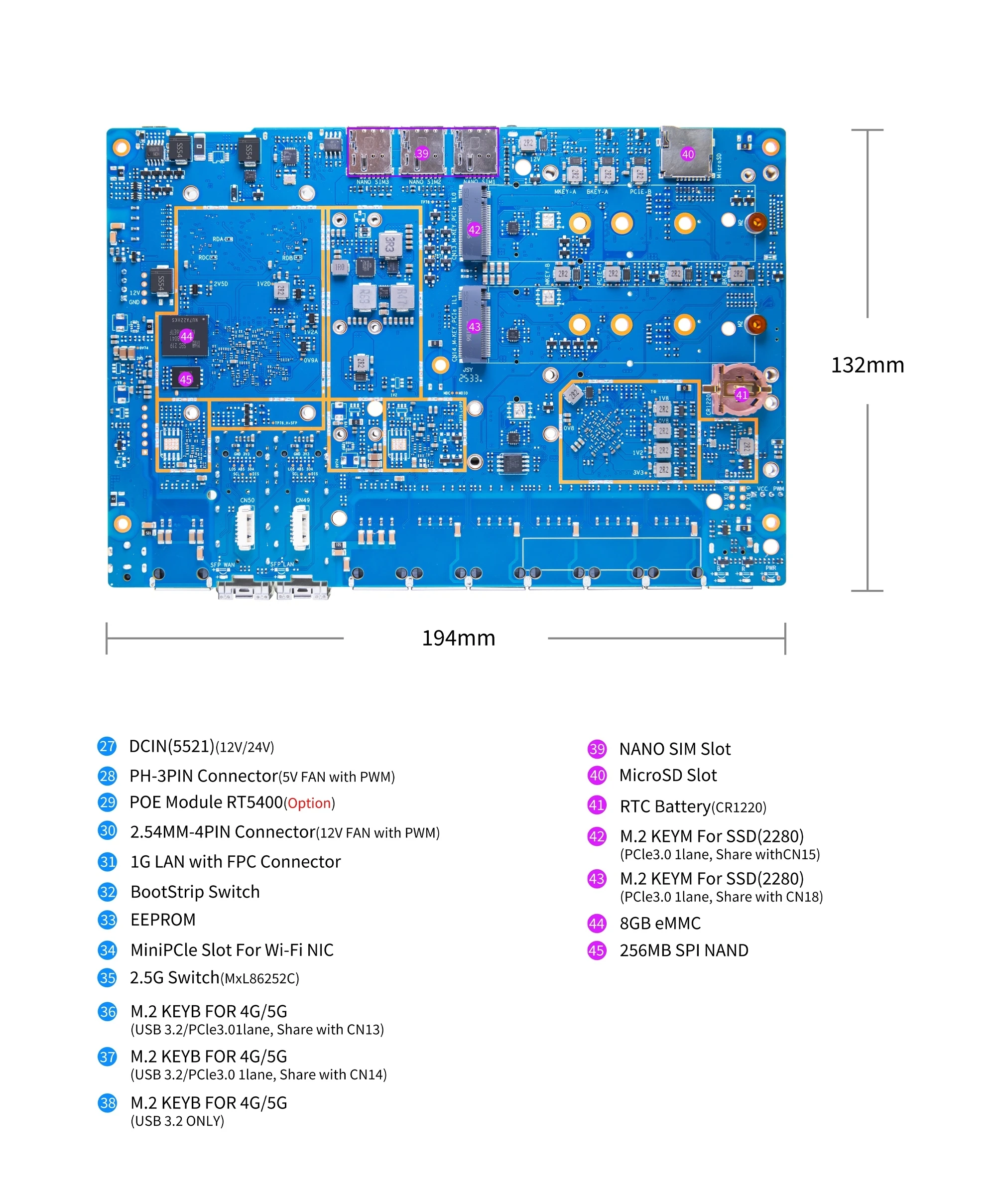

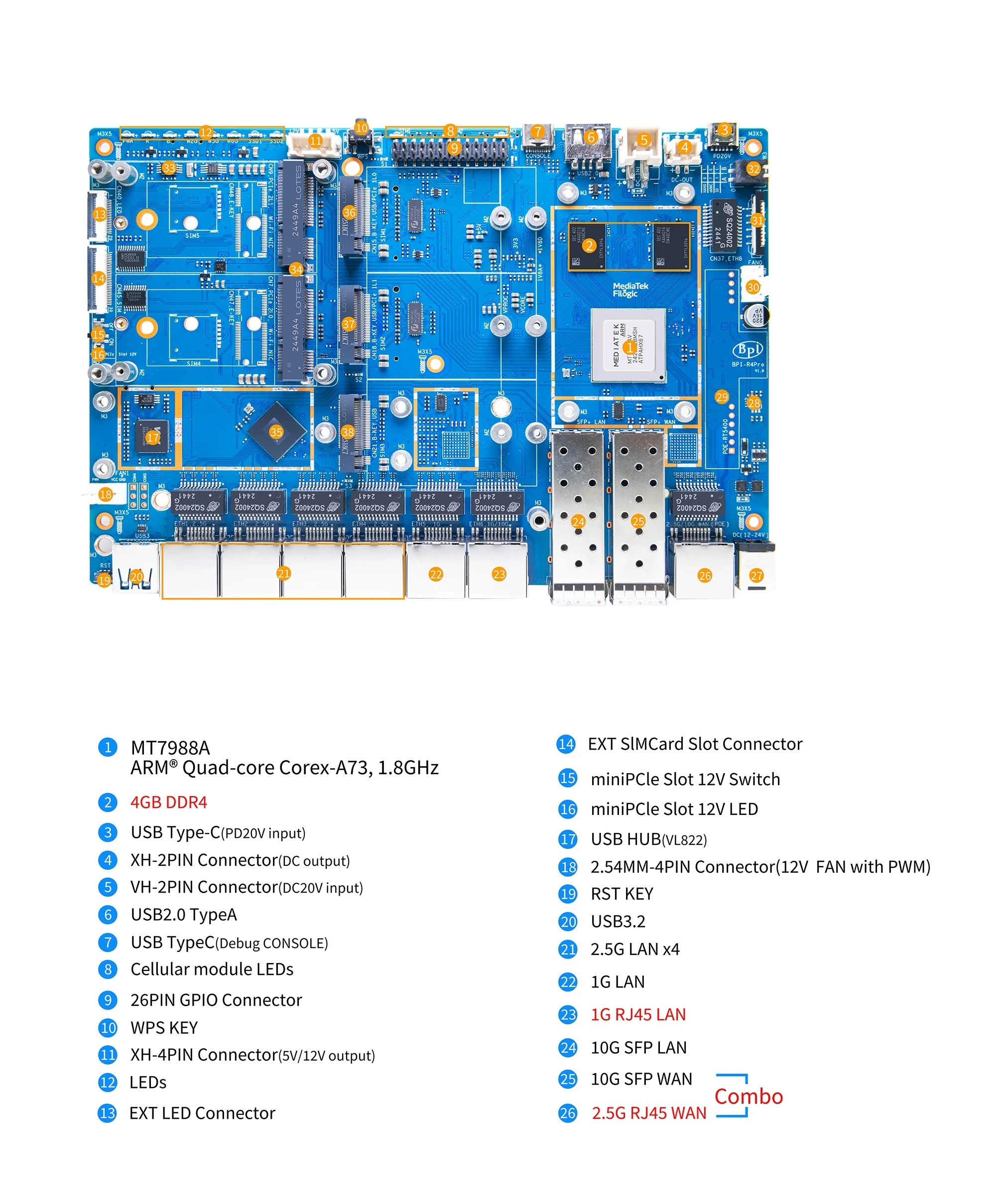

Hardware Layout

Package Includes:

  • Banana Pi BPI-R4 Prox1
