Banana Pi BPI-R4 Complete Wi-Fi 7 Router Set with MediaTek MT7988A, BE14 Module, Metal Case and 12V 5A Adapter
The Banana Pi BPI-R4 Router Set Complete Assembly Package is a preassembled networking platform designed for users building high-performance Wi-Fi 7 routers, 4G/5G gateways, network laboratories, and custom OpenWrt systems. The package combines the Banana Pi BPI-R4 router board with a BE14 Wi-Fi 7 module, metal enclosure, cooling fan, heat sink, antennas, network cable, and 12 V 5 A power adapter, reducing the additional hardware required to assemble a complete router platform.
At the core of the system is the MediaTek MT7988A Filogic 880 network processor with a quad-core Arm Cortex-A73 CPU running at up to 1.8 GHz. This configuration includes 4 GB DDR4 memory, 8 GB eMMC storage, and 128 MB SPI-NAND Flash. High-speed networking is provided through 2 x 10GbE SFP interfaces and 4 x Gigabit Ethernet ports, while M.2 and miniPCIe expansion supports NVMe storage, cellular connectivity, and Wi-Fi networking. With the BE14 Wi-Fi 7 module already included, the assembled BPI-R4 set provides a practical platform for OpenWrt development, advanced home networking, NAS experiments, and custom gateway applications.
Key Features
- Complete Preassembled Router Set: Combines the BPI-R4 board, BE14 Wi-Fi 7 module, enclosure, cooling hardware, antennas, and power accessories in one package.
- MediaTek MT7988A Filogic 880: High-performance network processor designed for advanced router, gateway, and communication applications.
- Quad-Core Arm Cortex-A73: 4-core processor running at up to 1.8 GHz for routing, network services, and gateway workloads.
- 4 GB DDR4 Memory: Provides system memory for OpenWrt, networking applications, and custom services.
- 8 GB eMMC Storage: Integrated storage supports operating systems, configuration files, and network applications.
- 128 MB SPI-NAND Flash: Provides additional onboard non-volatile storage for boot and firmware functions.
- BE14 Wi-Fi 7 Module Included: Preassembled wireless module supports development of advanced Wi-Fi 7 router applications.
- 2 x 10GbE SFP Interfaces: Provide high-bandwidth network connectivity for multi-Gigabit router and gateway deployments.
- 4 x Gigabit Ethernet: Multiple Ethernet ports support LAN, WAN, and wired-network configurations.
- 4G/5G Expansion: M.2 Key-B interface supports compatible cellular modem expansion.
- NVMe Storage Expansion: M.2 Key-M interface supports compatible NVMe SSDs for storage-intensive networking applications.
- miniPCIe Expansion: Supports compatible wireless networking modules and additional system expansion.
- Active Cooling Included: Cooling fan and heat sink help manage processor temperature during sustained network workloads.
- Metal Enclosure: Provides mechanical protection and a finished housing for the assembled router platform.
- Antennas Included: Supplied antennas support the installed wireless networking configuration.
- 12 V 5 A Power Adapter: Includes a suitable external power supply for convenient system deployment.
- Network Cable Included: Provides a wired connection for initial setup, testing, and network integration.
- Open-Source Networking Platform: Suitable for OpenWrt, firmware development, networking experiments, and custom gateway projects.
Applications
- Wi-Fi 7 routers
- OpenWrt routers
- Internet service routers
- 4G/5G gateways
- Multi-Gigabit network gateways
- Home networking systems
- Network laboratories
- Firmware development
- NAS experiments
- Home security gateways
- Home automation gateways
- Wireless access points
- Network development platforms
- VPN gateways
- Custom routing appliances
- Advanced networking projects
Package Includes:
- BPI-R4 Assembled Unit (BPI-R4 (4G) + BE14 + Cooling Fan + Heat Sink + Metal Case + Antenna)
- Antenna Adhesive Sticks (1 set of 6 sticks)
- Network Cable
- Power Adapter (12V 5A)
- Screw Accessories, Card Tray

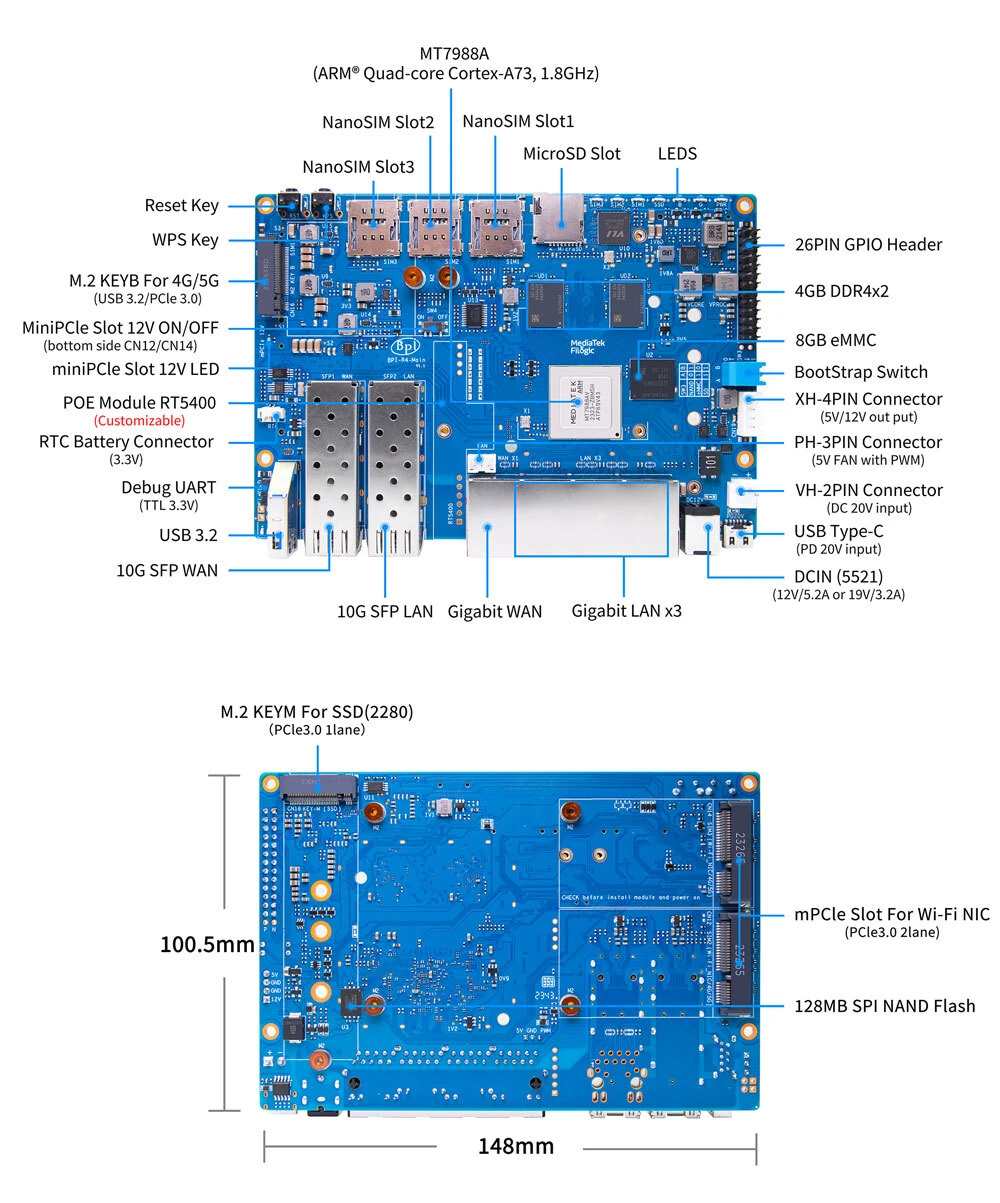

Hardware Interface
