Banana Pi BPI-R4 Pro WiFi7 Router Board Kit MediaTek MT7988A 4GB RAM, 8GB eMMC

BANANA PI

No reviews yet Write a Review
SKU:
560-BPI-R4-PRO-4E-KIT
MPN:
BPI-R4-PRO-4E-KIT

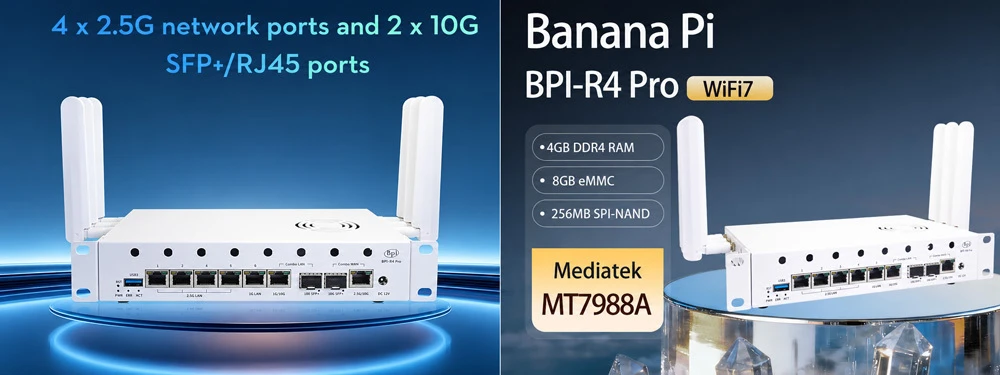

Banana Pi BPI-R4 Pro 4E Wi-Fi 7 router kit in white sheet-metal enclosure with antennas
Banana Pi BPI-R4 Pro Wi-Fi 7 router kit with MediaTek MT7988A quad-core CPU, 4GB DDR4, 8GB eMMC, 2 x 10G SFP+ and 4 x 2.5G ports. Includes BE14 module, cooling fans, metal enclosure, antennas and 12V 5A adapter. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹52,652.17 inc. GST
₹44,620.48 ex. GST

Technical Specifications

Brand:
BANANA PI
CPU:
MediaTek MT7988A Quad-core Arm Cortex-A73,1.8GHz processor
SDRAM:
4GB DDR4
On Board Storage:
MicroSD (TF) card Slot 8GB eMMC Flash 256MB SPI-NAND Flash
On board Ethernet:
1x 2.5G RJ45 WAN 2x 1G RJ45 LAN 4x 2.5G RJ45 LAN 1x 1G LAN(FPC Connector)
SFP:
1x 10G SFP+ WAN (combo with 2.5G RJ45 WAN) 1x 10G SFP+ LAN
mini PCIE Slot:
2x miniPCIe slots with PCIe3.0 2lane interface for Wi-Fi NIC
M.2 Slot:
2x M.2 M-KEY slots with PCIe3.0 1lane interface for NVME SSD 3x M.2 B-KEY slots with USB3.2 for 4G/5G Cellular Module
USB:
1x USB3.2 TypeA Connector 1x USB2.0 TypeA Connector
Debug:
1x USB TypeC on board USB-UART Debug Console
GPIO:
2x13 PIN Header for expanding application
FAN:
2x Headers with PWM-controlled for fan
RTC:
1x CR1220 connector for RTC Battery
Buttons:
Reset button, WPS button, bootstrap switch
Leds:
Power status Led and RJ45 Led
DC Power:
DC5521 12V/5.2A or 19V 3.2A USB TypeC PD20V
Size:
132mmx194mm
Weight:
210g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Banana Pi BPI-R4 Pro Wi-Fi 7 Router Board Kit with MediaTek MT7988A, 4GB DDR4 RAM, 8GB eMMC, 2 x 10G SFP+ and 4 x 2.5G Ethernet Ports

The Banana Pi BPI-R4 Pro (4E) Router Kit is a ready-to-deploy networking platform built around the MediaTek MT7988A (Filogic 880) quad-core Arm Cortex-A73 processor. It comes with 4GB DDR4 RAM, 8GB eMMC and 256MB SPI-NAND flash onboard. The kit ships fully assembled with two heatsinks, a BE14 Wi-Fi 7 module, a BE14 cooling fan, a 4010 cooling fan, a white sheet-metal enclosure and antennas, so you can move from unboxing to configuration quickly. It is an upgraded version of the BPI-R4.

The MediaTek Filogic 880 platform supports tri-band Wi-Fi 7 across the 2.4 GHz, 5 GHz and 6 GHz bands, with 320 MHz channel width, 4096-QAM, MLO, MRU and AFC. The MT7988A also includes the MediaTek Tunnel Offload Processor System (TOPS), which offloads tunnelling protocols to keep routing throughput high. With two 10G SFP+ ports, 2.5G RJ45 ports, NVMe storage support and 4G/5G cellular expansion, the board suits home gateways, custom routers, network-attached storage and communication projects.

Key Features

  • Wi-Fi 7 Platform: MediaTek Filogic 880 with tri-band support on 2.4 GHz, 5 GHz and 6 GHz, 320 MHz bandwidth, 4096-QAM, MLO, MRU and AFC.
  • Quad-Core Processor: MediaTek MT7988A with four Arm Cortex-A73 cores running at 1.8 GHz.
  • Memory and Storage: 4GB DDR4 RAM, 8GB eMMC, 256MB SPI-NAND flash and a MicroSD (TF) card slot.
  • High-Speed Wired Networking: 2 x 10G SFP+ ports (one combo with the 2.5G RJ45 WAN port) plus multiple 2.5G and 1G RJ45 ports.
  • Hardware Tunnel Offload: MediaTek TOPS processes a wide range of tunnelling protocols with low CPU load.
  • Expansion Options: 2 x mini PCIe slots (PCIe 3.0, 2-lane) for Wi-Fi cards, 2 x M.2 M-Key slots (PCIe 3.0, 1-lane) for NVMe SSDs and M.2 B-Key slots (USB 3.2) for 4G/5G cellular modules.
  • Active Cooling: Two heatsinks and two PWM-controlled fan headers, with a BE14 cooling fan and a 4010 cooling fan included.
  • Complete Kit: Assembled unit, 6 rubber antennas, Ethernet cable, 12V 5A power adapter and screw accessories.
  • Open Hardware Options: 2x13 pin GPIO header, USB Type-C debug console, CR1220 RTC battery connector and bootstrap switch.

Applications

  • Internet service router
  • Wi-Fi 7 wireless router
  • 4G/5G wireless router
  • Wireless repeater
  • Home security gateway
  • Home automation
  • NAS device
  • Network and communication applications

Kit Includes:

1. BPI-R4 Pro assembled unit (BPI-R4 Pro (4G version) (with two heatsinks) + BE14 + BE14 cooling fan + 4010 cooling fan + white sheet metal enclosure + antennas)
2. Rubber antenna sticks (1 set of 6 pieces)
3. Ethernet cable
4. Power adapter (12V 5A)
5. Screw accessories
