Name: Banana Pi BPI-M5 SBC Amlogic S905X3 4GB DDR4 16G eMMC
Brand: BANANA PI
SKU: 560-BPI-M5
Price: 17498.64 INR
Availability: InStock

Technical Specifications

Brand:

BANANA PI

CPU:

Amlogic S905X3 64-bit Quad-Core Cortex-A55 (2.0xxGHz)

GPU:

Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz)

Memory:

4 GB LPDDR4

Storage:

MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB

Network:

10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle

Video Output(s):

1 x HDMI 2.1 (up to 4K@60Hz with HDR, CEC, EDID)

Audio Output(s):

3.5mm jack and 1 x HDMI digital output

USB Ports:

USB 3.0 PORT (x4)

GPIO:

40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM

Switches:

Reset, Power and U-boot

LED:

Power Status and Activity status

Power Source:

5 volt @3A via Micro USB (TYPE C)

Size & Weight:

85x56 mm, 48g

OS:

Android and Linux

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Documents

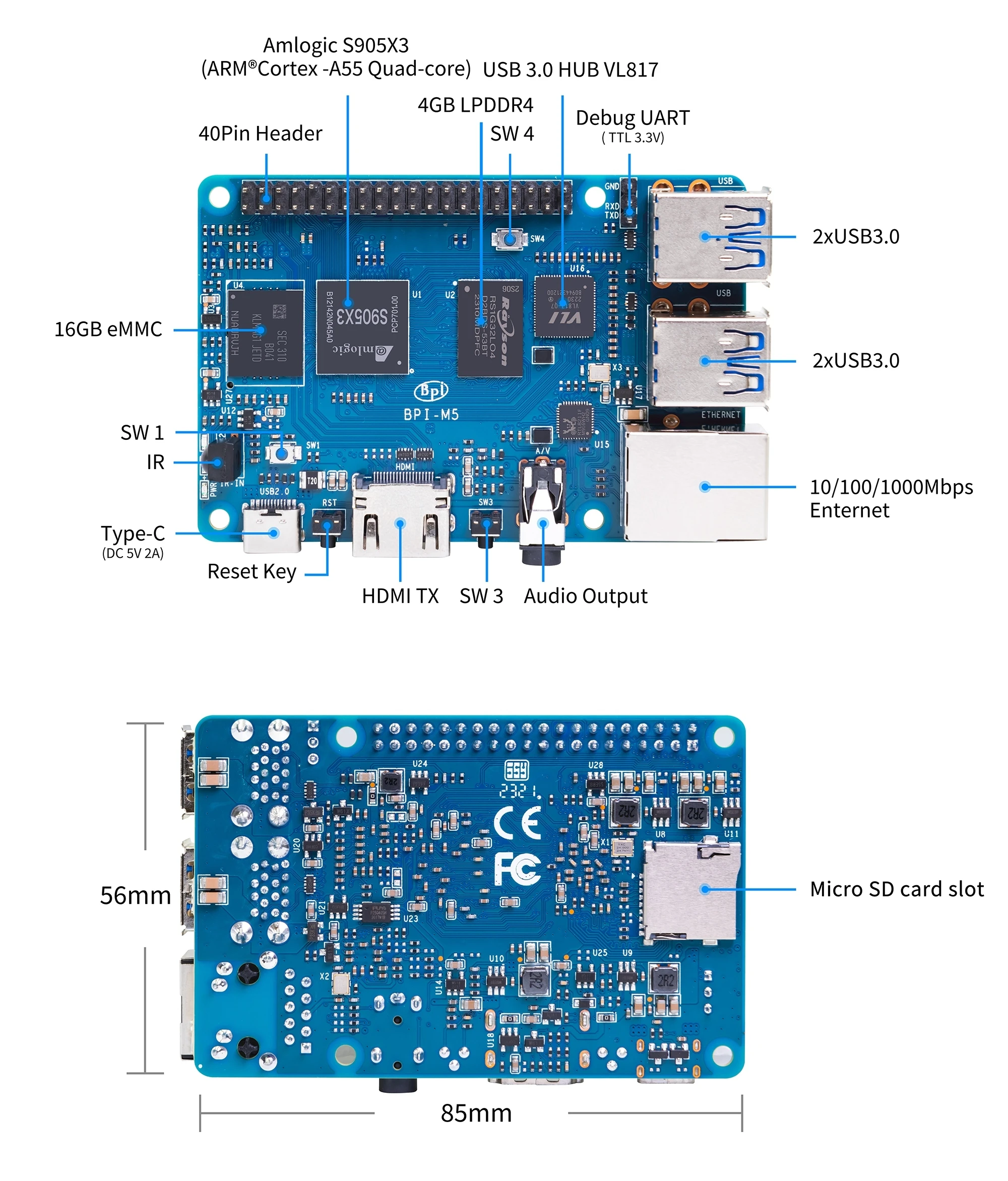

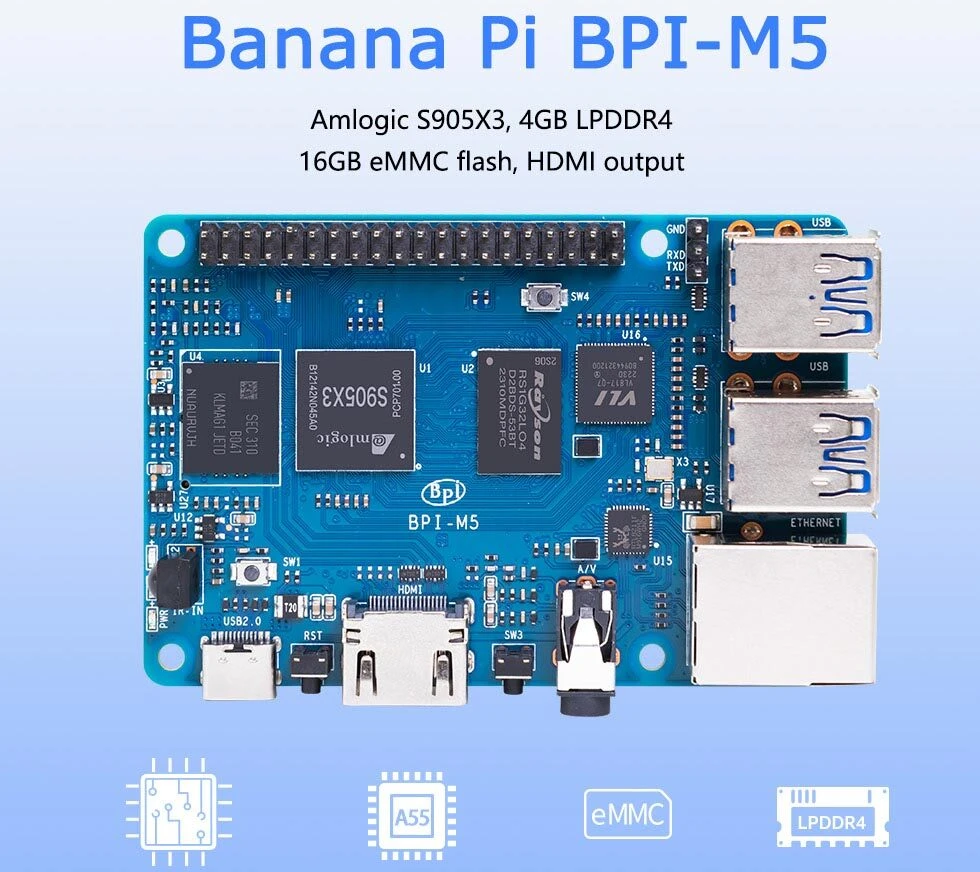

Banana Pi BPI-M5 SBC with Amlogic S905X3 Quad-Core Cortex-A55, 4 GB LPDDR4 and 16 GB eMMC

The Banana Pi BPI-M5 is a compact single-board computer based on the Amlogic S905X3 64-bit processor, featuring a quad-core Arm Cortex-A55 CPU operating at up to approximately 2.0 GHz. It integrates 4 GB LPDDR4 memory and 16 GB eMMC storage, providing a balanced hardware platform for embedded computing, development, multimedia, and network-connected applications. The onboard Mali-G31 GPU supports graphics workloads and HDMI display output for compatible monitors and displays.

For peripheral connectivity, the BPI-M5 provides 4 x USB 3.0 interfaces for high-speed storage, input devices, and other compatible accessories. A Gigabit Ethernet port supports reliable wired networking, while integrated eMMC storage provides faster and more convenient onboard storage than relying solely on removable media. With its compact SBC form factor and combination of processing, graphics, storage, and connectivity, the Banana Pi BPI-M5 is suitable for development systems, multimedia devices, IoT gateways, and general-purpose embedded projects.

Key Features

Amlogic S905X3 SoC: 64-bit processor designed for embedded computing, multimedia, and connected applications.
Quad-Core Arm Cortex-A55 CPU: Provides 4 processing cores operating at up to approximately 2.0 GHz.
Mali-G31 GPU: Integrated graphics processor supports compatible multimedia and display workloads.
4 GB LPDDR4 Memory: Provides system memory for operating systems, development tools, and multitasking.
16 GB eMMC Storage: Integrated non-volatile storage supports operating-system installation and application data.
4 x USB 3.0 Ports: Enables high-speed connectivity for compatible storage devices, peripherals, and accessories.
Gigabit Ethernet: 1 GbE network interface supports high-speed wired LAN connectivity.
HDMI Output: Provides digital video output for compatible monitors and display systems.
Integrated Storage Platform: Onboard eMMC reduces dependence on external storage for normal system operation.
Compact SBC Design: Suitable for embedded projects, prototyping, and custom computing systems.
General-Purpose Development: Supports a wide variety of networking, multimedia, and IoT applications.
