3.97-Inch Full-HD IPS-TFT HMI Display With Capacitive Touch, 32 MB Flash And Industrial-Grade Protection
This 3.97-inch HMI display combines a compact IPS-TFT LCD with a high 1920x1080 Full-HD resolution for detailed embedded interfaces. Powered by a 2K DGUS core module, it runs the DGUS II HMI platform and supports customised dashboards, system menus, control buttons, status indicators, graphs, alarms, and equipment-monitoring screens.
The industrial-grade smart LCM includes 32 MB flash memory for storing interface graphics, fonts, icons, animations, and project resources. A conformal coating helps protect the circuit board against moisture, dust, and environmental contaminants. The reliable capacitive touch panel provides responsive user input, while the onboard buzzer and real-time clock support audible alerts, scheduled functions, event logging, and timestamp display.
Key Features
- 3.97-Inch Display: Provides a compact screen size for space-constrained industrial and embedded equipment.
- 1920x1080 Resolution: Delivers Full-HD image detail for text, graphics, icons, controls, and monitoring data.
- IPS-TFT LCD: Supports clear image reproduction and consistent visibility across wide viewing angles.
- Capacitive Touch Panel: Provides responsive and reliable touch input for interactive applications.
- 2K DGUS Core Module: Integrates dedicated processing hardware for high-resolution graphical HMI operation.
- DGUS II HMI Platform: Supports the development of customised display pages and control interfaces.
- 32 MB Flash Memory: Stores interface graphics, fonts, icons, animations, and other project resources.
- Industrial-Grade Smart LCM: Designed for industrial equipment and demanding embedded control applications.
- Conformal Coating: Helps protect the onboard electronics against moisture, dust, and environmental contaminants.
- Onboard Buzzer: Provides audible alarms, operating prompts, and user-feedback signals.
- Integrated RTC: Supports clock display, event timestamps, data logging, and scheduled operations.
- Compact Full-HD Interface: Combines high pixel density with a small display format for detailed control panels.
- Integrated HMI Architecture: Combines display processing, touch control, flash storage, audio feedback, and timekeeping.
- Customisable Display Pages: Supports application-specific menus, buttons, indicators, alarms, and parameter controls.
Applications
- Industrial control panels
- Factory automation equipment
- Compact machine interfaces
- Embedded equipment dashboards
- Test and measurement instruments
- Process-monitoring systems
- Medical and laboratory equipment
- Building automation systems
- Access-control terminals
- Smart appliances
- Data-logging equipment
- Portable control and monitoring devices

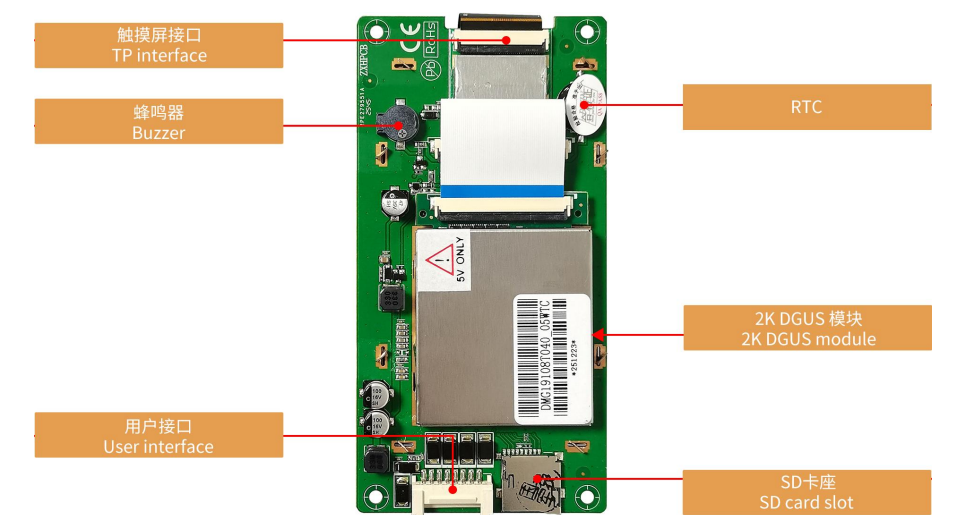

Hardware Interface Diagram
