5.0-inch 1920x1080 HMI IPS-TFT LCD Display Capacitive Touch Flash 32MB Industrial Grade

Resources:
Datasheet

5.0-Inch Full-HD IPS-TFT HMI Display With Capacitive Touch, 32 MB Flash And Industrial-Grade Protection

This 5.0-inch HMI display combines a 1920x1080 Full-HD IPS-TFT LCD with a reliable capacitive touch panel for industrial control and embedded visualisation systems. Powered by a 2K DGUS core module, it runs the DGUS II HMI platform and supports detailed graphical interfaces, high-resolution icons, system data, control menus, status indicators, and interactive operating screens.

The industrial-grade smart LCM includes 32 MB flash memory for storing interface graphics, fonts, animations, and project resources. A conformal coating helps protect the onboard electronics against moisture, dust, and environmental contaminants. The integrated buzzer provides audible feedback, while the onboard real-time clock supports time-sensitive functions such as event logging, scheduling, and timestamp display.

Key Features

• 5.0-Inch Display: Provides a compact screen format for industrial equipment, control consoles, and embedded products.
• 1920x1080 Resolution: Delivers Full-HD image quality for detailed graphics, text, icons, and interface elements.
• IPS-TFT LCD: Supports clear image reproduction and consistent visibility across wide viewing angles.
• Capacitive Touch Panel: Provides responsive and reliable touch input for interactive HMI applications.
• 2K DGUS Core Module: Integrates dedicated processing hardware for high-resolution graphical interfaces.
• DGUS II HMI Platform: Supports the development of customised control screens and embedded user interfaces.
• 32 MB Flash Memory: Stores interface graphics, fonts, icons, animations, and project resources.
• Industrial-Grade Smart LCM: Designed for integration into industrial equipment and demanding embedded systems.
• Conformal Coating: Helps protect the circuit board against moisture, dust, and environmental contaminants.
• Onboard Buzzer: Provides audible alerts, operating prompts, and touch-confirmation feedback.
• Integrated RTC: Supports clock display, scheduling, timestamping, and event-recording functions.
• High-Resolution Interface: Enables detailed dashboards, equipment diagrams, graphs, and data-monitoring screens.
• Integrated HMI Architecture: Combines display processing, touch control, memory, audio feedback, and timekeeping functions.
• Customisable Display Pages: Supports application-specific buttons, menus, indicators, alarms, and parameter controls.

Applications

• Industrial control panels
• Factory automation equipment
• Machine-control interfaces
• Process-monitoring systems
• Embedded equipment dashboards
• Test and measurement instruments
• Building automation systems
• Laboratory equipment
• Smart appliances
• Access-control terminals
• Medical equipment interfaces
• Data-logging and event-monitoring systems

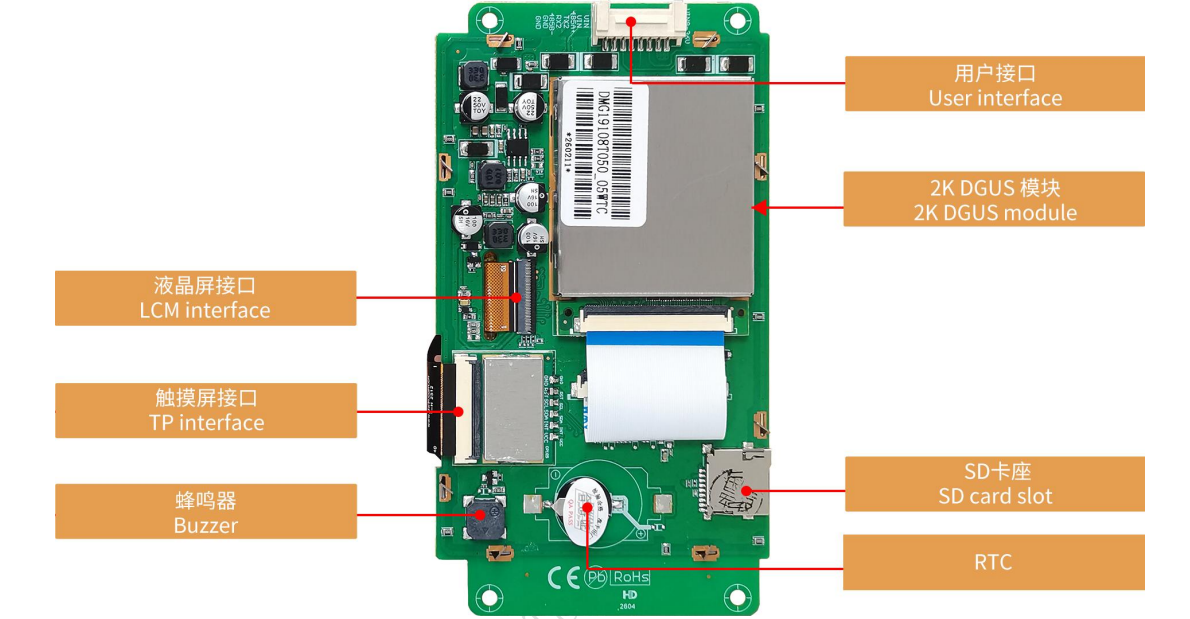

Hardware Interface Diagram
