6.2-inch 480x1280 HMI IPS-TFT LCD Display, Capacitive Touch Flash 16MB Commercial Grade

Resources:
Datasheet

6.2-inch Portrait IPS-TFT HMI Display With In-Cell Capacitive Touch And 16 MB Flash Memory

This 6.2-inch HMI display combines a 480x1280 portrait-format IPS-TFT LCD with an integrated in-cell capacitive touch screen for embedded control and interactive user-interface applications. Powered by the T5L2 ASIC, it runs the DGUS II HMI platform and supports customised menus, system data, status indicators, control buttons, alarms, and vertical monitoring dashboards.

The commercial-grade smart LCM includes 16 MB flash memory for storing interface graphics, fonts, icons, and other project resources. Its narrow portrait layout is well-suited for equipment panels, access-control terminals, smart appliances, building-automation controllers, and other installations where horizontal mounting space is limited. The in-cell touch structure integrates touch functionality within the display assembly, supporting a slimmer construction and responsive operation.

Key Features

• 6.2-Inch Display: Provides an elongated screen format for narrow control panels and embedded equipment.
• 480x1280 Resolution: Supports detailed portrait-oriented menus, indicators, controls, and monitoring information.
• IPS-TFT LCD: Provides clear image reproduction and consistent visibility across wide viewing angles.
• In-Cell Capacitive Touch: Integrates the touch layer into the display structure for responsive input and a thinner assembly.
• T5L2 ASIC: Provides dedicated processing for graphical HMI functions and interface operation.
• DGUS II HMI Platform: Supports the development of customised display pages and interactive control interfaces.
• 16 MB Flash Memory: Stores interface graphics, fonts, icons, and project resources.
• Commercial-Grade Smart LCM: Designed for commercial embedded products and equipment-control applications.
• Portrait Display Format: Well-suited for vertical dashboards, narrow equipment panels, and compact enclosures.
• Integrated HMI Architecture: Combines display processing, touch input, and onboard memory within one module.
• Customisable Interface: Supports application-specific menus, buttons, indicators, alarms, and parameter controls.
• Space-Efficient Design: Provides a tall display area where installation width is limited.

Applications

• Commercial control panels
• Building-automation systems
• Access-control terminals
• Smart appliance interfaces
• Embedded equipment dashboards
• Machine-status displays
• Instrumentation panels
• Home-automation controllers
• Medical and laboratory equipment
• Kiosk control interfaces
• Sensor-monitoring systems
• Vertical HMI development projects

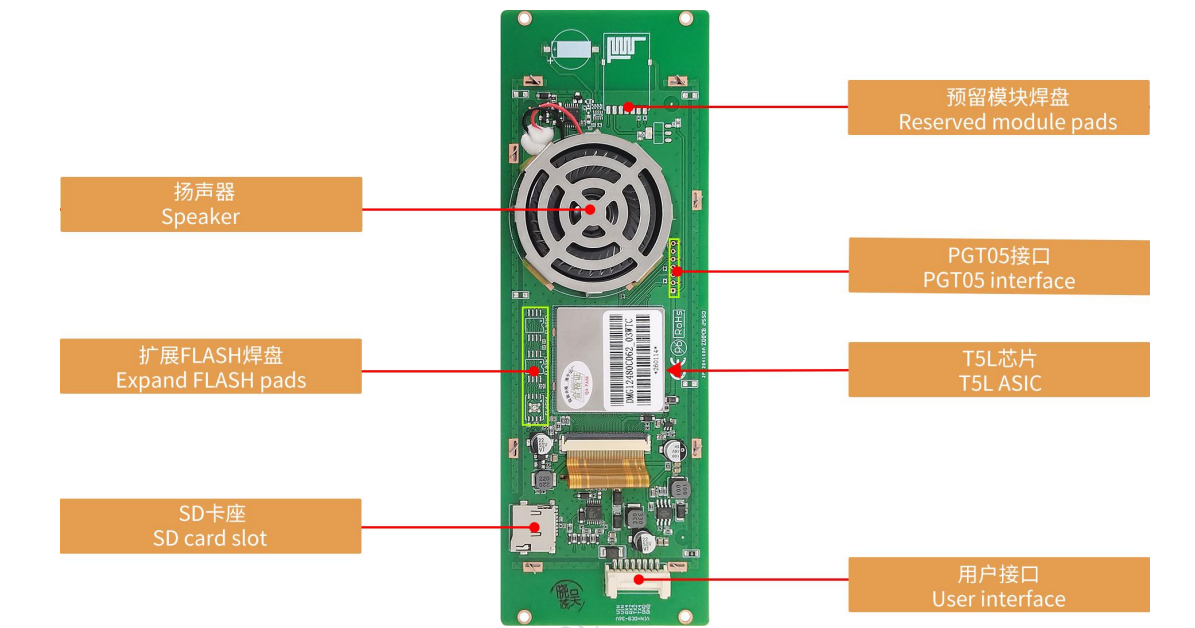

Hardware Interface Diagram
