4.1-Inch Square HMI Display with 720 x 720 IPS Panel and INCELL Capacitive Touch
The DWIN DMG72720C041_03WTC is a commercial-grade 4.1-inch HMI TFT LCD designed for embedded control panels, equipment interfaces, smart devices, and interactive monitoring systems. Built around DWIN's T5L1 ASIC, the module combines a 720 x 720 square IPS display with 16.7 million colors and a wide 85°/85°/85°/85° viewing angle, providing clear visual output for graphical user interfaces.
An integrated INCELL capacitive touch panel supports point-touch and drag operations while maintaining more than 95% light transmittance. The display communicates with the host through a UART serial interface and supports project downloading through an SD card or online serial connection. DWIN's DGUS development environment allows developers to create graphical interfaces using the DGUS II or TA instruction-set development architecture. With a commercial operating temperature range of -20°C to +70°C, 400-nit brightness, and a compact square display area, the module is suitable for embedded HMI and control applications.
Key Features
- 4.1-inch square IPS TFT LCD
- 720 x 720 pixel resolution
- 24-bit color depth
- Displays up to 16.7 million colors
- DWIN T5L1 ASIC
- Commercial-grade HMI display
- INCELL capacitive touch panel
- Supports point-touch and drag operation
- Touch-panel light transmittance greater than 95%
- Touch life greater than 1,000,000 operations
- 400-nit display brightness
- Wide 85°/85°/85°/85° viewing angle
- 74 x 74 mm active display area
- UART serial communication
- 10-pin 1.0 mm connector for power and serial communication
- Supports project downloading through SD card
- Supports online serial-port downloading
- Typical serial download rate of 12 KByte/s
- Supports DGUS II development
- Supports TA instruction-set development
- Integrated buzzer
- Interface for optional Wi-Fi module
- Commercial operating temperature range from -20 C to +70 C
Applications
- Industrial and commercial HMI panels
- Embedded equipment interfaces
- Smart home control panels
- Building automation systems
- Instrumentation displays
- Machine-control interfaces
- IoT control terminals
- Measurement equipment
- Data-monitoring panels
- Access-control systems
- Interactive embedded devices
- Appliance control interfaces
- Automation equipment prototypes

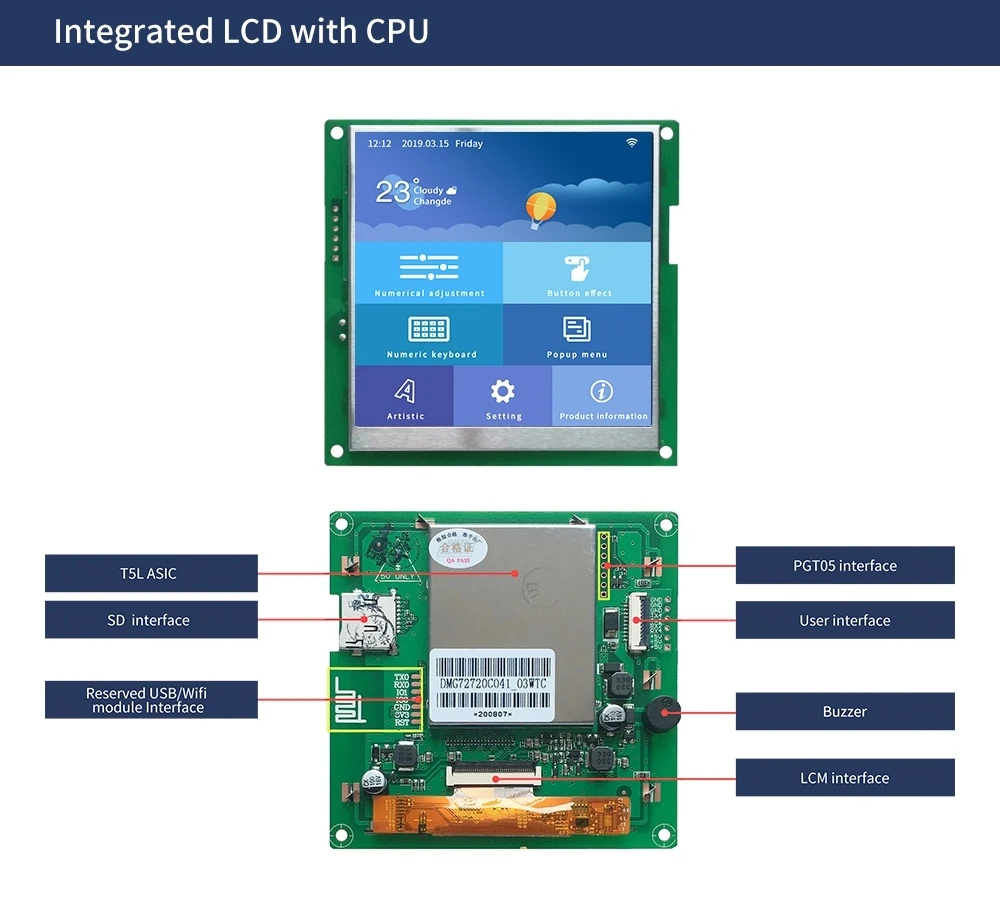

Hardware Interface Diagram
