ST-3025-C001 High-Speed Brushless Smart Servo with 20 kgcm Torque, 170 RPM speed, and a 12-bit magnetic encoder
The ST-3025-C001 is a high-speed TTL serial-bus smart servo designed for industrial equipment, robotics, automated mechanisms, and motion-control applications requiring fast and precise rotary positioning. Operating at 12V, it delivers up to 20 kgcm stall torque with a no-load speed of 0.059 sec/60deg or 170 RPM. Its 12-bit magnetic encoder provides 4096-position resolution across 360deg for accurate closed-loop angular control.
The servo combines a full aluminium-alloy case, steel gearbox, brushless motor, and ball bearings for reliable mechanical performance during repeated operation. It supports 0-360deg position control, continuous multi-turn rotation, and step operating modes. Configurable acceleration enables smooth start and stop movement, while feedback for position, speed, voltage, current, temperature, and load allows real-time monitoring and supports overload and over-current protection.
Key Features
- 20 kg.cm Stall Torque: Delivers up to 20 kg.cm peak stall torque at 12V for robotic and industrial motion-control systems.
- 170 RPM High-Speed Operation: Provides a no-load speed of 0.059 sec/60deg or approximately 170 RPM at 12V.
- 360deg Position Control: Supports programmable positioning throughout a complete 0-360deg rotation.
- Multi-Turn Operation: Supports continuous multi-turn rotation for applications requiring extended rotary movement.
- TTL Serial-Bus Control: Uses digital packet communication for command, configuration, and feedback.
- 12-Bit Magnetic Encoder: Provides 4096-position resolution across 360deg for precise angular sensing.
- Brushless Motor: Provides efficient, responsive operation with reduced mechanical wear compared with brushed motor designs.
- Steel Gearbox: Uses steel gears for dependable torque transmission and mechanical durability.
- Aluminium-Alloy Case: Provides a rigid enclosure with effective heat dissipation and mechanical protection.
- Double-Shaft Construction: Provides output support on both sides of the same controlled rotational axis for robotic-joint integration.
- Ball Bearings: Support smooth shaft rotation and help reduce mechanical friction.
- Acceleration Control: Supports configurable slow-start and slow-stop movement.
- One-Key Centre Setting: Allows convenient configuration of the servo middle position.
- Multiple Operating Modes: Supports position, continuous-rotation, and step operating modes.
- Real-Time Feedback: Reports position, speed, voltage, current, temperature, and load parameters.
- Overload Protection: Load monitoring helps protect the servo against excessive mechanical loading.
- Over-Current Protection: Current monitoring supports protection during excessive electrical load conditions.
- Addressable Servo IDs: Supports ID values from 0 to 253 for multi-servo serial-bus systems.
- High-Speed Communication: Supports communication speeds from 38400bps to 1Mbps.
- 25T Output Spline: Supports compatible 25-tooth servo horns and mechanical linkages.
Applications
- Industrial robotics
- Robotic arms
- Robot joints
- Humanoid robots
- Quadruped robots
- Industrial automation equipment
- High-speed actuator mechanisms
- Pan-and-tilt systems
- Automated positioning systems
- Mobile robotics
- AGV systems
- Research and development platforms
- Multi-servo robotic mechanisms
- Embedded motion-control systems

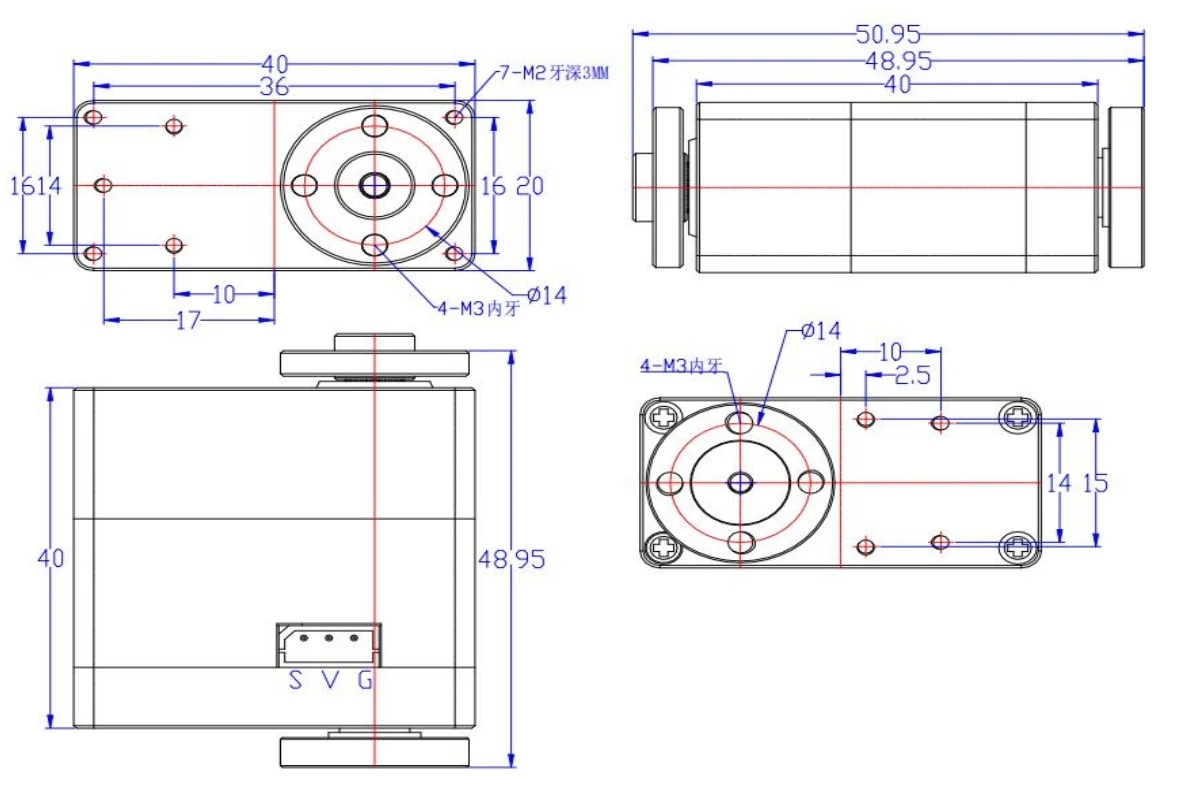

Diagram
