HL-3915-C001 - 12V 14kg.cm 360deg Metal Gear Dual-Axis TTL Serial Bus Servo Motor

Resources:
Datasheet

HL-3915-C001 High-Torque TTL Smart Servo With 14.2 kgcm Torque, 12-Bit Magnetic Encoder And Dual-Shaft Design

The HL-3915-C001 is a high-torque TTL serial-bus smart servo designed for industrial equipment, robotics, automated mechanisms, and other applications requiring precise rotary control with real-time feedback. At 12V, the servo delivers up to 14.2 kg.cm stall torque with a no-load speed of 0.1 sec/60deg or approximately 100 RPM. Its 12-bit magnetic encoder provides 4096-position resolution across 360deg for accurate closed-loop position control.

The servo combines an aluminium housing, metal gearbox, coreless motor, and ball bearings with a FEETECH-developed TTL control system. It supports 0-360deg position control, multi-turn continuous operation, step mode, and constant-torque operation. Position, speed, voltage, current, temperature, and load feedback enable detailed system monitoring, while configurable acceleration supports smooth start and stop control. The dual-shaft construction is well-suited for robotic joints and mechanisms requiring mechanical support from both sides of the actuator.

Key Features

• 14.2 kg.cm Stall Torque: Delivers up to 14.2 kg.cm stall torque at 12V for demanding robotic and industrial mechanisms.
• 360deg Position Control: Provides programmable positioning throughout a complete 0-360deg rotation.
• Multi-Turn Operation: Supports continuous multi-turn rotation for wheel, joint, and extended rotary-motion applications.
• TTL Serial-Bus Control: Uses digital packet communication for command, configuration, and feedback.
• 12-Bit Magnetic Encoder: Provides 4096-position resolution across 360deg for accurate angular sensing.
• 0.088deg Resolution: Delivers approximately 0.088deg electronic position resolution per encoder step.
• Coreless Motor: Provides responsive acceleration and smooth operation for dynamic motion-control systems.
• Metal Gearbox: Supports reliable torque transmission in higher-load applications.
• Aluminium Case: Provides a rigid enclosure with effective thermal and mechanical performance.
• Dual-Shaft Construction: Supports mechanical integration where loads or linkages are mounted across both sides of the servo.
• Ball Bearings: Help reduce output-shaft friction and support smooth mechanical movement.
• Constant-Torque Mode: Allows a target torque value to be configured and maintained by the servo.
• Smooth Acceleration Control: Supports configurable acceleration for slow start and slow stop movement.
• One-Key Centre Setting: Enables convenient configuration of the servo middle position.
• Real-Time Feedback: Reports position, speed, input voltage, current, temperature, and load parameters.
• Overload Protection: Load feedback allows protection against excessive mechanical loading.
• Over-Current Protection: Current monitoring supports protection against excessive current conditions.
• PID Control: Uses closed-loop PID control for accurate and stable motion.
• Addressable Servo IDs: Supports IDs from 0 to 253 for multi-servo bus installations.
• High-Speed Communication: Supports serial communication speeds from 38400bps to 1Mbps.

Applications

• Industrial robotics
• Robotic arms
• Robot joints
• Humanoid robots
• Industrial automation equipment
• Pan-and-tilt mechanisms
• Automated positioning systems
• Mobile robotics
• Multi-axis robotic mechanisms
• Research and development platforms
• Educational robotics
• High-torque actuator systems
• Continuous-rotation mechanisms
• Smart motion-control projects

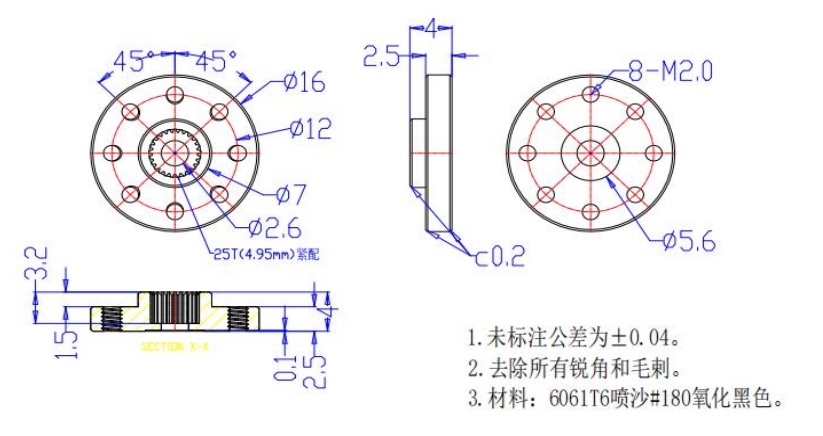

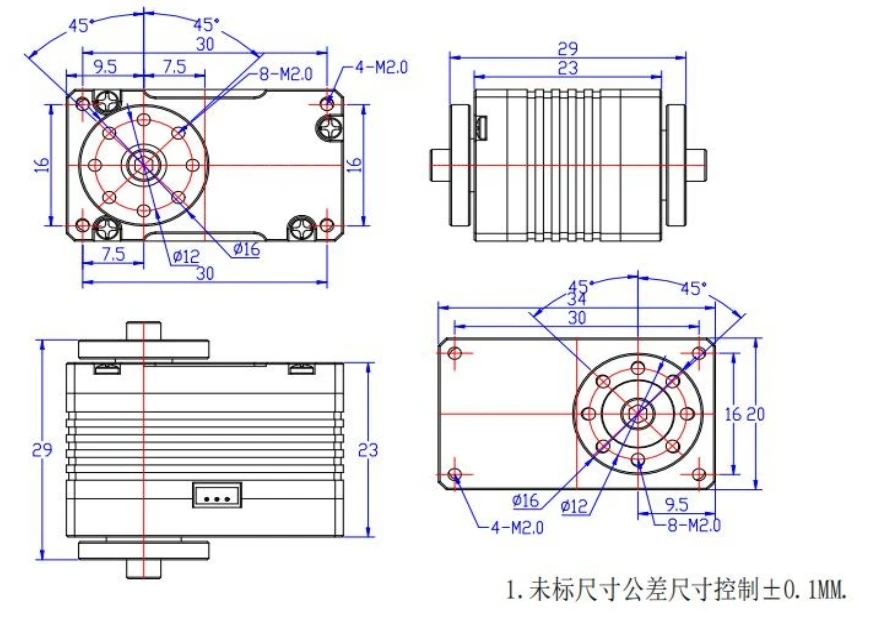

Diagram
