ST-3046-C001 High-Torque TTL Smart Servo With 40 kg.cm Torque, Steel Gears And 12-Bit Magnetic Encoder
The ST-3046-C001 is a high-torque TTL serial-bus smart servo designed for industrial robotics, robotic joints, automation equipment, and other demanding motion-control applications. Operating from 6V to 7.4V, it delivers up to 40 kg.cm peak stall torque at 7.4V with a no-load speed of 0.22 sec/60deg. Its 12-bit magnetic encoder provides 4096-position resolution across 360deg, enabling precise closed-loop angular positioning and continuous rotary operation.
The servo combines a full aluminium-alloy case, steel gearbox, coreless motor, and ball bearings for reliable mechanical performance under demanding loads. It supports 0-360deg position control, continuous multi-turn rotation, and step operating modes. Configurable acceleration enables smooth start and stop movement, while feedback for position, speed, input voltage, current, temperature, and load supports real-time system monitoring and protection against overload and over-current conditions.
Key Features
- 40 kg.cm Stall Torque: Delivers up to 40 kg.cm peak stall torque at 7.4V for high-load robotic and industrial mechanisms.
- 360deg Position Control: Supports programmable positioning throughout a complete 0-360deg rotation.
- Multi-Turn Operation: Provides continuous multi-turn rotation for applications requiring extended rotary movement.
- TTL Serial-Bus Control: Uses digital packet communication for command, configuration, and feedback.
- 12-Bit Magnetic Encoder: Provides 4096-position resolution across 360deg for accurate angular sensing.
- Steel Gearbox: Uses high-strength steel gears for reliable torque transmission under demanding loads.
- Coreless Motor: Provides responsive operation and smooth motion for robotic and automation systems.
- Aluminium-Alloy Case: Offers a rigid housing with good mechanical strength and heat dissipation.
- Single-Axis Design: Provides one controlled output axis for robotic joints, linkages, and rotary mechanisms.
- Ball Bearings: Support smooth output-shaft rotation and help reduce mechanical friction.
- Acceleration Control: Enables configurable slow-start and slow-stop movement.
- One-Key Centre Setting: Supports convenient configuration of the servo middle position.
- Multiple Operating Modes: Supports position, continuous-rotation, and step operating modes.
- Real-Time Feedback: Reports position, speed, voltage, current, temperature, and load parameters.
- Overload Protection: Uses load monitoring to help protect the servo against excessive mechanical loading.
- Over-Current Protection: Current monitoring supports protection against excessive electrical load.
- Addressable Servo IDs: Supports ID values from 0 to 253 for multi-servo serial-bus networks.
- High-Speed Communication: Supports communication speeds from 38400bps to 1Mbps.
- 25T Output Spline: Uses a 25T output spline with 5.9mm outside diameter for compatible servo horns.
Applications
- Industrial robotics
- Robotic arms
- Robot joints
- Humanoid robots
- Quadruped robots
- Industrial automation equipment
- Automated positioning systems
- High-torque actuator mechanisms
- Pan-and-tilt systems
- Mobile robotics
- Research and development platforms
- Multi-servo robotic systems
- Material-handling mechanisms
- Smart motion-control systems

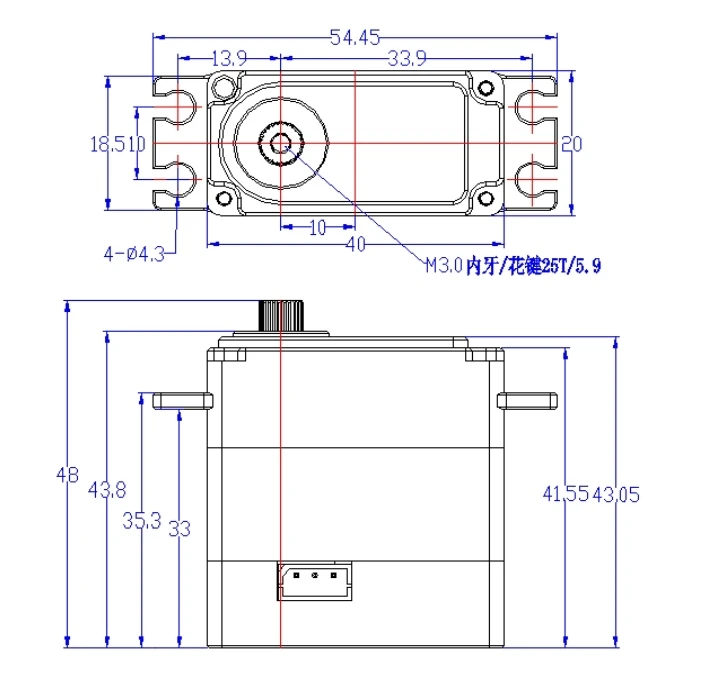

Daigram
