ST-3025-C002 High-Torque Brushless Smart Servo With 40 kg.cm Torque, 360deg Control and Magnetic Encoder
The ST-3025-C002 is a high-torque TTL serial-bus smart servo designed for industrial robotics, robotic joints, automation equipment, AGVs, and other demanding motion-control applications. Operating at 12V, it delivers up to 40 kg.cm stall torque with a no-load speed of 0.117 sec/60deg or approximately 85 RPM. Its 12-bit magnetic encoder provides 4096-position resolution across 360deg for accurate closed-loop angular control.
The servo combines an aluminium case, steel gearbox, brushless motor, and ball bearings for reliable operation under repeated mechanical loads. It supports 0-360deg position control, continuous-rotation modes, step operation, and multi-turn positioning. TTL serial-bus communication also provides real-time feedback for position, speed, input voltage, current, temperature, and load, enabling system monitoring and electronic protection functions.
Key Features
- 40 kg.cm Stall Torque: Delivers up to 40 kg.cm peak stall torque at 12V for high-load robotic mechanisms.
- 85 RPM Maximum Speed: Provides a no-load speed of 0.117 sec/60deg at 12V.
- 360deg Position Control: Supports programmable angular positioning across a complete 360deg rotation.
- Multi-Turn Operation: Supports extended rotary positioning for applications requiring more than 1 revolution.
- Brushless Motor: Provides efficient operation, responsive control, and reduced brush-related wear.
- Steel Gearbox: Uses steel gears for dependable torque transmission and mechanical durability.
- Aluminium Case: Provides a rigid enclosure with effective mechanical protection and heat dissipation.
- 12-Bit Magnetic Encoder: Provides 4096-position resolution across 360deg.
- 0.088deg Resolution: Offers approximately 0.088deg electronic position resolution per encoder step.
- TTL Serial-Bus Control: Uses digital packet communication for command, configuration, and feedback.
- Half-Duplex Communication: Supports asynchronous half-duplex serial communication.
- Real-Time Feedback: Reports load, position, speed, input voltage, current, and temperature.
- Multiple Operating Modes: Supports position, closed-loop speed, open-loop speed, and step modes.
- Electronic Protection: Supports overload, over-current, over-voltage, and over-temperature protection.
- Addressable Servo IDs: Supports ID values from 0 to 253 for multi-servo systems.
- High-Speed Data Communication: Supports communication rates from 38400bps to 1Mbps.
- Double-Shaft Construction: Provides mechanical output support on both sides of the same controlled rotational axis.
- 25T Output Spline: Uses a 25T output spline with 5.9mm outside diameter for compatible mechanical attachments.
- Ball Bearings: Support smooth shaft rotation and reduce mechanical friction.
- Compact Construction: Measures 40 x 20 x 40mm for integration into robotic assemblies.
Applications
- Industrial robotics
- Robotic arms
- Robot joints
- Humanoid robots
- Quadruped robots
- Automated guided vehicles
- Industrial automation
- High-torque actuator systems
- Pan-and-tilt mechanisms
- Automated positioning systems
- Mobile robotics
- Research and development platforms
- Multi-servo robotic systems
- Embedded motion-control projects

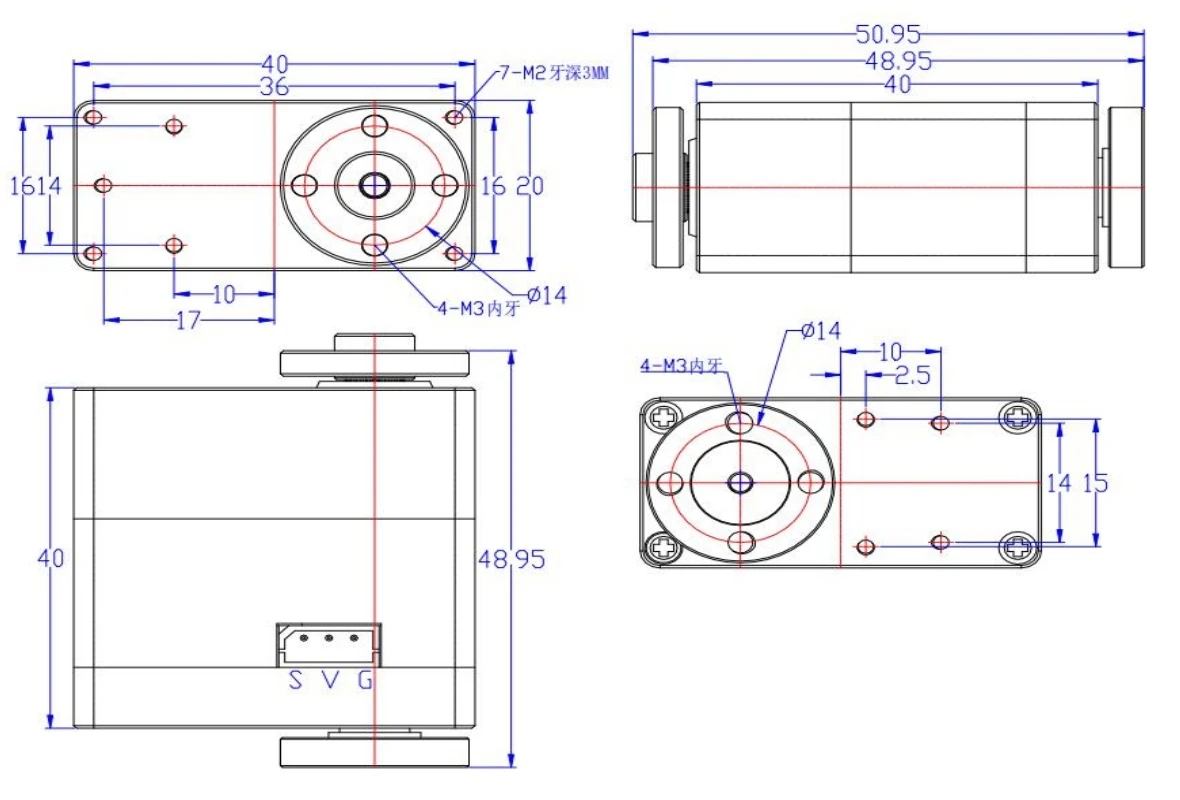

Diagram
