M5Stack AtomS3 Lite ESP32S3 Dev Kit

M5Stack

No reviews yet Write a Review
SKU:
558-C124
MPN:
C124
M5Stack C124 AtomS3-Lite ESP32-S3 development board with USB Type-C, Grove interface, RGB LED, IR transmitter, and GPIO expansion
M5Stack C124 AtomS3-Lite is a compact ESP32-S3FN8 controller featuring a 240 MHz dual-core processor, 8MB Flash, 512KB SRAM, 2.4 GHz Wi-Fi, Bluetooth 5 LE, USB Type-C, RGB LED, IR transmitter, Grove interface, and 6 exposed GPIOs. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹1,266.29 inc. GST
₹1,073.13 ex. GST
23 people looking at this.

Technical Specifications

Brand:
M5Stack
SoC:
ESP32-S3FN8 @ Xtensa® 32-bit LX7 dual-core processor, clock frequency 240MHz
Flash:
8MB
RGB:
WS2812C-2020
DC-DC:
SY8089
Operating Temp:
0 ~ 40C
Power Voltage:
5V
Power Method:
Type-C
Output Voltage:
3.3V
IO Interfacex6:
G5/G6/G7/G8/G38/G39
Product Size:
24.0x24.0x9.5mm
Product Weight:
5.3g
Package Size:
85.0x65.0x12.2mm
Gross Weight:
11.0g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Documents

Compact ESP32-S3 IoT Controller with Wi-Fi, Bluetooth LE, USB-C, IR, and Grove Expansion

The M5Stack C124 AtomS3-Lite is a compact programmable controller built around the ESP32-S3FN8 SoC for embedded IoT, automation, and smart-device development. Its dual-core Xtensa 32-bit LX7 processor operates at up to 240 MHz and is paired with 8MB SPI Flash and 512KB SRAM. The ESP32-S3 platform provides 2.4 GHz Wi-Fi and Bluetooth 5 Low Energy connectivity, while the integrated 3D antenna supports compact wireless product designs without requiring an external antenna.

Despite its 24.0 × 24.0 × 9.5 mm footprint, AtomS3-Lite integrates a programmable RGB LED, user button, infrared transmitter, HY2.0-4P Grove interface, USB Type-C port, and six exposed GPIO connections. An onboard SY8089 regulator converts the 5V input to 3.3V for the controller circuitry. The USB Type-C interface supports firmware programming, serial communication, and native USB functionality, while the bottom expansion pins and rear M2 mounting hole simplify integration into custom embedded systems.

Key Features

  • ESP32-S3 Controller: ESP32-S3FN8 with dual-core Xtensa 32-bit LX7 processor
  • Clock Frequency: Operates at up to 240 MHz
  • Flash Memory: 8MB SPI Flash
  • Internal SRAM: 512KB
  • Wireless Connectivity: 2.4 GHz Wi-Fi and Bluetooth 5 Low Energy
  • Built-In Antenna: Integrated 2.4 GHz 3D antenna
  • USB Interface: USB Type-C for power, programming, serial communication, and USB OTG
  • Power Regulation: SY8089 onboard 5V-to-3.3V DC-DC converter
  • RGB Indicator: Programmable WS2812C-2020 RGB LED
  • User Input: Integrated programmable button
  • Infrared Output: Built-in IR transmitter for remote-control applications
  • Grove Expansion: HY2.0-4P interface with 5V, GND, and 2 GPIO signals
  • GPIO Expansion: 6 GPIO connections exposed through bottom female headers
  • Mounting: Rear M2 screw hole for mechanical installation
  • Compact Design: 24.0 × 24.0 × 9.5 mm ATOM-series form factor
  • Development Platforms: UiFlow2, Arduino IDE, ESP-IDF, and PlatformIO

Applications

  • IoT sensor nodes
  • Embedded controllers
  • Smart home devices
  • Wireless automation systems
  • Bluetooth LE devices
  • Infrared remote-control projects
  • Grove sensor integration
  • USB-connected embedded devices
  • Compact robotics controllers
  • Smart appliance prototypes
  • Industrial monitoring nodes
  • Educational ESP32-S3 development
  • Custom embedded hardware

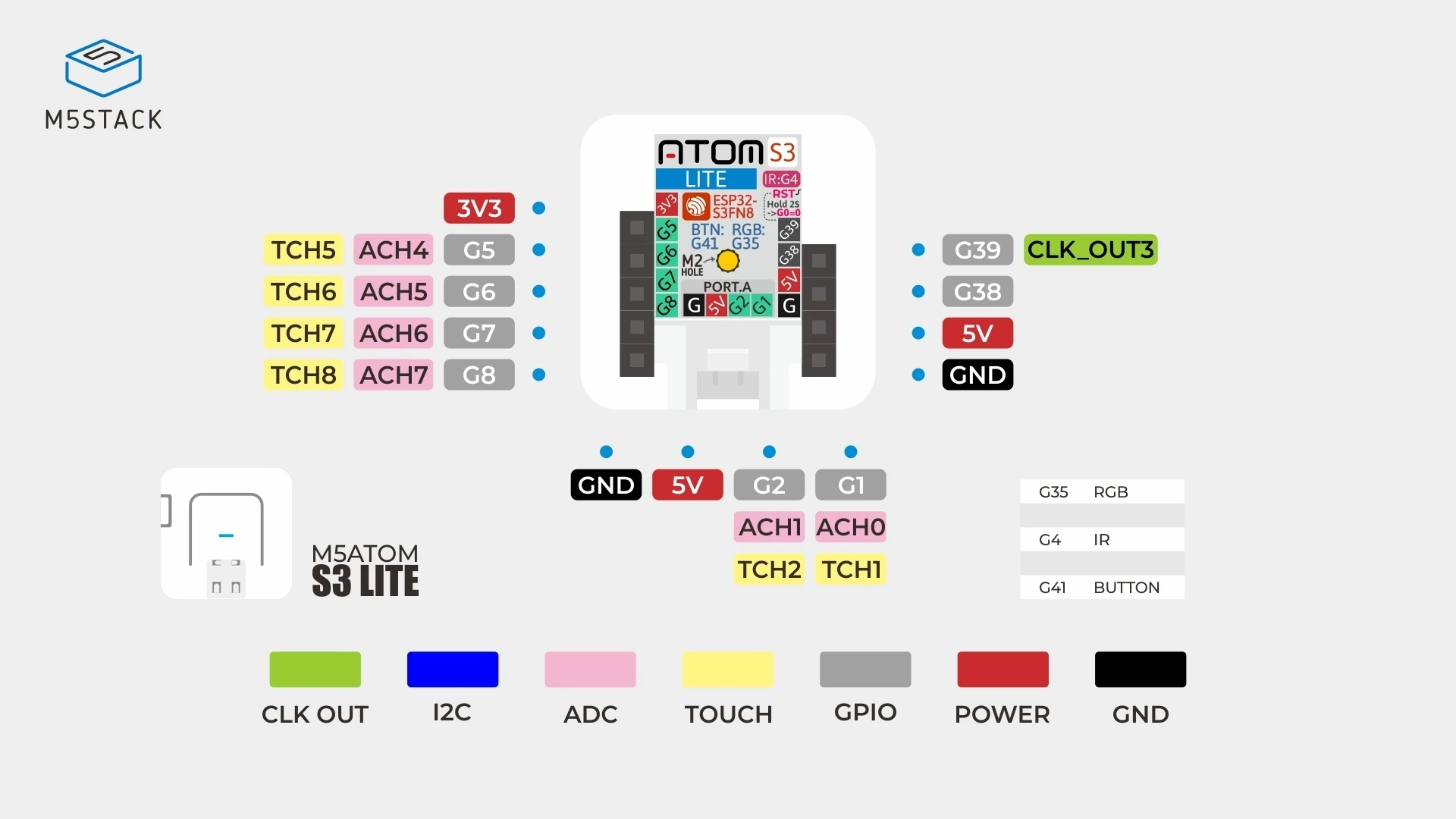

PinMap

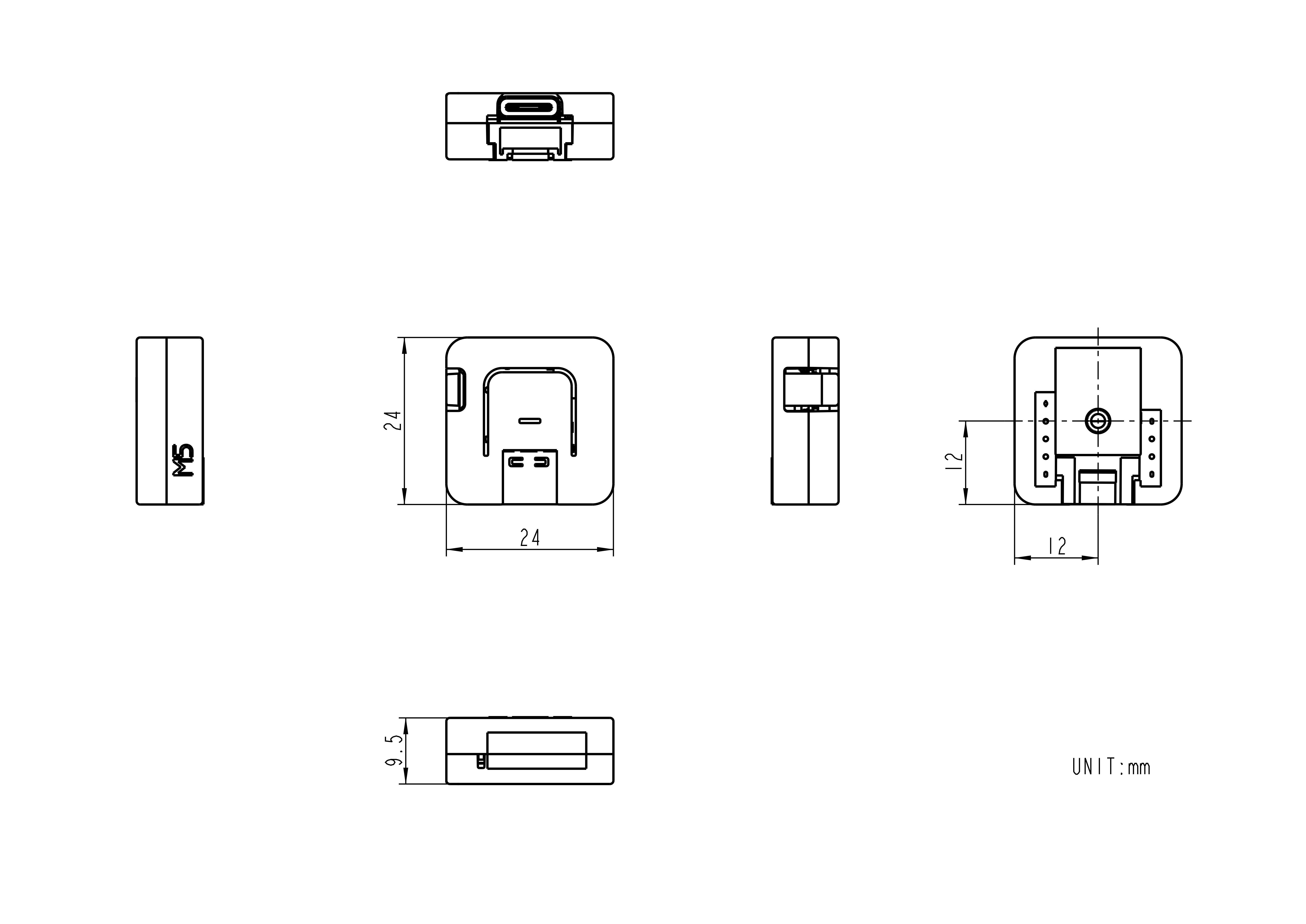

Model Size

Package Includes:

  • 1xAtomS3-Lite
