Name: M5Stack ATOMS3R ESP32-S3 Development Kit with 0.85-inch Screen (8MB PSRAM)
Brand: M5Stack
SKU: 558-C126
Price: 2952.43 INR
Availability: InStock

Technical Specifications

Brand:

M5Stack

SoC:

ESP32-S3-PICO-1-N8R8 @ Xtensa 32-bit LX7 dual-core processor, clock frequency 240MHz

USB:

USB OTG, USB Serial/JTAG

Flash:

8MB

PSRAM:

8MB Octal

Wi-Fi:

2.4 GHz Wi-Fi

TFT Driver:

ST7735

Color IPS Resolution:

128x128

6-Axis IMU (BMI270):

Accuracy: 0.05 % (Accel), 0.05 °/s (Gyro) I2C Address: 0x68

3-Axis Geomagnetic Sensor (BMM150):

Accuracy: 0.3 uT Mounted on BMI270, magnetometer data obtained via BMI270

Infrared:

180 deg FOV, transmission distance 12.46 m (unobstructed)

Sleep Current:

GPIO-5V supply: 5 V @ 11.63 uA Grove-5V supply: 5 V @ 10.75 uA USB-5V supply: 5 V @ 92.50 uA (incl. PD resistor loss)

Bottom GPIO:

G5 / G6 / G7 / G8 / G38 / G39

Operating Temperature:

0 ~ 40 C

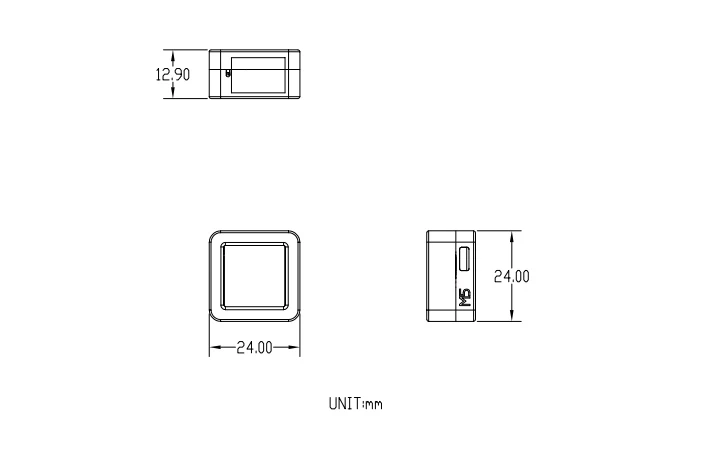

Product Size:

24.0x24.0x12.9 mm

Product Weight:

6.8 g

Package Size:

85.0x65.0x15.5 mm

Gross Weight:

12.5 g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Documents

Compact ESP32-S3 IoT Development Kit with 0.85-Inch IPS Display, 9-Axis Motion Sensing and 8 MB PSRAM

The M5Stack ATOMS3R Development Kit is a compact IoT programmable controller based on the ESP32-S3-PICO-1-N8R8 SoC. It combines 8 MB Flash and 8 MB PSRAM with integrated Wi-Fi connectivity, providing memory and processing resources for embedded control, sensing, and connected-device applications. A 0.85-inch colour IPS display with a programmable button underneath provides a convenient interface for status information, menus and direct user interaction.

For motion and orientation sensing, the ATOMS3R integrates a BMI270 6-axis IMU and BMM150 3-axis geomagnetic sensor, creating a 9-axis sensing system suitable for attitude detection and movement tracking. It also supports infrared transmission control and incorporates an enhanced 3D antenna for improved wireless stability. USB Type-C supports power input and firmware downloading, while the HY2.0-4P interface and 6 GPIO plus power pins provide flexible expansion. Measuring only 24.0 x 24.0 x 12.9 mm, ATOMS3R is well-suited for compact smart devices, IoT nodes and motion-aware embedded systems.

Key Features

ESP32-S3-PICO-1-N8R8 SoC: Provides the main processing platform for IoT, sensing and embedded-control applications.
8 MB Flash: Offers onboard storage for firmware, programs and application resources.
8 MB PSRAM: Provides additional working memory for graphical interfaces, sensor processing and connected applications.
0.85-Inch IPS Display: Integrated colour screen supports status information, graphical interfaces and system feedback.
9-Axis Sensor System: Combines a BMI270 6-axis IMU with a BMM150 3-axis geomagnetic sensor.
BMI270 IMU: Provides 3-axis acceleration and 3-axis angular-rate sensing for motion and attitude applications.
BMM150 Magnetometer: Provides 3-axis geomagnetic sensing for orientation and directional applications.
Programmable Button: Display-integrated button enables direct user input and configurable control functions.
Infrared Transmission: Supports IR control for compatible infrared-enabled devices.
Enhanced 3D Antenna: Improved antenna design supports more stable wireless communication.
USB Type-C: Provides power input and firmware downloading through a single connector.
HY2.0-4P Expansion: Supports connection to compatible M5Stack Units and external peripherals.
GPIO Expansion: Provides 6 GPIO pins plus power connections for custom hardware integration.
Integrated Power Circuit: Onboard 5 V-to-3.3 V power circuitry supports internal system operation.
Compact Form Factor: Measures only 24.0 x 24.0 x 12.9 mm for space-constrained embedded applications.
Multiple Development Platforms: Supports UIFlow2, Arduino IDE, ESP-IDF, and PlatformIO.
