Technical Specifications

Brand:

DYP

Product Type:

Ultrasonic Liquid-Level Sensor

Series:

DYP-L07

Sensing Method:

Ultrasonic

Probe Type:

Closed Waterproof Bistatic Probe

Waterproof Rating:

IP67

Measuring Range:

1.5 cm - 300 cm

Blind Zone:

1.5 cm (Minimum Blind-Zone 0.8 cm)

Ultrasonic Frequency:

40 kHz

Resolution:

Millimetre-Level

Output Interface Options:

UART Automatic-Output, UART Control-Output, RS485, IIC, PWM Pulse-Width Output

Working Voltage:

3.3 V - 5 V DC

Measurement Method:

Non-Contact Ultrasonic

Working Current:

Up To 8 mA

Adjustable Farthest Range:

30-300 cm

Standby Current:

Less Than 5 uA

Measurement Accuracy:

+- 1 Plus S x 0.3% cm

Operating Temperature:

-15 C ~ +60 C

Housing Material:

PVC

Compliance:

RoHS

Anti-Static Standard:

IEC61000-4-2

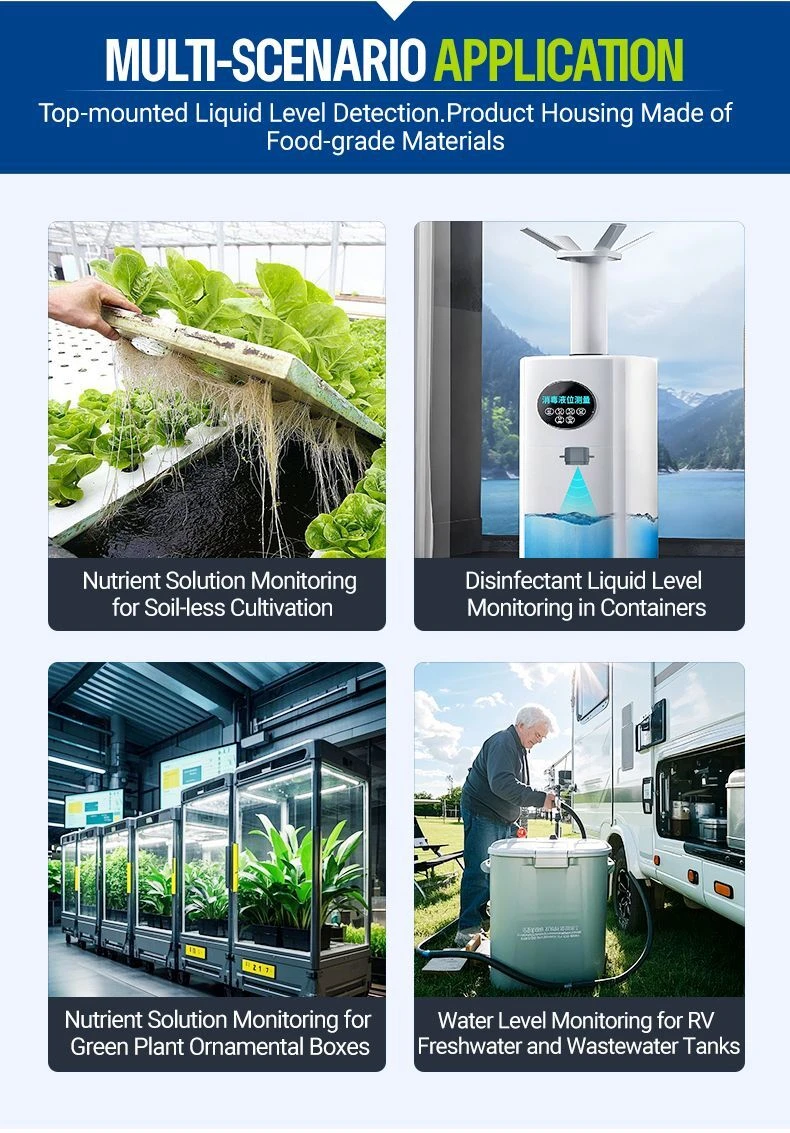

Applications:

Liquid-Tank Level Detection, Nutrient-Solution Monitoring, Disinfectant-Level Monitoring

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources

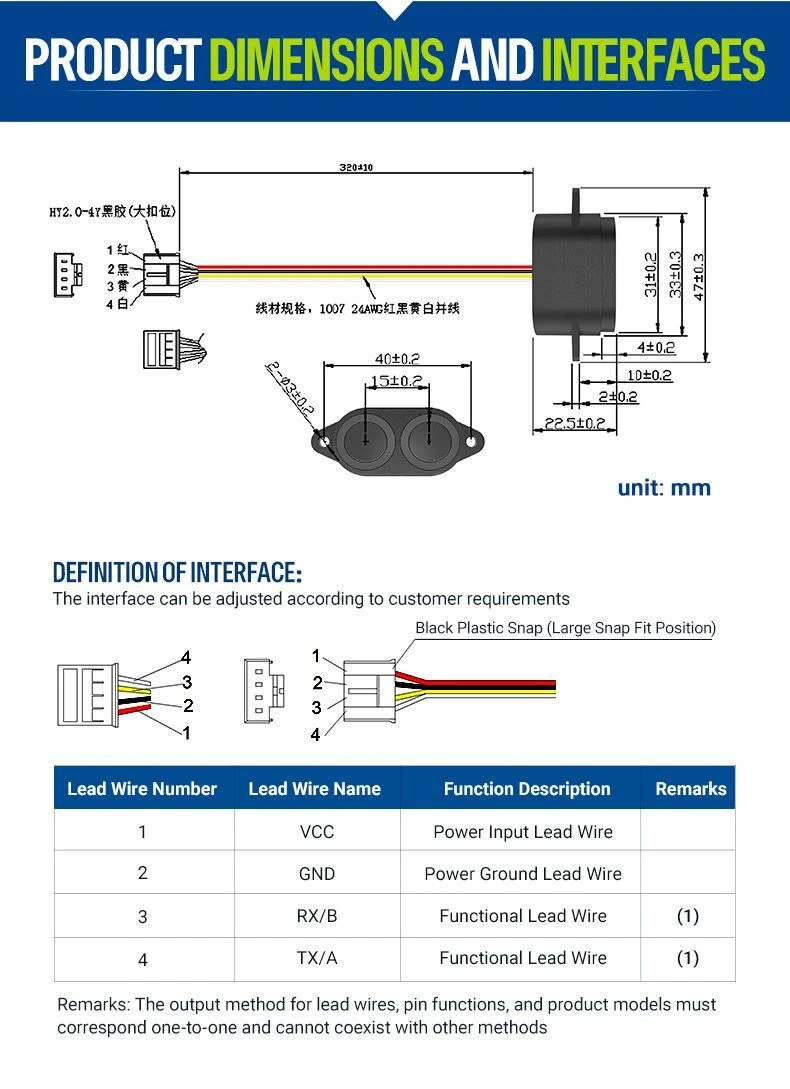

L07 Datasheet

DYP Sensor L07 IP67 Waterproof Liquid-Tank Level Ultrasonic Sensor 1.5-300 cm For Top-Mounted Liquid-Level Detection

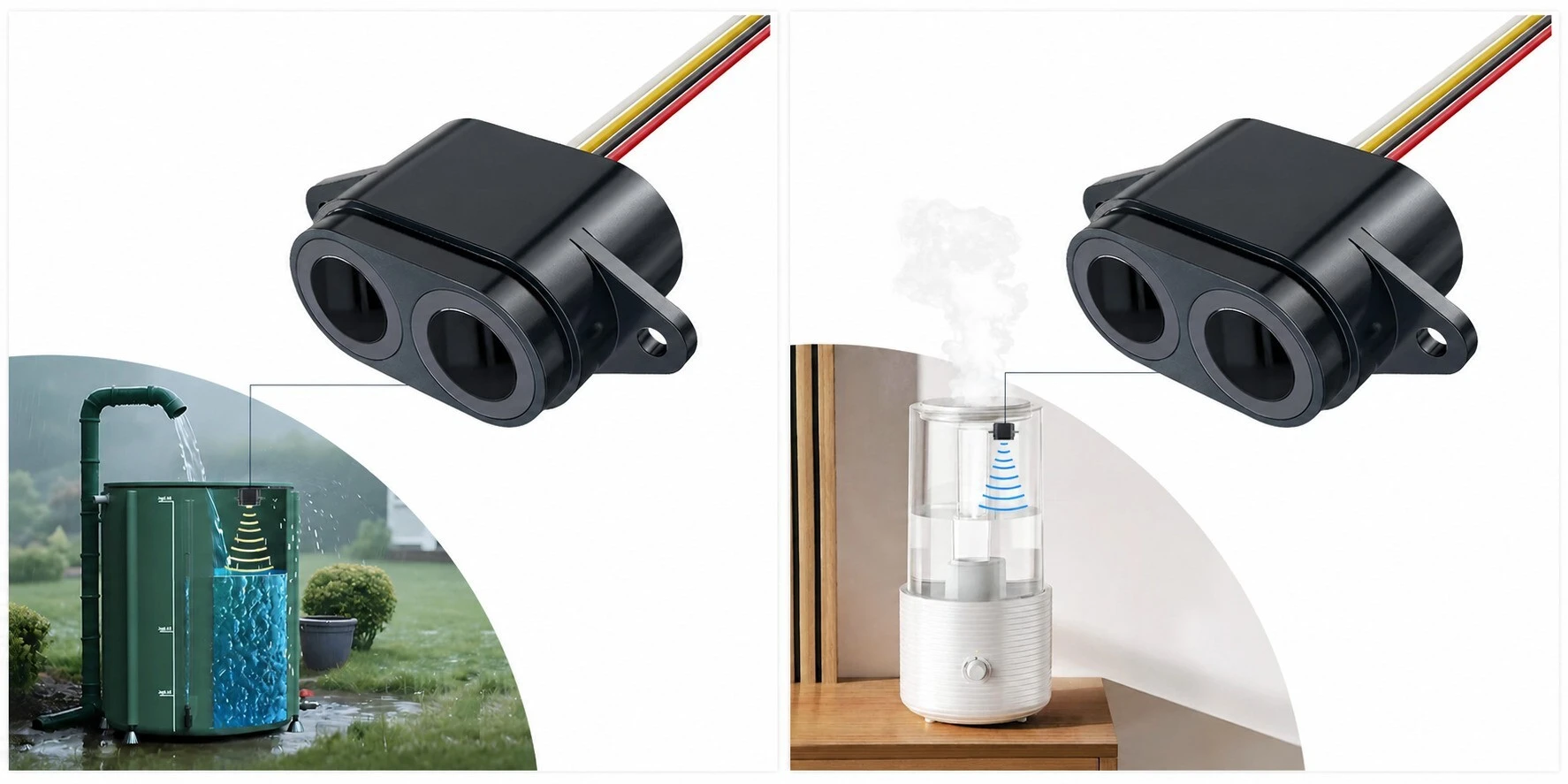

The DYP Sensor L07 IP67 waterproof liquid-tank level ultrasonic sensor is designed for accurate non-contact liquid-level detection in compact tanks, reservoirs, plant boxes, air-disinfector boxes, and soilless-cultivation systems. With a 1.5 cm to 300 cm measurement range and millimetre-level resolution, it is well-suited for applications where a short blind-zone, stable readings, and flexible installation are required.

The L07-module is developed to address common issues in ultrasonic liquid-level sensing, such as large blind-areas, wide measurement angles, long response times, and limited installation adaptability. Its top-mounted design supports reliable liquid-level monitoring while reducing contact with liquids, making it useful for nutrient-solution monitoring, disinfectant-level monitoring, and water-tank level detection.

This ultrasonic liquid-level sensor supports multiple output options, including UART automatic-output, UART control-output, RS485, IIC, and PWM pulse-width output. It also supports adjustable signal levels, 6 algorithm modes, 5-level noise-reduction settings, and a fast response time of up to 13 ms. The IP67 waterproof structure, wide 3.3 V to 12 V supply range, and -25°C to +65°C operating temperature make it suitable for demanding indoor and outdoor liquid-level applications.

Key Features

Short Blind-Zone Design: 1.5 cm standard blind-zone supports accurate measurement in compact liquid tanks.
Wide Measuring Range: Measures liquid levels from 1.5 cm to 300 cm for short-to-medium range applications.
Multiple Output Interfaces: Supports UART automatic-output, UART control-output, RS485, IIC, and PWM pulse-width output.
Wide Voltage Supply: Operates from 3.3 V to 12 V for flexible integration with embedded systems and controllers.
Fast Response Time: Provides ms-level response with data output time as fast as 13 ms.
Adjustable Range Setting: Farthest range can be set to any value from 30 cm to 300 cm through instructions.

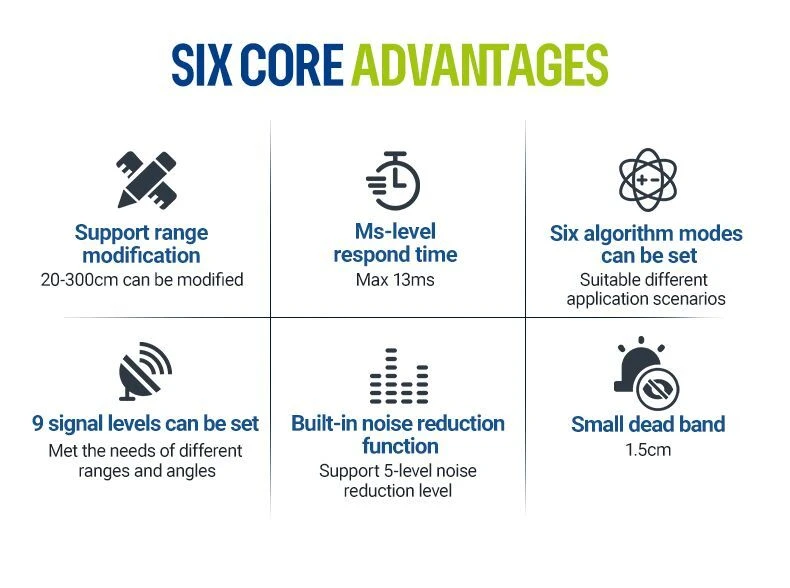

Configurable Signal Levels: 9 signal levels allow adjustment for different measurement ranges and beam-angle needs.
Built-In Algorithm Modes: 6 algorithm modes support liquid-level sloshing filtration, small-step filtration, high-sensitivity detection, and other application-specific settings.
Noise-Reduction Support: Built-in 5-level noise-reduction setting is suitable for battery power, USB power, switching power, and noisy power-supply environments.

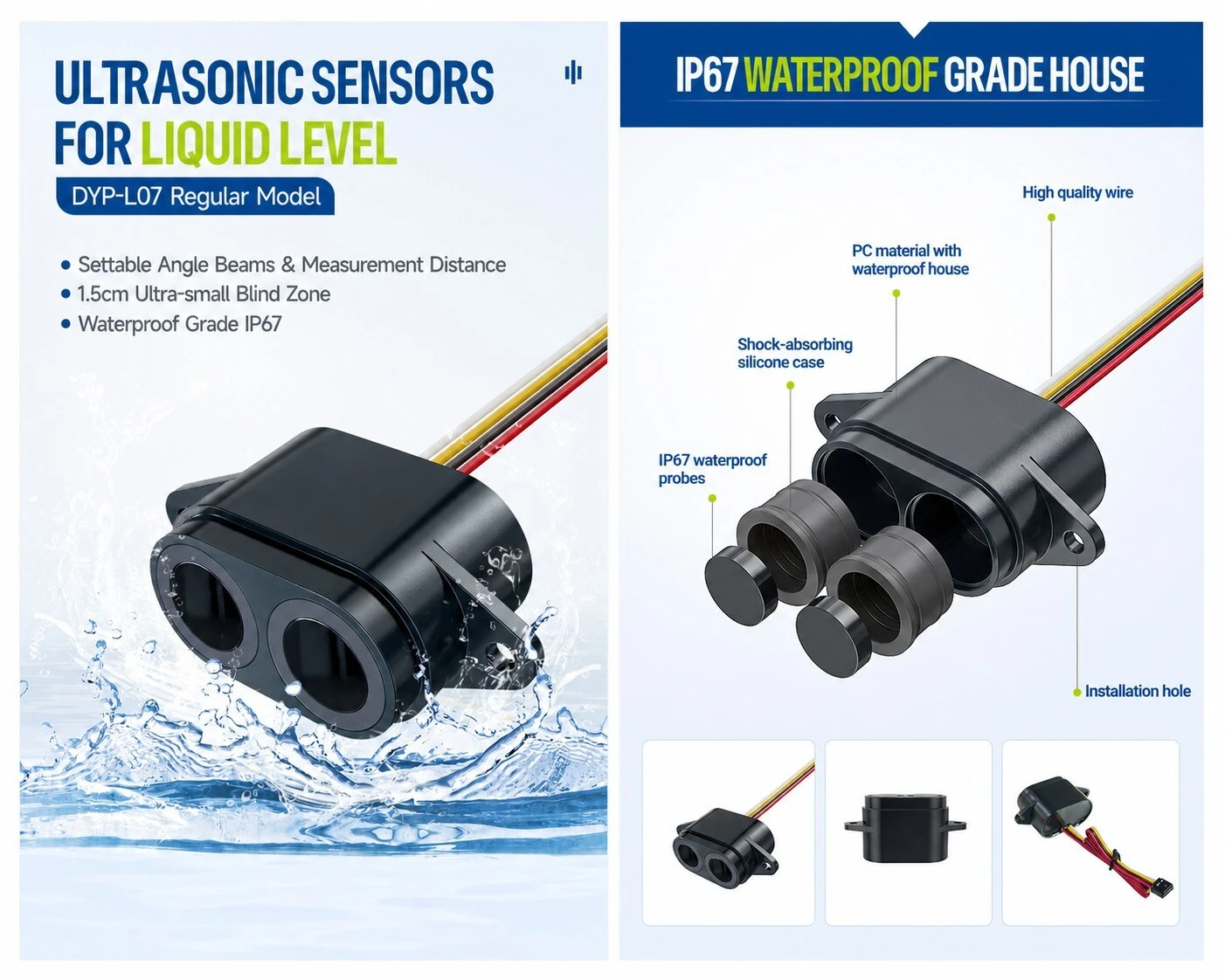

Waterproof Housing: IP67-rated structure supports reliable operation in wet and humid liquid-level monitoring conditions.
Strong Installation Adaptability: Top-mounted design enables simple, stable, and reliable installation.
Wide Temperature Range: Operates from -25°C to +65°C for varied working environments.
ESD Protection: Input and output interfaces include electrostatic-protection devices compliant with IEC61000-4-2.
Model Options: Available in L07A conventional series, L07B food-grade series, and L07C anti-nutrient-solution corrosion series.
