U02 IP67 Waterproof Non-contact Ultrasonic Fuel Level Sensor 5~100cm

DYP

No reviews yet Write a Review
SKU:
514-DYP-U022MVW-V1.1
MPN:
DYP-U022MVW-V1.1

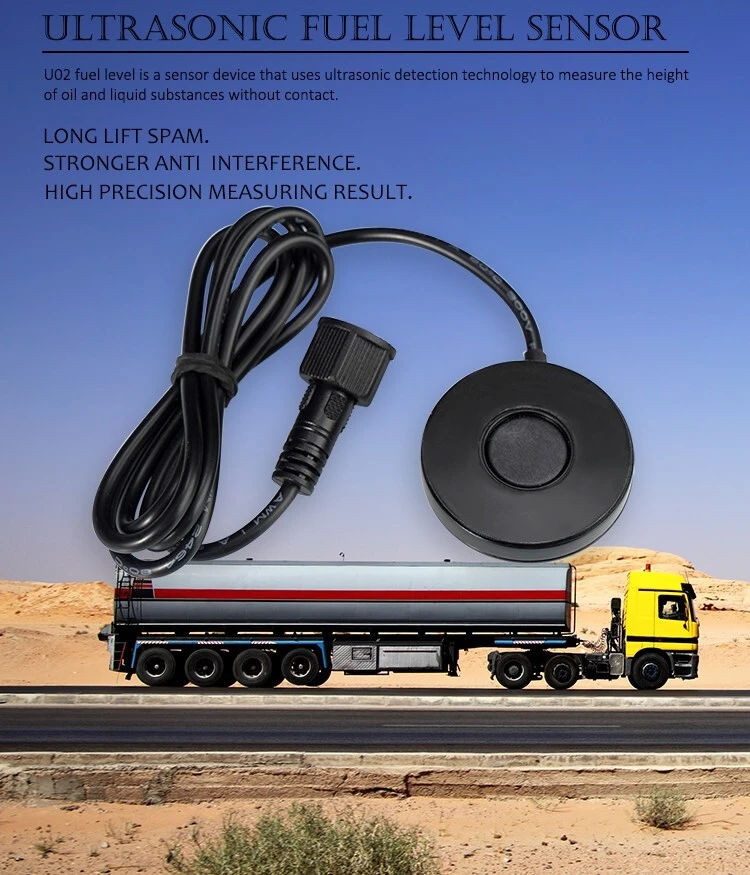

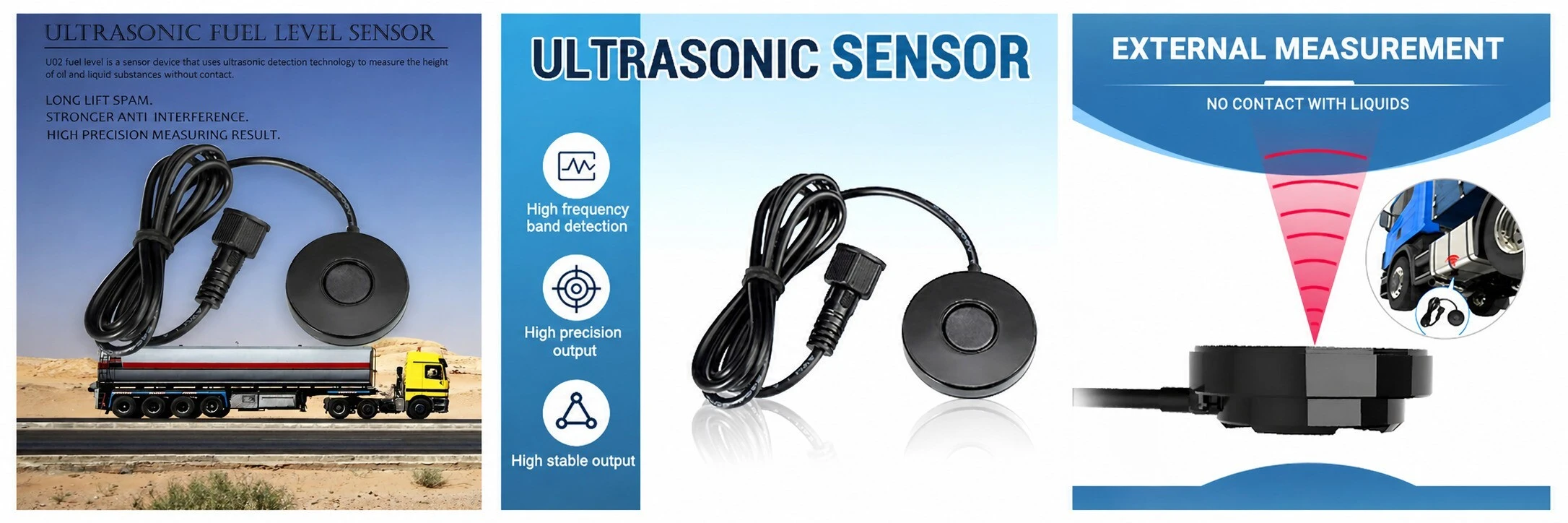

DYP U02 IP67 non-contact ultrasonic liquid level sensor with round metal housing and mounting bracket
Quantity
Unit Price (ex. GST)
1 - 9
₹ 8,704.28
10 - 49
₹ 8,269.07
50 or above
₹ 7,833.85
DYP U02 is an IP67-rated, non-contact ultrasonic liquid level sensor with 1 mm resolution, built-in temperature compensation, and RS485/RS232/0–5 V output. Suitable for fuel, water, and chemical tanks. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹10,271.05 inc. GST
₹8,704.28 ex. GST
9 people looking at this.

Technical Specifications

Brand:
DYP
Product Type:
Ultrasonic Fuel-Level Sensor
Series:
DYP-U02
Sensing Method:
Non-Contact Ultrasonic
Probe Type:
Closed Waterproof Bistatic Probe
Waterproof Rating:
IP67
Measuring Range:
5 cm - 100 cm
Blind Zone:
5 cm
Ultrasonic Frequency:
2 MHz
Resolution:
1 mm
Output Interface Options:
RS485, RS232, 0–5 V DC analog
Operating Voltage:
12-48 V DC
Installation Method:
Built-In Magnet And Metal Fixing-Bracket
Housing Structure:
Round Metal Housing
Temperature Compensation:
Supported
Standby Current:
< 25 mA
Measurement Accuracy:
+- 1 5mm + S x 0.3% cm
Operating Temperature:
-15 C ~ +60 C
Housing Material:
Round Metal Housing
Compliance:
RoHS
Anti-Static Standard:
IEC61000-4-2
Applications:
Smart fuel-level monitoring and control systems
Recommended Container Materials:
Stainless Steel, Iron, Glass, Ceramic, Non-Foamed Plastic
Container Wall Thickness:
0.6 mm - 5 mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources

DYP U02 IP67 Waterproof Non-Contact Ultrasonic Liquid Level Sensor With 1 mm Resolution and Multiple Output Interfaces - 5 cm to 100 cm Range

The DYP U02 is a non-contact ultrasonic liquid level sensor designed for accurate measurement of oil, water, and other liquid media in enclosed containers. It operates without any direct contact with the liquid, making it well-suited for corrosive, flammable, or hygienic applications where probe contamination is a concern.

The sensor is housed in a compact, round metal enclosure with internal circuit-potting treatment, meeting IP67 waterproof standards. A built-in strong magnet allows easy attachment to iron containers, and the included metal fixing bracket ensures firm, tool-free installation.

Real-time waveform feature analysis enables the U02 to identify the optimal installation position automatically. Built-in automatic temperature compensation and temperature-deviation correction ensure stable readings across varying ambient conditions.

Key Features

  • Resolution: 1 mm measurement resolution for precise level monitoring

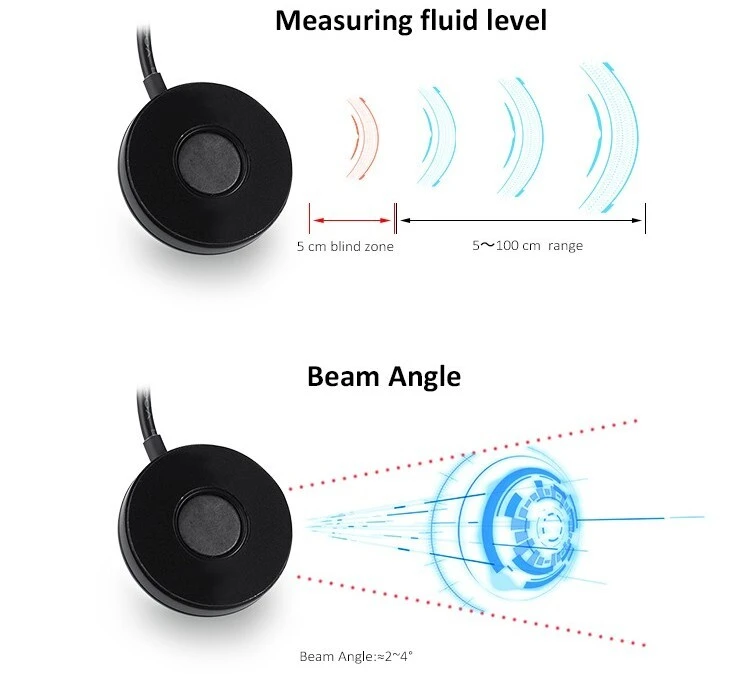

  • Measurement range: 5 cm to 100 cm with a 5 cm dead band
  • Output interfaces: RS485, RS232, and 0–5 V DC analog voltage — flexible interface options for varied integration needs
  • Temperature compensation: Built-in automatic temperature compensation and deviation correction for stable output from −15 C to +60 C
  • Ultrasonic frequency: 2.0 MHz for high solid-state penetration, compatible with metal, plastic, and composite containers
  • IP67 waterproof: Sealed metal housing with internal circuit-potting treatment
  • Easy installation: Built-in strong magnet for iron containers; special metal fixing bracket included
  • Network-ready: Compatible with networked equipment for remote monitoring and management via RS485
  • Compliance: CE and RoHS certified

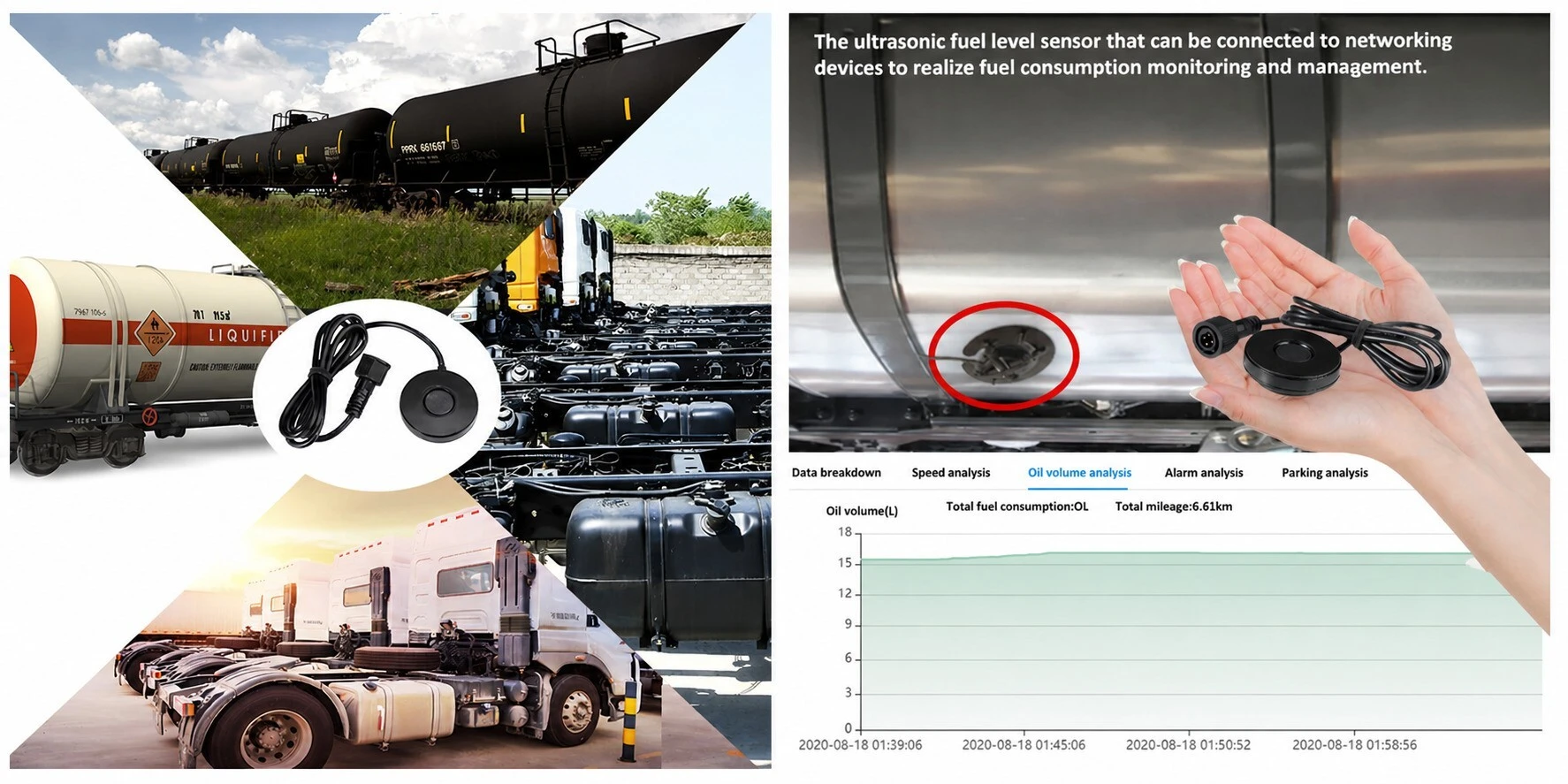

Applications

  • Vehicle fuel-tank oil-level monitoring
  • Industrial storage-tank liquid-level measurement
  • Container water-level monitoring
  • Container liquid-gas level detection
