L02 IP67 Waterproof Ultrasonic Liquid Level Sensor 2~200cm

DYP

No reviews yet Write a Review
SKU:
514-DYP-L023MUW-V1.0
MPN:
DYP-L023MUW-V1.0
DYP Sensor L02 IP67 waterproof ultrasonic liquid-level sensor for non-contact closed-container monitoring from 2 cm to 200 cm
Quantity
Unit Price (ex. GST)
1 - 9
₹ 1,590.22
10 - 49
₹ 1,510.71
50 or above
₹ 1,431.20
DYP Sensor L02 IP67 ultrasonic liquid-level sensor for non-contact closed-container monitoring from 2 cm to 200 cm with 1 mm resolution UART switch PNP and NPN output options View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹1,876.46 inc. GST
₹1,590.22 ex. GST
7 people looking at this.

Technical Specifications

Brand:
DYP
Product Type:
Ultrasonic Liquid-Level Sensor
Series:
DYP-L02
Sensing Method:
Non-Contact Ultrasonic
Probe Type:
Closed Waterproof Bistatic Probe
Waterproof Rating:
IP67
Measuring Range:
2 cm - 200 cm
Blind Zone:
2 cm
Ultrasonic Frequency:
2 MHz
Resolution:
1 mm
Output Interface Options:
UART Automatic, UART Controlled, Switch, PNP NPN
Operating Voltage:
2.8 V - 5 V
Installation Method:
Bottom-Mounted External Fixing
Horizontal Tilt Detection:
0 To 180 Deg
Temperature Compensation:
Supported
Standby Current:
Less Than 15 uA
Measurement Accuracy:
+- 1 5mm + S x 0.3% cm
Operating Temperature:
-15 C ~ +60 C
Housing Material:
ABS Plastic
Compliance:
RoHS
Anti-Static Standard:
IEC61000-4-2
Applications:
Smart liquid-level monitoring and control systems
Recommended Container Materials:
Stainless Steel, Iron, Glass, Ceramic, Non-Foamed Plastic
Container Thickness:
0.6 mm - 5 mm

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources

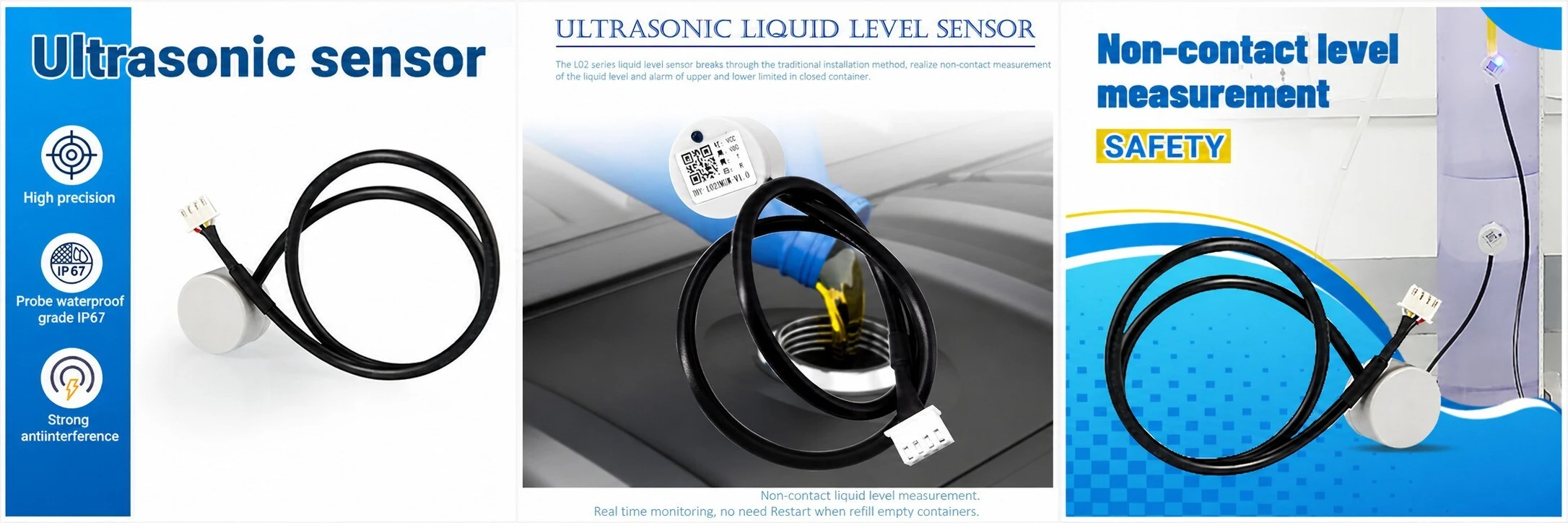

DYP Sensor L02 IP67 Waterproof Ultrasonic Liquid-Level Sensor 2cm-200cm For Closed-Container Non-Contact Monitoring

The DYP Sensor L02 IP67 Waterproof Ultrasonic Liquid-Level Sensor is designed for real-time, non-contact liquid-level monitoring in closed containers. It can be attached to the bottom centre of a container to measure liquid height, or mounted on the side wall to detect liquid presence at a specific monitoring point.

This compact ultrasonic liquid-level sensor is well-suited for containers made from stainless steel, iron, glass, ceramic, and non-foamed plastic. With 1 mm resolution, 2 cm to 200 cm measurement range, and IP67 protection, it supports reliable liquid-level detection in industrial, smart-device, and embedded-control applications.

The L02 sensor uses a 2MHz ultrasonic frequency for strong material penetration through suitable container walls. It supports multiple output options, including UART automatic output, UART controlled output, switch output, and PNP or NPN output, making it easy to integrate into different product designs and monitoring systems.

For best performance, the container should have a regular shape and a flat mounting surface. Measurement performance may vary based on container material, wall thickness, liquid movement, and whether the liquid level exceeds the maximum measuring range.

Features

  • Non-Contact Liquid-Level Monitoring: Measures liquid level from outside the container without opening or contacting the liquid.
  • Wide Measuring Range: Supports 2 cm to 200 cm liquid-level measurement for closed-container applications.
  • High Resolution: Provides 1 mm resolution for accurate liquid-level monitoring.
  • Strong Material Penetration: Uses a 2MHz ultrasonic sensor suitable for metal, plastic, glass, ceramic, and other compatible materials.
  • Multiple Output Options: Supports UART serial-port output, switch output, and PNP or NPN output for flexible integration.
  • Low-Power Operation: Works on 2.8 Vdc to 5.0 Vdc with low current consumption.
  • Rugged Housing: Compact ABS plastic housing with internal circuit potting for IP67 waterproof protection.
  • Stable Temperature Performance: Operates from -15 deg C to 60 deg C for reliable use in varied environments.
  • Easy Integration: Small, light-weight module designed for smart products, embedded systems, and liquid-level control applications.
  • Compliance Support: CE and RoHS compliant for product-development and industrial-use requirements.

Applications

  • Smart water bottles
  • Smart beer barrels
  • Smart LPG containers
  • Closed-container liquid-level monitoring
  • Stainless-steel tank liquid-level detection
  • Glass and ceramic container level monitoring
  • Non-serious deposition pure-liquid monitoring
  • Miscible mixed-liquid level monitoring
  • Smart liquid-level monitoring and control systems
