DYP-A16 Ultrasonic Water Level Sensor - 50cm to 1500cm Long Measuring Range

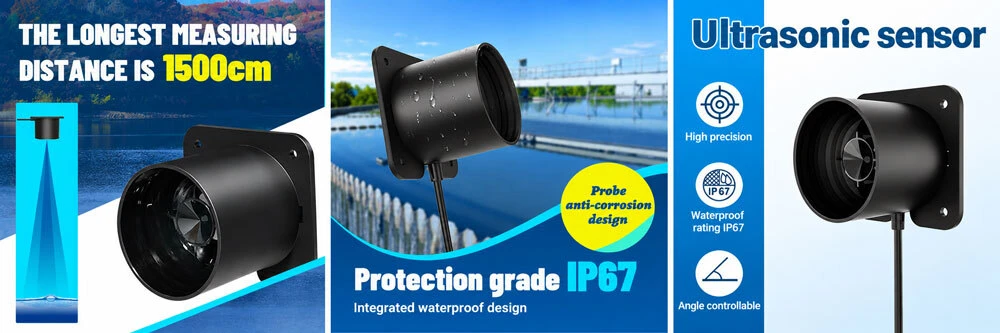

The DYP-A16 series ultrasonic water level sensor uses proven ultrasonic sensing technology to deliver accurate, non-contact distance measurement across a long range of 50cm to 1500cm. Built with a high-performance processor and superior-quality components, the module offers a stable output value and a long operational life span. The waterproof ultrasonic transducer is designed with strong adaptability to varied operating environments, making it suitable for both indoor and outdoor installations.
This module features a built-in high-precision ranging algorithm along with a power consumption management procedure, resulting in high ranging accuracy, low power consumption, and a narrow measurement angle. The A16 series supports multiple connection types, including PWM, UART Controlled, UART Automatic, RS485, and RS232, giving users flexible integration options. Its corrosion-resistant transducer is housed in a compact and rugged nylon enclosure that meets the IP67 waterproof standard, ensuring reliable performance even in harsh or wet conditions. Using a combination of real-time waveform feature analysis and noise-suppression algorithms, the sensor outputs near-zero-noise range readings, maintaining consistent performance even under acoustic or electrical interference.
Key Features
- Resolution: 1cm resolution for precise distance measurement
- Temperature Compensation: Built-in automatic temperature compensation and deviation correction
- Stable Output Range: Delivers stable output from -15°C to +60°C
- Ultrasonic Frequency: 40kHz ultrasonic sensor for object-ranging measurement
- Compliance: CE and RoHS compliant
- Connection Options: Supports UART Auto, UART Controlled, PWM, RS485, and RS232 for flexible interface capability
- Dead Band: 50cm minimum dead-band distance
- Maximum Range: Up to 1500cm maximum ranging measurement
- Power Consumption: Low-power design with static current below 15.0uA and working current below 10.0mA at 5Vdc supply
- Measurement Accuracy: Flat-mode accuracy of ±(1+S x 0.3%), where S denotes the measured distance
- Build: Small-sized, lightweight module with a reflective structure design for long-range, narrow-beam measurement
- Integration: Easy to integrate into existing projects or products
- Operating Temperature: Functions reliably between -15°C to +60°C
- Protection Rating: IP67-rated waterproof housing
Applications
- Reservoir level monitoring
- Open channel and river level measurement
- Smart detection systems
