Banana Pi BPI-CM6 Industrial RISC-V Compute Module with SpacemiT K1 8-Core CPU and 2 TOPS AI
The Banana Pi BPI-CM6 is an industrial-grade RISC-V compute module built around the SpacemiT K1 octa-core 64-bit processor. Designed for AI edge computing, robotics, industrial control, and embedded applications, the module integrates up to 2.0 TOPS of AI computing capability directly within the processor platform. Memory configurations include 4 GB, 8 GB, and 16 GB LPDDR4, while eMMC storage options extend from 8 GB to 128 GB, providing flexibility for different embedded and industrial workloads.
The BPI-CM6 uses a compact 40 x 55 mm form factor with board-to-board connectors similar to the Raspberry Pi CM4 mechanical format, providing a stable connection for carrier-board integration. It supports Wi-Fi 6 and Bluetooth 5.2 through the RTL8852BS module, Gigabit Ethernet through the RTL8211F PHY, and extensive expansion including PCIe 2.1, USB 3.0, USB 2.0, HDMI 1.4, MIPI DSI, MIPI CSI, RGMII, and multiple UART interfaces. With an operating-temperature range from -40 C to +85 C, the module is suited to embedded systems requiring compact size, high interface density, and RISC-V processing.
Key Features
- SpacemiT K1 RISC-V Processor: Uses an octa-core 64-bit RISC-V AI CPU for embedded computing and edge-processing applications.
- 2.0 TOPS AI Computing: Integrated AI processing capability supports compatible edge-AI and intelligent automation workloads.
- Up to 16 GB LPDDR4: Available with 4 GB, 8 GB, or 16 GB memory configurations, with 4 GB as the default option.
- eMMC Storage Options: Supports 8 GB, 16 GB, 32 GB, and 128 GB eMMC configurations for operating systems and application storage.
- Industrial-Grade Design: Supports an operating-temperature range from -40 C to +85 C for demanding embedded installations.
- Compact 40 x 55 mm Form Factor: Small compute-module design simplifies integration into custom carrier boards and embedded equipment.
- Board-to-Board Connectors: Stable high-density connector architecture supports reliable carrier-board integration.
- Wi-Fi 6 Connectivity: RTL8852BS wireless module provides high-speed Wi-Fi connectivity for compatible systems.
- Bluetooth 5.2: Integrated wireless module supports Bluetooth connectivity for peripherals and IoT applications.
- Gigabit Ethernet PHY: RTL8211F PHY provides Ethernet networking capability through the carrier-board interface.
- PCIe 2.1 Expansion: Provides 5-lane PCIe 2.1 expansion capability for compatible high-speed peripherals.
- USB Connectivity: Supports 1 x USB 3.0 and 2 x USB 2.0 interfaces.
- HDMI 1.4 Output: Provides digital display connectivity for compatible monitors and embedded displays.
- MIPI DSI Interface: Supports compatible embedded display panels.
- 3 x MIPI CSI Interfaces: Enables integration of multiple compatible camera modules and vision sensors.
- RGMII Interface: Provides high-speed Ethernet MAC-to-PHY connectivity for custom networking designs.
- 10 x UART Interfaces: Extensive serial connectivity supports industrial devices, sensors, and embedded peripherals.
Applications
- AI edge computing
- Intelligent robotics
- Industrial control systems
- Factory automation
- NAS systems
- Embedded computers
- RISC-V development platforms
- Machine-vision systems
- Smart gateways
- Edge AI devices
- Industrial IoT
- Automation controllers
- Compact laptops
- Network-storage systems
- Custom carrier-board designs

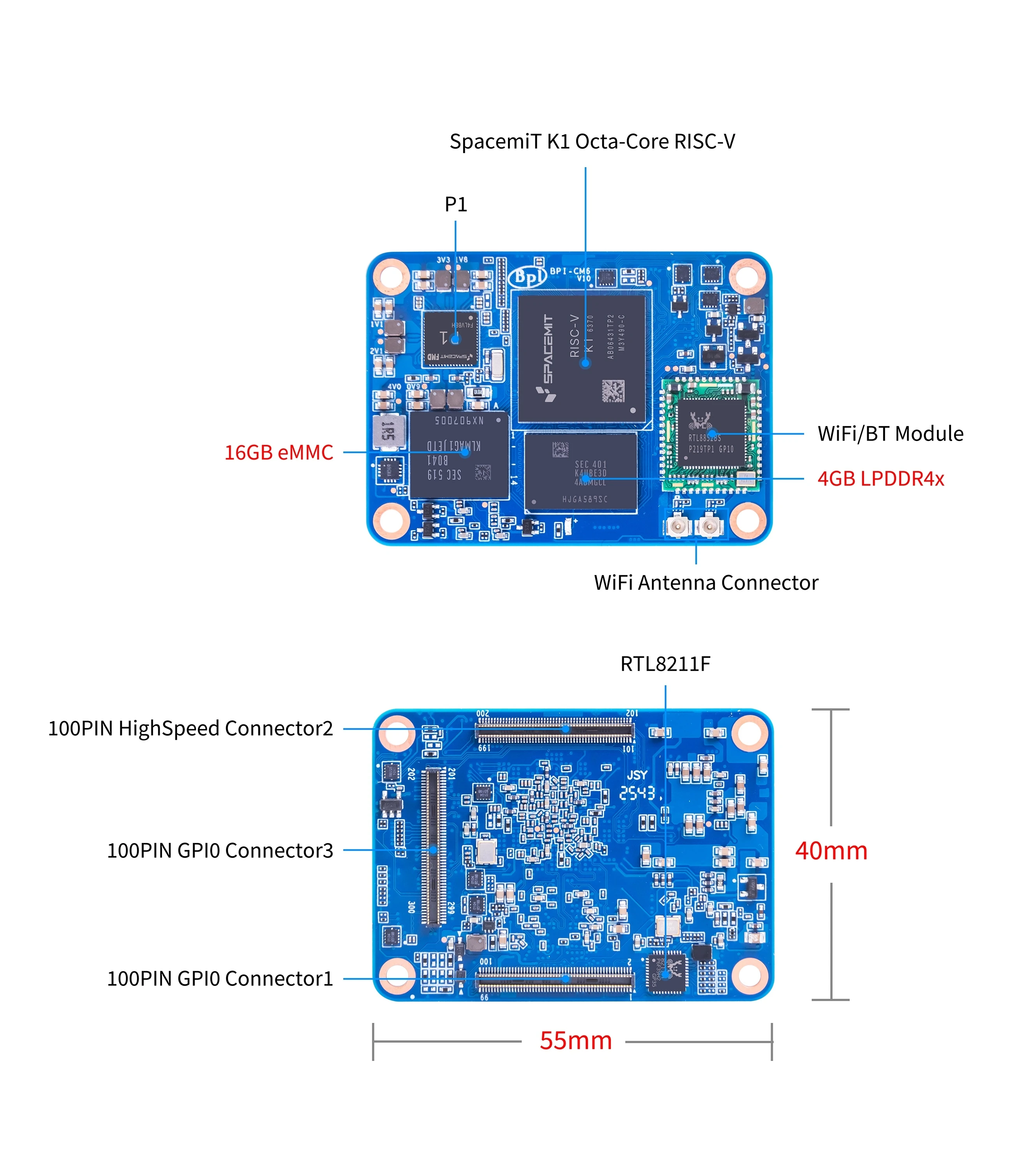

Hardware Interface
