Banana Pi BPI-CM4 IO Board For BPI-CM4 Compute Module With MIPI DSI, MIPI CSI, miniPCIe, HDMI, Gigabit Ethernet And 26-Pin GPIO

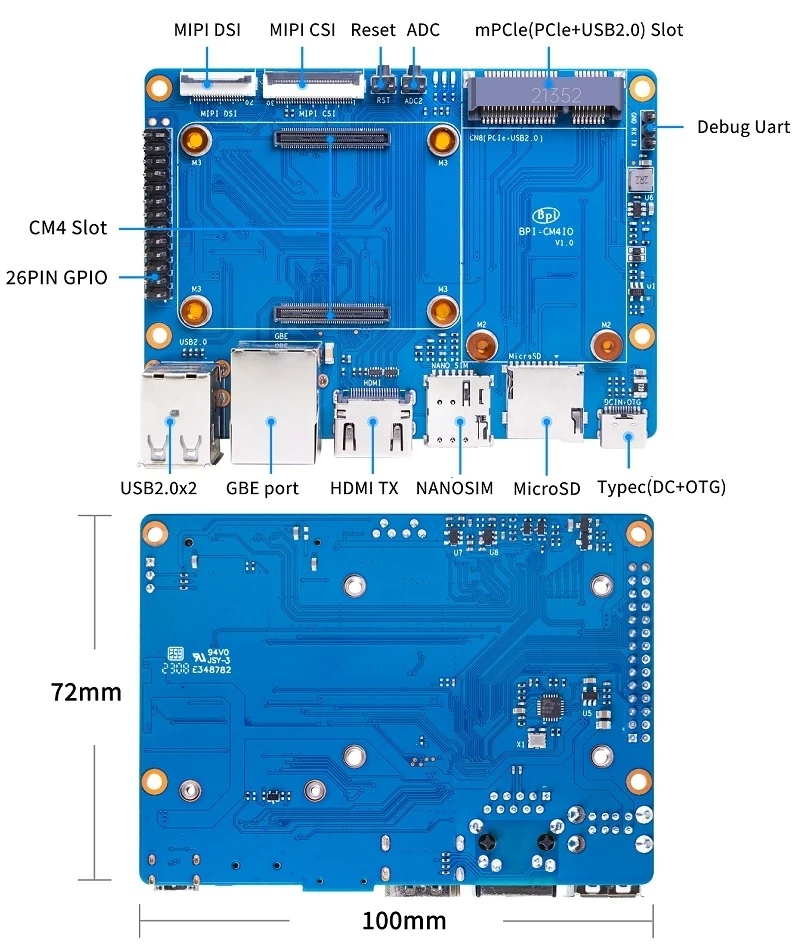

The Banana Pi BPI-CM4 IO Board is a carrier board built for the BPI-CM4 compute module. It breaks out the module’s interfaces into standard connectors, so you can move from evaluation to a working embedded setup without custom board design. The board has MIPI DSI and MIPI CSI ports for display and camera connections, an HDMI output, and a miniPCIe slot for expansion.
The board has a 1-Gigabit RJ45 Ethernet port, 2 USB 2.0 ports and a USB Type-C OTG port for fast networking and peripheral connectivity. A SIM card slot and TF card slot support cellular and storage needs. The 26-pin GPIO header, UART debug interface and AD key make it well-suited for prototyping, firmware development and small-scale deployment. At 100 x 72 mm, it fits easily into compact enclosures.
Key Features
- MIPI DSI Display Interface: Connects compatible MIPI DSI displays for embedded user interfaces and panels.
- MIPI CSI Camera Interface: Supports MIPI CSI camera modules for imaging and vision projects.
- miniPCIe Slot: Adds expansion options such as wireless or cellular modules.
- HDMI Output: Drives an external monitor or TV for display output.
- 26-Pin GPIO: Allows connection of sensors, relays and custom circuits.
- USB Type-C OTG: Supports OTG operation for device connectivity and data transfer.
- TF Card Slot: Provides removable storage for data and system files.
- SIM Card Slot: Enables cellular connectivity when paired with a suitable module.
- RJ45 Gigabit Ethernet: Offers wired networking at up to 1000 Mbps.
- 2 x USB 2.0 Ports: Connect keyboards, mice, storage drives and other peripherals.
- UART Debug Interface: Gives serial console access for debugging and development.
- AD Key: Provides an onboard analog-to-digital key input.
- Compact Size: Measures 100 x 72 mm for space-constrained designs.
Applications
- IoT gateways and edge computing nodes
- Embedded vision and camera-based projects
- Digital signage and HMI display systems
- Cellular and wireless connectivity projects using miniPCIe and SIM slots
- Network-connected controllers and data loggers
- Prototyping, firmware development and evaluation of the BPI-CM4 module
- Education, research and maker projects
Hardware Interface
