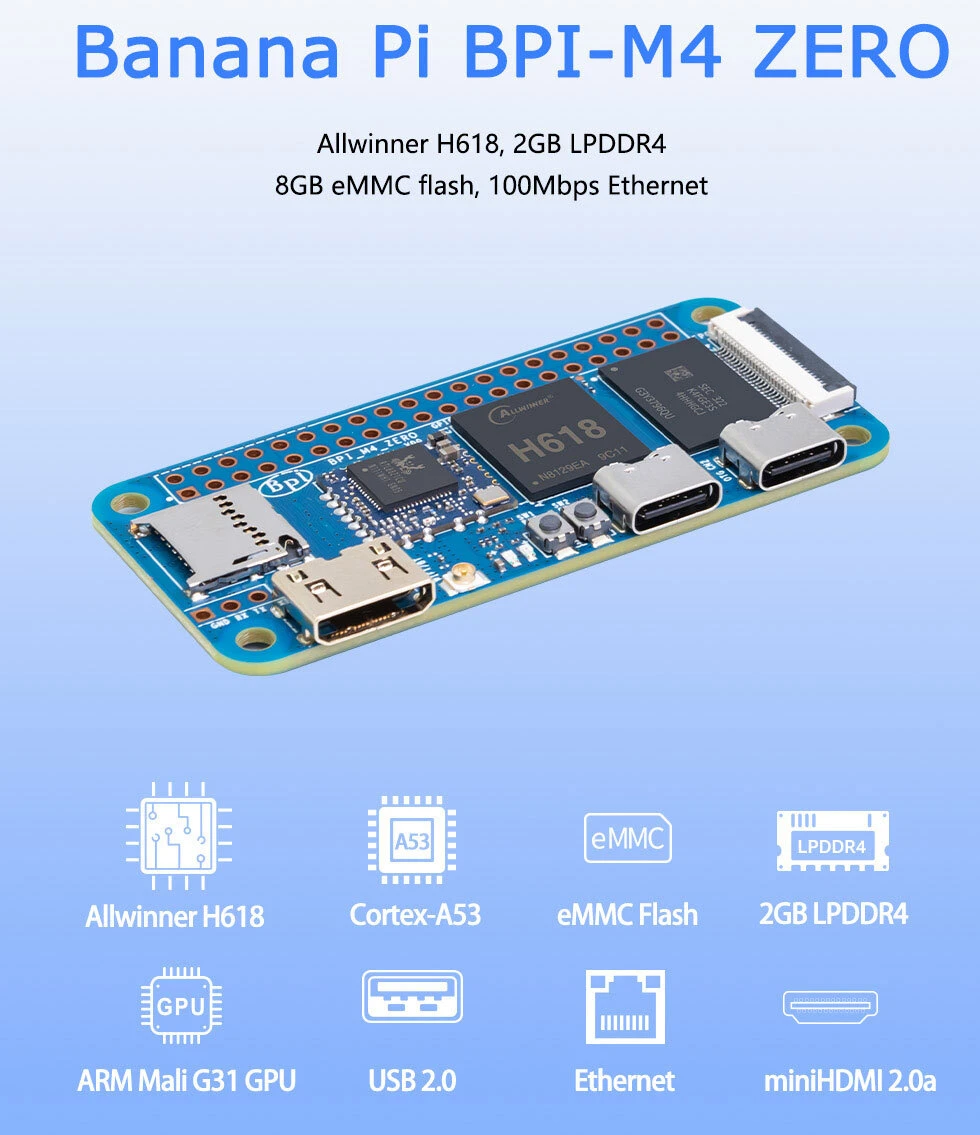

Banana Pi BPI-M4 Zero Ultra-Compact SBC with Allwinner H618, LPDDR4, eMMC and Dual-Band Wi-Fi Support
The Banana Pi BPI-M4 Zero is an ultra-compact single-board computer and successor to the BPI-M2 Zero, offering a significant upgrade in processing, memory, and storage capabilities. It is powered by the Allwinner H618 quad-core Arm Cortex-A53 processor and integrates an Arm Mali-G31 GPU for graphics and multimedia workloads. Depending on the configuration, the board provides 2 GB or 4 GB LPDDR4 memory together with 8 GB or 32 GB eMMC flash storage, making it suitable for embedded computing, IoT, automation, and compact development projects.
The BPI-M4 Zero maintains a Raspberry Pi Zero W-style form factor and 40-pin connector, allowing compatibility with many Zero W cases and accessories. Wireless capability depends on the installed module: the K019 option supports 2.4 GHz and 5 GHz Wi-Fi with Bluetooth 5.0, while the K016 option provides Wi-Fi 4 and does not support 5 GHz Wi-Fi. Connectivity includes Mini HDMI 2.0a, 2 x USB 2.0 Type-C interfaces, and a 24-pin FPC connector exposing USB 2.0 and 100 Mbps Ethernet, providing flexible expansion for space-constrained embedded systems.
Key Features
- Allwinner H618 SoC: Upgraded processor platform designed for compact embedded and general-purpose computing applications.
- Quad-Core Arm Cortex-A53: Provides 4 CPU cores for improved performance compared with the earlier BPI-M2 Zero platform.
- Arm Mali-G31 GPU: Integrated graphics processor supports compatible multimedia and display workloads.
- 2 GB / 4 GB LPDDR4: Available memory configurations provide increased capacity for applications and multitasking.
- 8 GB / 32 GB eMMC: Integrated flash storage provides onboard space for operating systems, applications and data.
- Dual-Band Wi-Fi Option: K019 wireless module supports both 2.4 GHz and 5 GHz Wi-Fi connectivity.
- Bluetooth 5.0: Supported with compatible wireless configurations for peripheral and IoT connectivity.
- K016 Wireless Option: The K016 module supports Wi-Fi 4 and does not support 5 GHz Wi-Fi.
- Raspberry Pi Zero W-Style Form Factor: Maintains a similar size and 40-pin layout for compatibility with many Zero W accessories.
- 40-Pin Expansion Header: Provides access to GPIO and compatible embedded interfaces for custom hardware expansion.
- USB Type-C OTG: Includes a USB 2.0 Type-C OTG interface that also supports 5 V power input.
- Additional USB Type-C Port: Provides a second USB 2.0 Type-C interface for compatible peripherals.
- Mini HDMI 2.0a: Supports digital display output through a compact Mini HDMI connector.
- 24-Pin FPC Expansion: Exposes additional USB 2.0 and 100 Mbps Ethernet connectivity.
- Compact Embedded Platform: Suitable for IoT nodes, automation controllers, development systems, and portable devices.
Applications
- Embedded computing
- IoT gateways
- Home automation
- Robotics
- Compact network devices
- Digital signage
- Educational electronics
- Portable embedded systems
- Automation controllers
- Sensor gateways
- DIY electronics projects
- Multimedia systems
- Edge devices
- Prototyping platforms
Multifunctional Application
BPI-M4 ZERO is equipped with the Allwinner H618 chip, which has powerful processing capabilities and multimedia processing capabilities, and is suitable for application sce-narios such as high-definition video playback and graphics rendering.

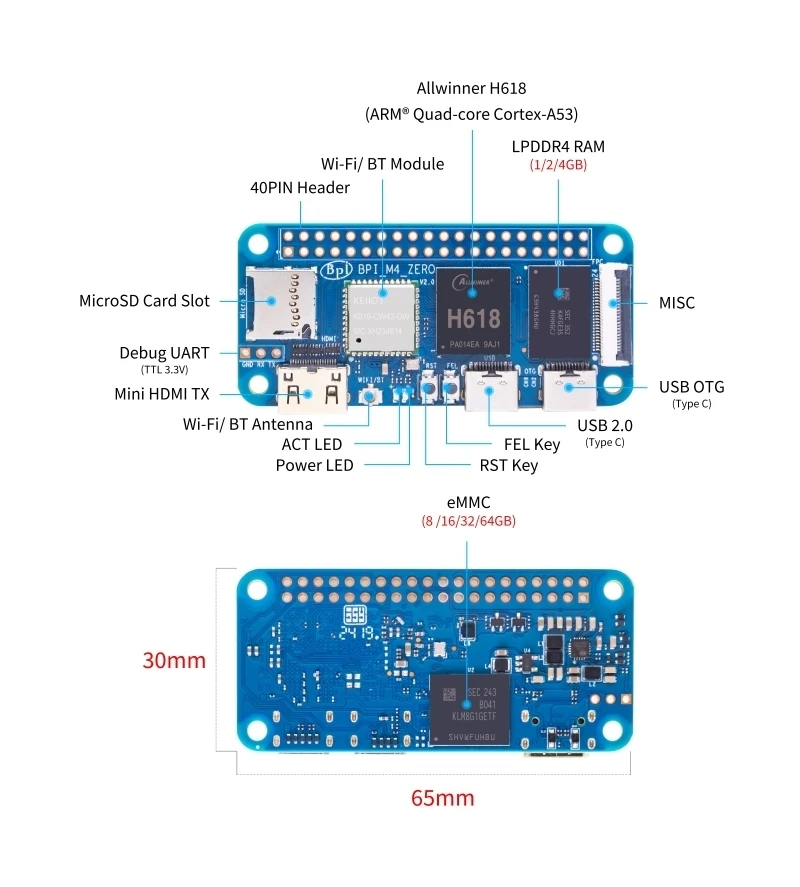

Hardware Interface
