Food-Grade 12 V / 24 V Micro Brushless DC Centrifugal Pump for Cooling and Water Circulation
The TL-C01-E is a compact food-grade micro DC brushless water pump designed for water circulation, cooling, liquid transfer, and boosting applications. It uses a 3-phase brushless DC motor with magnetic-drive centrifugal pumping technology for efficient continuous operation. Available in 12 V and 24 V DC configurations, the TL-C01-E series provides maximum flow rates from 17 L/min to 24 L/min and maximum water heads from 6 m to 11 m, depending on the selected model.
The pump uses a seal-less magnetic-drive construction to reduce leakage risk and incorporates a permanent-magnet rotor, ceramic shaft, and closed-type impeller for stable liquid circulation. Food-grade materials make it suitable for compatible water-handling systems, while its compact and low-noise construction supports installation in medical equipment, water heaters, cooling systems, 3D laser equipment, and other space-conscious applications. The pump is designed for continuous operation, but standard versions must not be operated dry.
Key Features
- Brushless DC Motor: Uses a 3-phase brushless DC motor for efficient and continuous-duty operation.
- 12 V and 24 V Options: Available in multiple 12 V DC and 24 V DC configurations for different system requirements.
- High Flow Capability: Model-dependent maximum flow rates range from 17 L/min to 24 L/min.
- High Water Head: Available configurations provide maximum water heads from 6 m to 11 m.
- Food-Grade Materials: Suitable for compatible food, beverage, and clean-water circulation applications.
- Magnetic-Drive Technology: Static-seal magnetic coupling helps minimise leakage associated with conventional shaft seals.
- Closed-Type Impeller: Supports efficient centrifugal liquid movement with reduced hydraulic loss.
- Continuous Operation: Designed for heavy-duty continuous liquid-circulation applications.
- Long Operating Life: Brushless motor construction is designed for an ideal service life of approximately 30000 hours under specified conditions.
- High-Temperature Materials: Suitable variants support elevated liquid temperatures for hot-water and cooling applications.
- Low Maintenance: Brushless magnetic-drive architecture reduces mechanical wear and routine maintenance requirements.
- Compact Construction: Small and lightweight pump design simplifies integration into embedded equipment.
- Low-Vibration Operation: Precision rotor construction supports stable operation with reduced vibration.
- Multiple Power Sources: Suitable for compatible DC power supplies, battery systems and solar-powered applications.
- Protection Functions: Supports over-voltage, over-current and blocked-rotor protection.
- Custom Control Options: Manufacturer-customised versions can support PWM, 0 V to 5 V speed control and FG speed-feedback functions.
Applications
- Medical equipment
- Medical-device cooling
- Gene-sequencer cooling
- 3D laser-cutter cooling
- Electronics cooling
- Water-circulation systems
- Hot-water circulation
- Electric water heaters
- Home circulation systems
- Cleaning equipment
- Water-purification systems
- Smart toilet boosting
- LED cooling
- Semiconductor cooling
- Liquid-transfer systems
- EV charging-cable cooling
- Industrial cooling systems

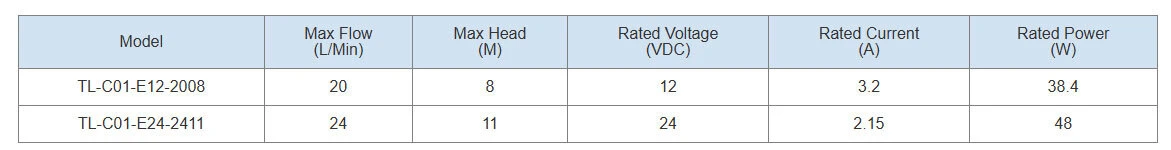

Specificatoins:

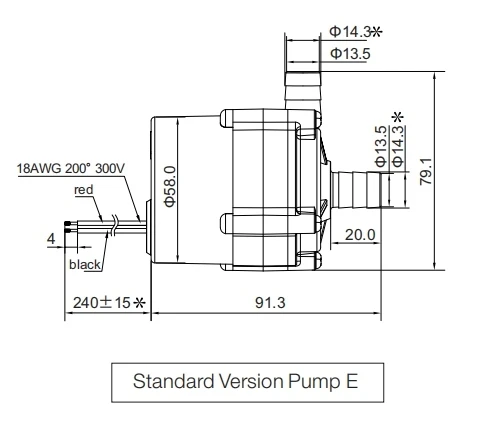

Dimension
