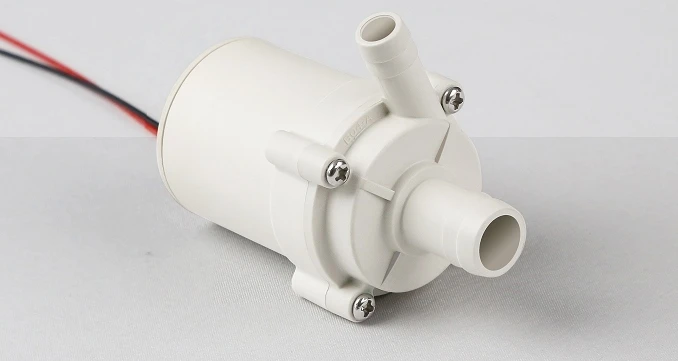

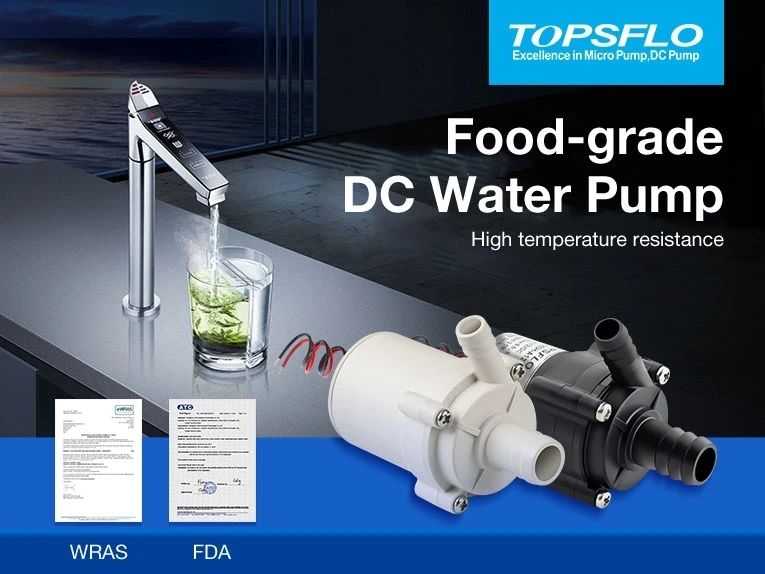

24V Food-Grade Brushless DC Hot-Water Pump With 7.5L/min Flow, 3.5m Head And 100 C Liquid-Temperature Capability
The TOPSFLO TL-B04 is a compact food-grade brushless DC centrifugal pump developed for under-counter boiling-water dispensers, under-sink instant hot-water systems, filtered drinking-water appliances, and beverage equipment. Rated at 24V, it provides a maximum flow rate of 7.5L/min and a maximum static lift of 3.5m while consuming approximately 10.8W. Its high-temperature hydraulic design supports pure-water temperatures up to 100 C, making it suitable for applications where near-boiling water must be transferred reliably within a compact appliance.
The pump combines high-temperature-resistant wetted materials, a brushless DC motor, continuous-duty capability, and an optimized high-temperature exhaust structure to help reduce cavitation and maintain stable flow at elevated water temperatures. TOPSFLO also supports customized intelligent control and flow regulation for applications requiring multiple dispensing temperatures. With food-contact materials and manufacturer-listed NSF, FDA, and WRAS compliance, the TL-B04 is designed for premium drinking-water and beverage systems where thermal stability, compact installation, and long operating life are important.
Key Features
- 7.5L/min Maximum Flow: Provides high flow capability for instant hot-water dispensing and beverage applications.
- 3.5m Maximum Static Lift: Supports compact appliance plumbing layouts that require a moderate pressure head.
- 24V Rated Operation: Designed for integration into DC-powered household and commercial beverage systems.
- 12-28V Working Range: Provides flexibility for compatible power-supply and control architectures.
- 100°C Liquid Compatibility: Handles hot water up to 100°C for near-boiling water applications.
- Brushless DC Motor: Eliminates mechanical brush wear for longer service life and reduced maintenance.
- Centrifugal Pump Design: Provides smooth continuous water movement for dispenser and circulation applications.
- Continuous-Duty Operation: Designed for extended operation in integrated appliance systems.
- 20,000-Hour Ideal Lifetime: Manufacturer specifies an ideal operating life exceeding typical brushed-pump solutions.
- High-Temperature Exhaust Structure: Designed to manage vapor formation and reduce high-temperature cavitation.
- Stable High-Temperature Flow: Maintains more consistent water delivery at temperatures approaching boiling.
- Up To 21% Higher High-Temperature Flow: TOPSFLO states that at 97-100 C, the optimized design can deliver up to 21% higher flow than same-power conventional pump designs.
- Smart Flow Control Support: Integrated electronic-control options support customized intelligent flow regulation.
- +/- 5% Flow Consistency: TOPSFLO specifies flow variation within +/- 5% under the same duty cycle for supported control configurations.
- Food-Grade Wetted Materials: Materials in contact with water are selected for drinking-water and beverage applications.
- NSF, FDA and WRAS Compliance: Manufacturer identifies these food-grade standards for the hot-water pump solution.
- Compact Appliance Integration: Small pump architecture helps conserve installation space inside under-counter equipment.
- Low-Noise Design: Optimized hydraulic and motor design helps reduce operating noise in household appliances.
- No-Stuck Design Approach: High-temperature material selection and hydraulic optimization help improve reliability during repeated hot-water operation.
- Indoor Appliance Use: Developed specifically for concealed household and beverage-equipment installation.
Applications
- Under-counter boiling-water dispensers
- Under-sink hot-water dispensers
- Instant filtered boiling-water systems
- Hot-water purification systems
- Chilled and sparkling-water systems
- Filtered drinking-water appliances
- Coffee machines
- Coffee makers
- Beverage dispensers
- Water coolers
- Water dispensers
- Smart kitchen appliances
- Instant hot-water taps
- Premium drinking-water systems
- Commercial beverage equipment
- Hot-water circulation systems
- Intelligent temperature-controlled dispensers
Under-counter Boiling Water Dispensers Industry Overview
With rising consumer demand and the increasing adoption of smart home technology, people are establishing greater standards for drinking water safety, taste quality, convenience, and overall user experience. Traditional solutions, such as electric kettles, countertop water purifiers, and conventional water heating systems, are increasingly unable to meet the demands of premium household applications due to limitations such as long heating times, inconsistent temperature control, and restricted space efficiency.

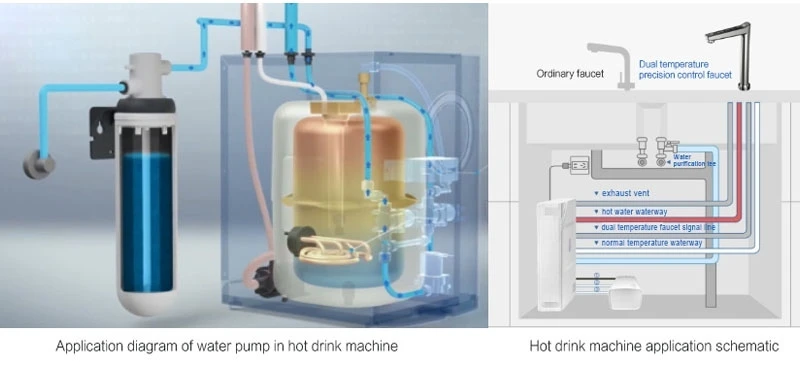

Internal Structure Diagram of Under-sink Filtered Hot Water Dispenser
Continuous High-Temp Operation
⋅ Plastic materials are imported and do not have recyclable content. No cracking over time.
⋅ World-class electrical components and optimized thermal design provide low temperature increase, reliable performance, and constant audio quality throughout sustained high-temperature operation.
High-Temp Exhaust Design

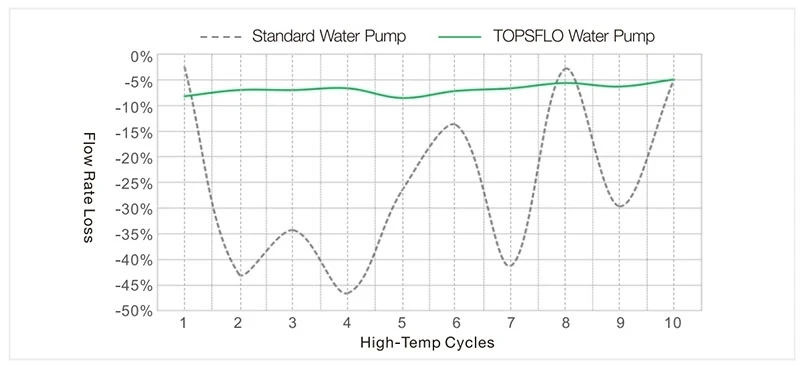

- At liquid temperatures of 97°C-100°C, it produces up to 21% greater flow compared to similar power pumps.
- The pump's unique high-temperature exhaust construction ensures consistent flow output without noise or fluctuation.
Precise Temperature Control

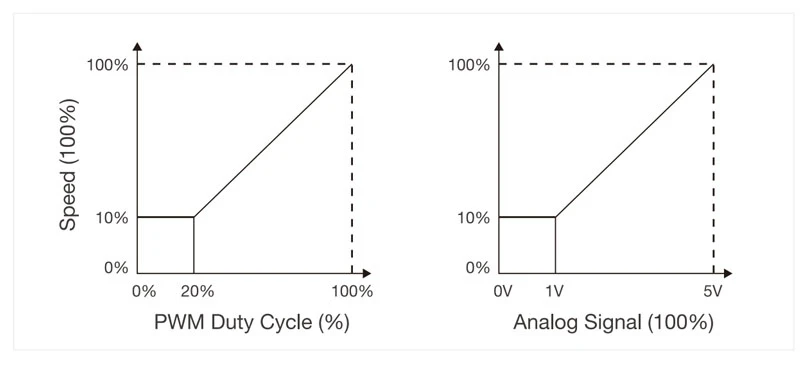

⋅ A professional integrated electronic control system allows for customizable intelligent control and precise flow regulation to satisfy various temperature demands.
⋅ Maintains high accuracy and batch consistency, with flow variations within +5% within the same duty cycle.

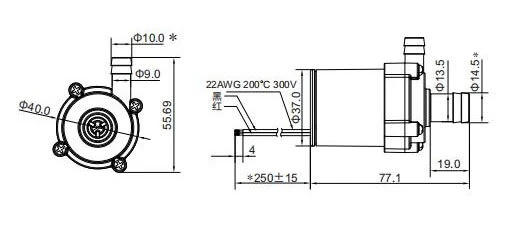

Dimension
