Food-Grade 12 V / 24 V Micro Brushless DC Centrifugal Water Pump for Liquid Circulation and Cooling
The TL-C01-C is a compact food-grade micro DC brushless water pump designed for water circulation, liquid transfer, cooling, and boosting applications. Available in 12 V and 24 V DC variants, it uses a 3-phase brushless DC motor with a magnetic-drive centrifugal pumping mechanism and a closed impeller. Depending on the voltage version, the pump provides a maximum flow rate of up to 24 L/min and a maximum water head of up to 11 m, making it suitable for beverage equipment, water heaters, cooling systems and other continuous liquid-circulation applications.
The magnetic-drive construction isolates the stator and rotor to provide a seal-less pumping arrangement that helps minimise leakage risk. The pump supports continuous operation and uses food-grade materials for compatible water-handling applications. It also offers over-voltage, over-current, and blocked-rotor protection, while its compact and low-noise design supports integration into embedded equipment. The TL-C01-C is not self-priming and should not be operated dry unless a customised dry-running-protection version is specified.
Key Features
- Brushless DC Motor: Uses a 3-phase brushless DC motor for efficient and continuous liquid-circulation operation.
- 12 V and 24 V Options: Available in separate 12 V DC and 24 V DC configurations for different power systems.

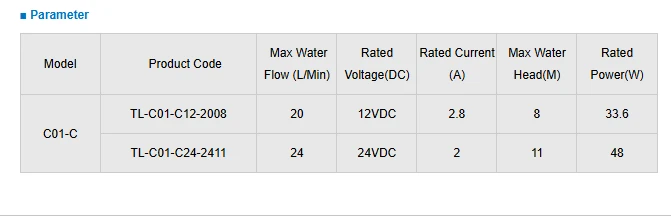

- High Flow Rate: Provides up to 20 L/min for the 12 V model and up to 24 L/min for the 24 V model.
- High Water Head: Supports a maximum head of 8 m for the 12 V model and 11 m for the 24 V model.
- Food-Grade Construction: Designed with food-grade materials for compatible water and beverage-equipment applications.
- Magnetic-Drive Design: Magnetically coupled construction provides a static-seal arrangement for improved leakage resistance.
- Closed Impeller: Closed-impeller design supports efficient centrifugal water movement.
- Wide Working Voltage: 12 V version supports approximately 6 V to 18 V operation, while the 24 V version supports approximately 12 V to 28 V.
- Continuous Operation: Designed for continuous-duty liquid-circulation applications within specified operating limits.
- Low-Noise Operation: Manufacturer specifies a maximum noise level of approximately 40 dB measured at 1 m.
- Protection Functions: Supports over-voltage, over-current, and blocked-rotor protection.
- Multiple Power Sources: Can operate from compatible DC power supplies, batteries and solar-powered systems.
- Compact Construction: Small centrifugal-pump design supports installation in space-conscious equipment.
- G1/2 Connection: Uses G1/2 inlet and outlet connections for compatible fluid systems.
- Water and Coolant Handling: Suitable for water and compatible coolant-circulation applications.
Applications
- Food and beverage equipment
- Beverage machines
- Water dispensers
- Electric water heaters
- Hot-water circulation
- Water-cooling systems
- Electronic cooling
- Chillers
- Semiconductor cooling
- LED cooling
- HVAC systems
- Smart toilet boosting
- Medical equipment
- Liquid-transfer systems
- Solar-powered water circulation
- Industrial cooling systems
