High-Flow Magnetic-Drive Gear Pump With 6.5L/min Flow, 8bar Pressure And Built-In Brushless DC Controller
The TOPSFLO MG317XK/DC24WI is a high-performance magnetic-drive micro gear pump designed for precision liquid transfer, cooling circulation, ink delivery, food-processing equipment, medical instruments, laboratory systems, and other applications requiring stable flow at relatively high differential pressure. Operating from a 24V DC supply, it delivers up to 6.5L/min maximum flow and supports pressures up to 8bar with a maximum power rating of 200W.
The pump combines magnetic coupling with a brushless DC motor and built-in controller, eliminating the conventional rotating shaft seal between the motor and liquid chamber. Its 316L stainless-steel housing, PEEK gear set, and PTFE sealing materials provide corrosion resistance and compatibility with a broad range of suitable liquids. Strong self-priming capability, low-pulsation output, stepless flow regulation, and continuous-duty construction make it suitable for demanding industrial, medical, printing, food-processing, and thermal-management applications.
Key Features
- 6.5L/min Maximum Flow: Provides high liquid-transfer capacity for cooling, circulation, printing, and process applications.
- 8bar Maximum Pressure: Supports systems requiring substantial differential pressure and restrictive fluid paths.
- 24V DC Operation: Designed for industrial, medical, printing, food-processing, and thermal-management equipment.
- 200W Maximum Power: Provides the drive capability required for high-flow and high-pressure operation.
- Brushless DC Motor: Reduces brush wear and supports longer service life with lower maintenance requirements.
- Built-In Motor Controller: Integrated controller simplifies electrical installation and pump-speed management.
- Magnetic-Drive Technology: Transfers motor torque through magnetic coupling without a conventional dynamic shaft seal.
- Leak-Resistant Static Sealing: Reduces potential leakage paths between the motor and pumped liquid.
- 316L Stainless-Steel Housing: Provides corrosion-resistant structural construction for demanding fluid applications.
- PEEK Gear Set: Offers high mechanical strength, wear resistance, and chemical compatibility for suitable process fluids.
- PTFE Sealing Material: Provides chemical resistance for a broad range of compatible liquids.
- Strong Self-Priming Capability: Can draw liquid into the pump without requiring a permanently flooded inlet under suitable conditions.
- Low-Pulsation Flow: Gear-pump design provides a stable fluid stream suitable for metering and precision transfer.
- Stepless Flow Adjustment: Motor-speed regulation enables continuously adjustable liquid flow.
- 1.5mL/rev Displacement Reference: Provides predictable displacement for flow-control applications.
- 50-2000cP Fluid Viscosity: Supports liquids ranging from relatively low viscosity to more viscous process fluids.
- -10 C To 100 C Fluid Temperature: Suitable for a broad range of compatible liquid-temperature conditions.
- Continuous-Duty Operation: Designed for extended liquid-transfer and circulation applications.
- More Than 8000-Hour Lifetime: Manufacturer specifies a service life above 8000 hours under suitable operating conditions.
- FDA-Oriented Food Applications: Suitable configurations use materials intended for compatible food-processing and beverage applications.
- High-Temperature Customization: Customized versions can be specified for demanding high-temperature liquid-transfer applications.
- Compact High-Pressure Design: Provides substantial hydraulic performance from a relatively compact gear-pump platform.
Applications
- EV charging-cable cooling
- EV charger liquid cooling
- Fuel-cell systems
- Inkjet printers
- CIJ printers
- Ceramic inkjet printing
- Ink circulation
- Food-processing machines
- Automatic filling equipment
- Coffee machines
- Milk vending machines
- Beverage equipment
- Medical instruments
- Hemodialysis equipment
- Surgical instruments
- Medical beauty equipment
- Disinfection equipment
- Sterilization systems
- Laser cooling systems
- Water-treatment equipment
- Laboratory instrumentation
- Spray equipment
- Fluid transfer
- Cooling circulation
- Welding and cutting equipment

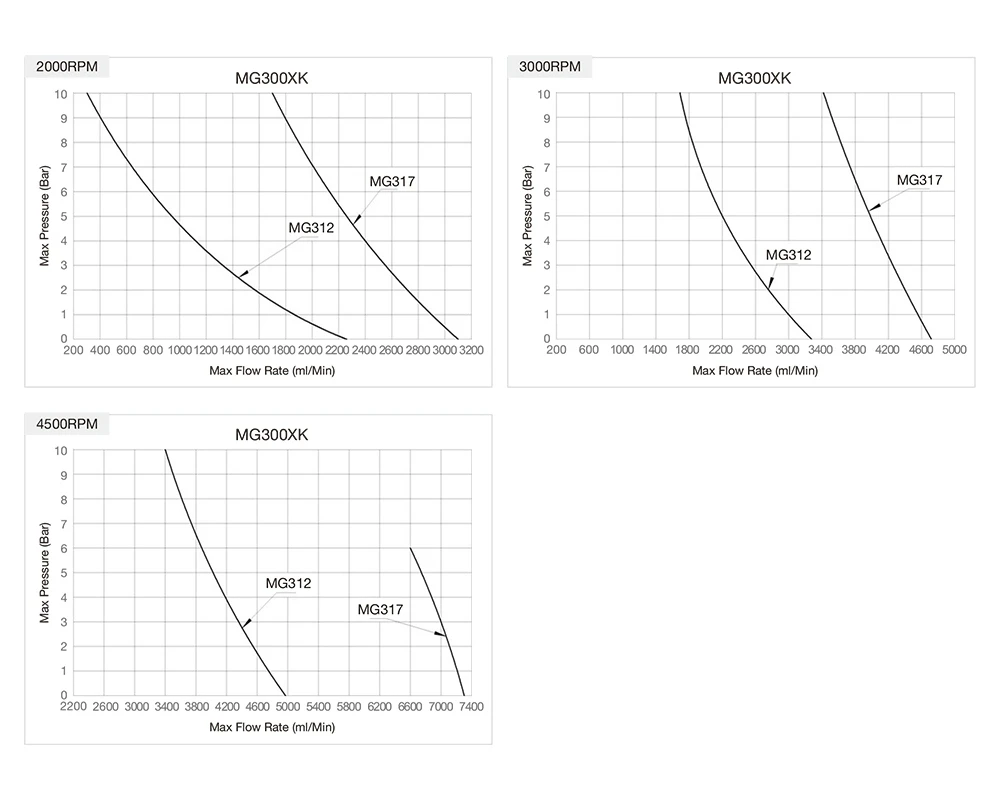

Performance Curve

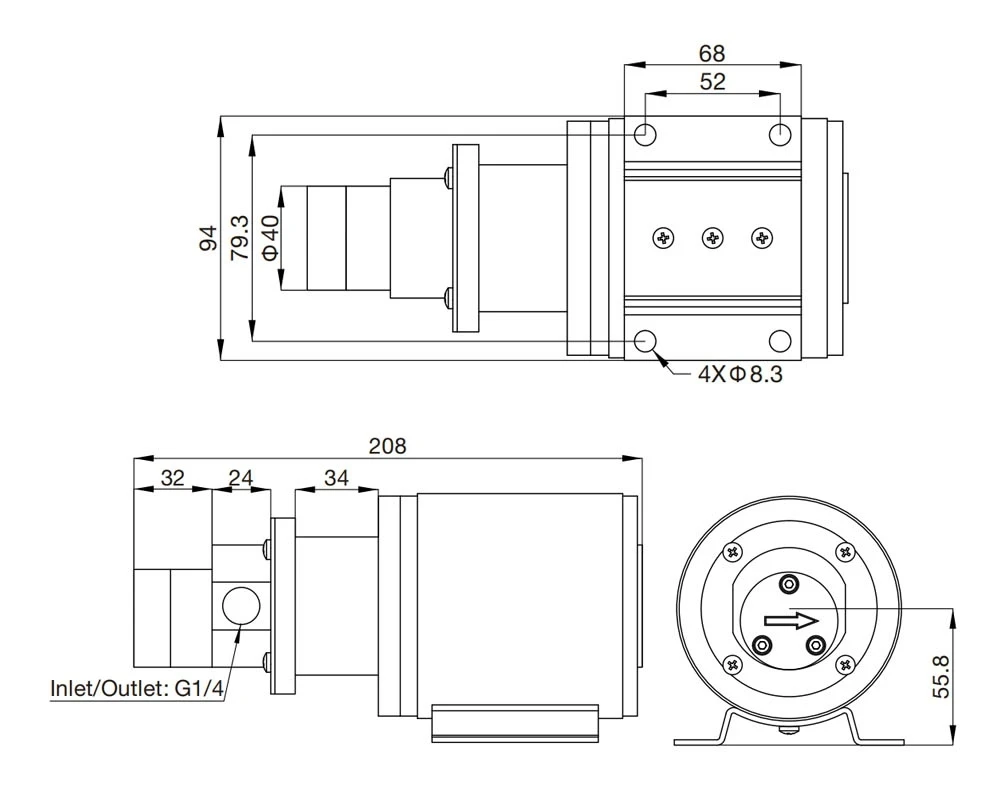

Dimension
