M5Stack M5StickC Speaker Hat PAM8303

M5Stack

No reviews yet Write a Review
SKU:
558-U055
MPN:
U055
M5Stack U055 Hat SPK speaker audio expansion board with PAM8303 Class-D amplifier for M5StickC
M5Stack U055 Hat SPK is a compact M5StickC audio expansion board featuring the PAM8303 3W mono Class-D amplifier, differential audio input, low EMI, short-circuit protection, and Arduino and UiFlow development support. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹1,002.83 inc. GST
₹849.86 ex. GST
15 people looking at this.

Technical Specifications

Brand:
M5Stack
Product Size:
25.0x24.0x14.0mm
Package Size:
138.0x93.0x13.0mm
Product Weight:
5.5g
Gross Weight:
13.0g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Documents

3 W Class-D Speaker HAT with PAM8303 Amplifier for M5StickC Audio Applications

The M5Stack U055 Speaker HAT is a compact audio-output module designed for M5StickC series controllers. It integrates the PAM8303 single-channel Class-D audio power amplifier and an onboard speaker, providing a convenient way to add sound output to embedded projects. With up to 3 W output power at a 5 V supply and 4 Ohm load, the module is suitable for voice prompts, alarms, notification tones, and other compact audio applications.

The PAM8303 amplifier provides high PSRR and a differential-input architecture to help reduce power-supply noise and RF interference during audio playback. The module operates from 2.8 V to 5.5 V and features ultra-low EMI performance, specified at 20 dB better than the FCC Class B limit at 300 MHz. Built-in short-circuit protection and low idle noise further support reliable integration into portable, IoT, and interactive M5StickC projects.

Key Features

  • PAM8303 Amplifier: Integrates a single-channel Class-D audio power amplifier for compact speaker applications.
  • 3 W Audio Output: Delivers up to 3 W output power from a 5 V supply with a 4 Ohm load at 10% THD.
  • Wide Operating Voltage: Supports a supply-voltage range from 2.8 V to 5.5 V.
  • Class-D Architecture: Provides efficient audio amplification for battery-powered and embedded systems.
  • Low EMI Performance: EMI performance is specified at 20 dB better than FCC Class B requirements at 300 MHz.
  • Differential Input: Helps reduce susceptibility to common-mode noise and RF interference.
  • High PSRR: Supports cleaner audio reproduction by reducing power-supply noise.
  • Low Idle Noise: Designed for ultra-low noise when no input signal is present.
  • Short-Circuit Protection: Integrated protection helps safeguard the amplifier during output short-circuit conditions.
  • M5StickC Compatibility: Designed for convenient integration with compatible M5StickC controllers.
  • Compact Audio Expansion: Adds speaker functionality without requiring a separate external amplifier board.

Applications

  • M5StickC audio projects
  • Voice-prompt systems
  • Audible alarms
  • Notification tones
  • IoT devices
  • Interactive electronic projects
  • Portable embedded systems
  • Human-machine interfaces
  • Timer and reminder devices
  • Robotics
  • Status-alert systems
  • Educational electronics projects

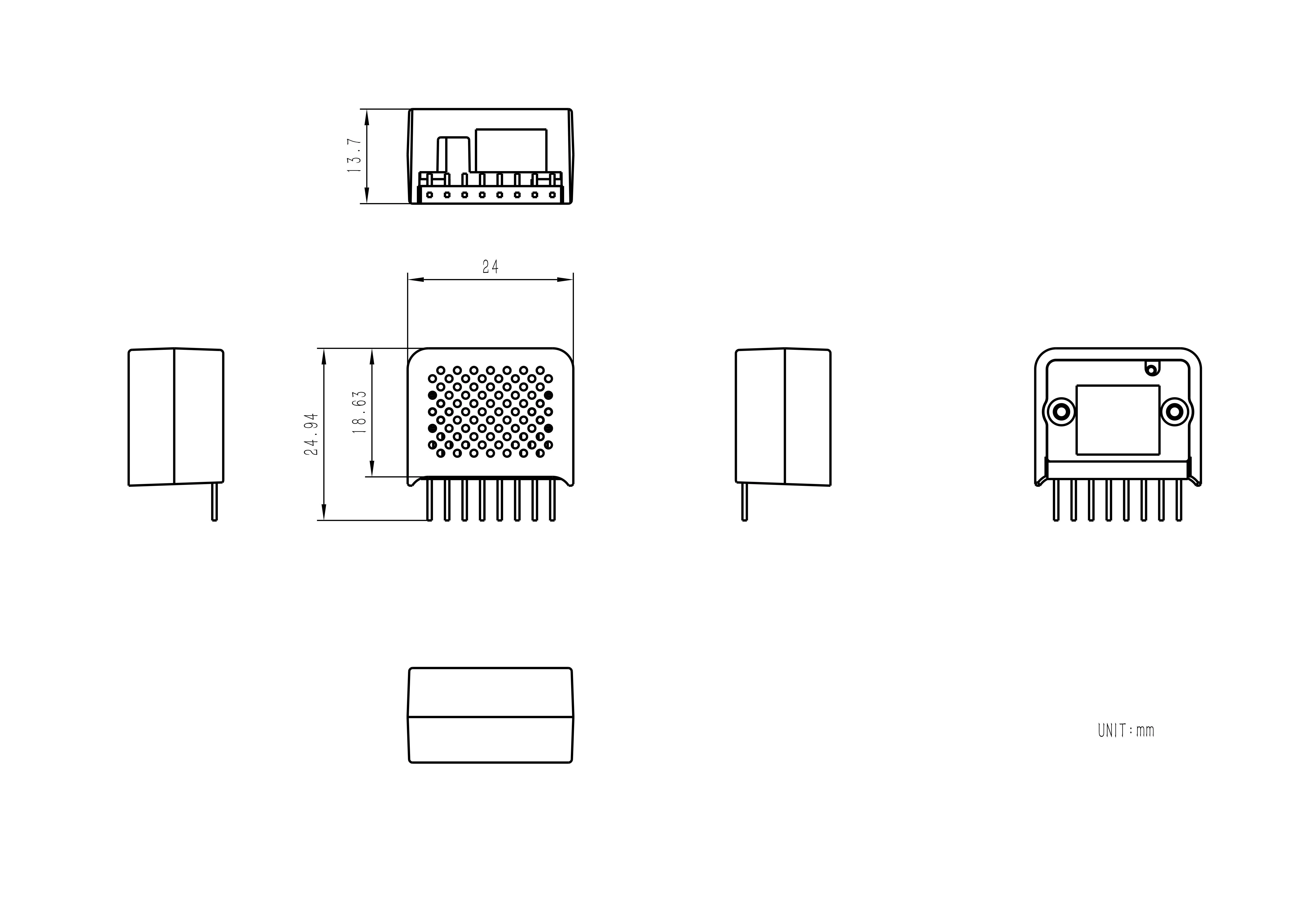

Model Size

Package Includes:

  • 1 x Hat SPK
