I2S Audio Expansion Base with NS4168 Amplifier, microSD Storage, and External Speaker Output
The M5Stack A098 Atomic SPK Base is a compact digital-audio expansion base designed for M5Stack ATOM-series controllers. It integrates the NS4168 power-amplifier IC with an I2S digital-audio interface and supports automatic sample-rate detection and adaptive operation. With a supported sampling-rate range of 8–96 kHz, the base provides a convenient platform for building compact audio players, notification devices, Wi-Fi speakers, and other embedded sound applications.
The base integrates a microSD card slot for storing and reading audio files and provides both a 3.5 mm headphone jack and a 1.25 mm 2-pin external-speaker interface. The NS4168 delivers up to 1W amplifier output at a 3.3V supply, and the package includes a 1W@8Ω speaker for direct audio playback. Its ATOM expansion interface carries the required I2S audio and SPI microSD signals, allowing the connected controller to handle both digital-audio output and file storage.
Key Features
- Audio Amplifier: Integrated NS4168 digital-audio power amplifier
- Digital Audio Interface: I2S serial audio input
- Sampling Rate: Supports 8–96 kHz audio sampling
- Automatic Detection: Automatic sample-rate detection and adaptive operation
- Amplifier Output: Up to 1W at VDD = 3.3V
- External Speaker: 1.25 mm 2-pin speaker interface
- Included Speaker: Supplied with 1W@8Ω speaker
- Headphone Output: Integrated 3.5 mm audio jack
- Audio Storage: Built-in microSD card slot for local audio files
- Storage Interface: microSD card communicates through SPI
- ATOM Expansion: Designed for compatible M5Stack ATOM-series controllers

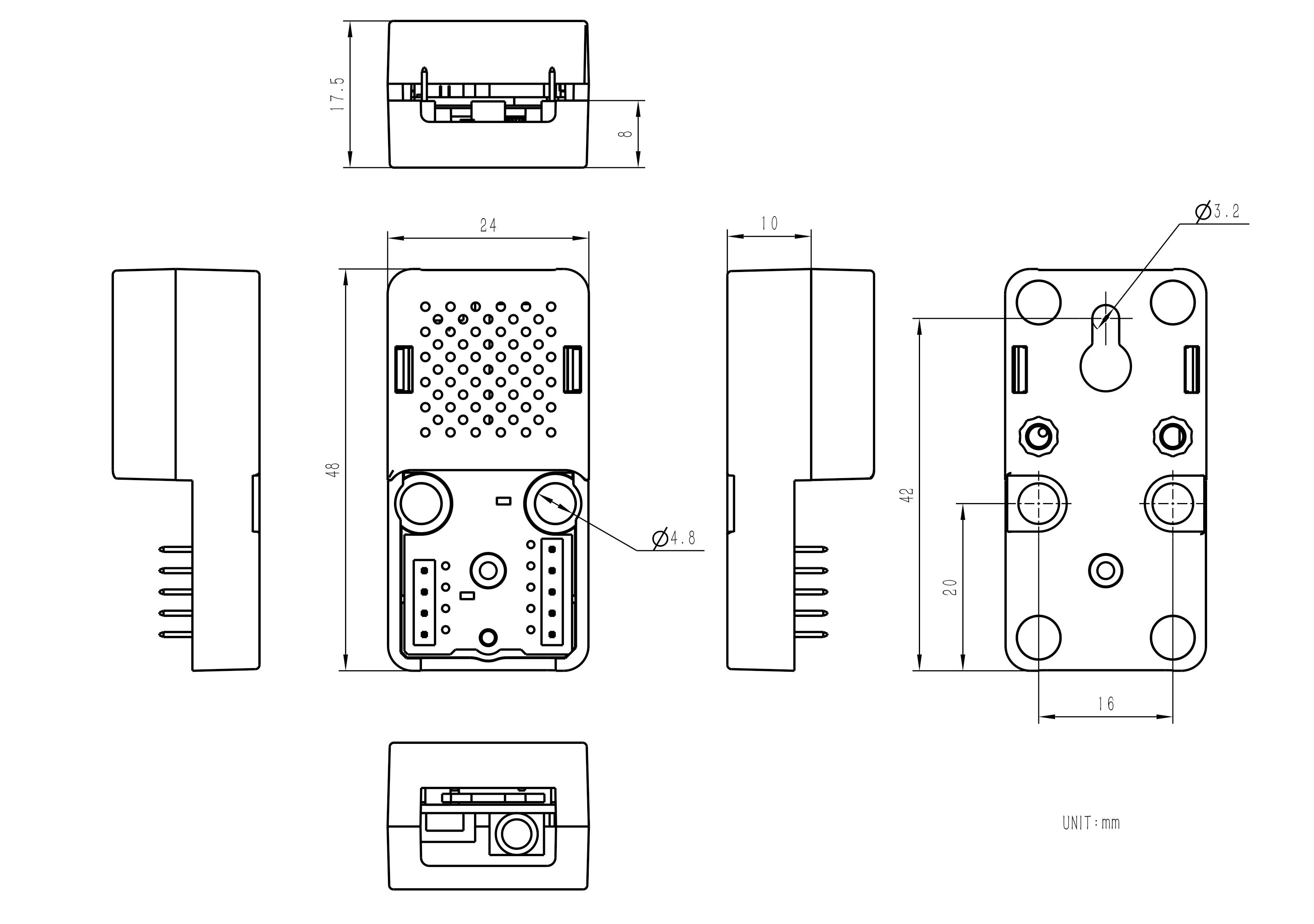

- Compact Design: 24.0x48.0x18.0 mm form factor
- Development Support: Arduino, UiFlow1, UiFlow2, and EasyLoader
Applications
- Digital audio players
- Wi-Fi speakers
- Wireless audio devices
- Voice-prompt systems
- IoT notification devices
- Embedded sound systems
- microSD-based music players
- Smart home audio nodes
- Alarm and status-tone systems
- Interactive electronics
- Educational audio projects
- ATOM-series audio expansion
Model Size
Package Includes:
- 1 x Atomic SPK Base
- 1 x 1W@8Ω Speaker
