M5Stack M5GO Battery Bottom2 (for Core2 only)

M5Stack

No reviews yet Write a Review
SKU:
558-A014-C
MPN:
A014-C
M5Stack A014-C M5GO Bottom2 Core2 expansion base with 500mAh battery, MPU6886 IMU, RGB LEDs, and Grove ports
M5Stack A014-C M5GO Bottom2 is a Core2 expansion base with an MPU6886 6-axis IMU, LMD4737 digital microphone, 500mAh battery, 10 SK6812 RGB LEDs, dual HY2.0-4P ports, and magnetic pogo-pin charging and I2C expansion. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹2,277.64 inc. GST
₹1,930.20 ex. GST
9 people looking at this.

Technical Specifications

Brand:
M5Stack
Microphone:
LMD4737
LED:
SK6812x10
IMU:
MPU6886
Product Size:
54.0x54.0x15.0mm
Product Weight:
30.0g
Package Size:
132.0x95.0x16.0mm
Gross Weight:
47.4g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:

Core2 Expansion Base with 500mAh Battery, MPU6886 IMU, Digital Microphone, and RGB LEDs

The M5Stack A014-C Base M5GO Bottom2 is an expansion base designed specifically for M5Stack Core2. It integrates an MPU6886 6-axis IMU, LMD4737 digital microphone, 500mAh lithium battery, and 10 programmable SK6812 RGB LEDs. The built-in motion sensor and microphone extend Core2 with motion and audio-input capabilities, while the dual RGB light bars provide programmable visual indication and lighting effects.

Two HY2.0-4P expansion ports expose ADC, DAC, and UART signals for connecting sensors and peripheral modules. A bottom pogo-pin interface supports magnetic charging through the onboard TP4057 charging IC and also exposes the Core2 I2C bus for compatible magnetic expansion accessories. Integrated magnets and LEGO-compatible mounting holes simplify mechanical installation in portable controllers, IoT devices, educational projects, and custom Core2 systems.

Key Features

  • Core2 Compatibility: Designed specifically for M5Stack Core2
  • 6-Axis IMU: Integrated MPU6886 motion sensor
  • Digital Microphone: Integrated LMD4737 microphone
  • Built-In Battery: 500mAh rechargeable lithium battery
  • RGB Lighting: 10 × programmable SK6812 RGB LEDs
  • Diffused Light Bars: Frosted light guides provide softer RGB illumination
  • Battery Charging: Integrated TP4057 charging-management IC
  • Magnetic Charging: Pogo-pin interface supports compatible magnetic charging bases
  • I2C Expansion: Pogo pins also expose the Core2 I2C bus
  • Port B Expansion: Provides DAC and ADC signals through HY2.0-4P
  • Port C Expansion: Provides UART RX and TX signals through HY2.0-4P
  • Magnetic Mounting: Integrated magnets for convenient attachment
  • LEGO Compatibility: Rear mounting-hole design supports LEGO-compatible structures
  • Development Support: Compatible with Arduino-based Core2 development and EasyLoader

Applications

  • Core2 hardware expansion
  • Portable IoT controllers
  • Motion-sensing projects
  • Audio-input applications
  • Battery-powered Core2 systems
  • RGB status indication
  • Portable data-logging systems
  • Robotics controllers
  • Sensor-interface projects
  • Educational electronics
  • Interactive embedded devices
  • Magnetic charging applications

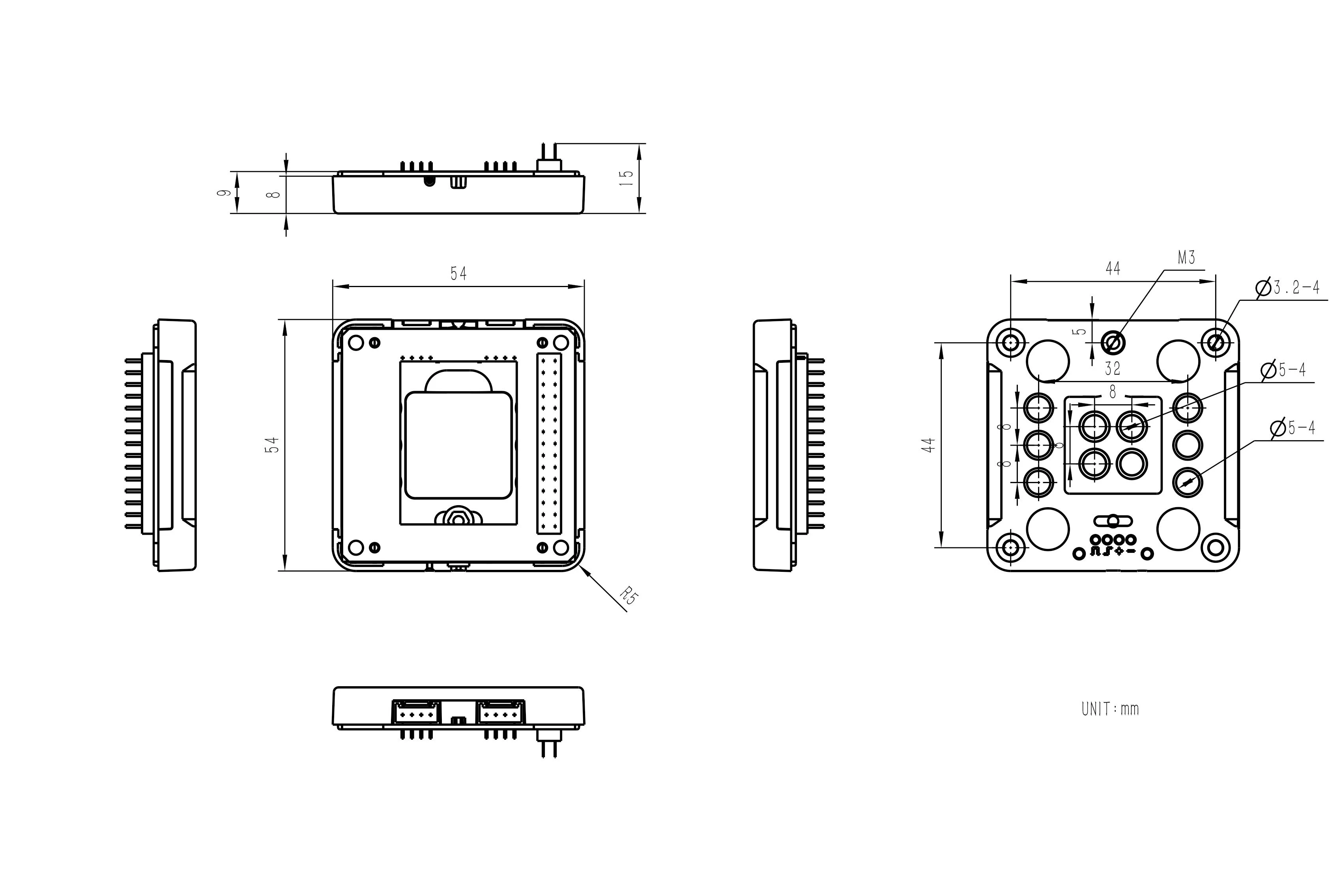

Model Size

Package Includes:

  • 1 x Base M5GO Bottom2
  • 2 x M3x16 Screws
  • 2 x M3x18 Screws
