M5Stack Core2 for AWS Kit v1.3 Development Kit for AWS IoT Learning

Resources:
Documents

ESP32 AWS IoT Development Kit With Hardware Security, 2.0-Inch Touchscreen And Sensor Expansion

The M5Stack K010-AWS-V13 Core2 for AWS V1.3 is an ESP32-based development kit designed for AWS IoT learning, connected-device prototyping, secure edge-data acquisition, and smart-control applications. It combines the Core2 main controller with the M5GO Bottom2 V1.3 expansion base and uses the ESP32-D0WDQ6-V3 dual-core Xtensa LX6 processor operating at up to 240 MHz. The system provides 520 KB SRAM, 16 MB flash, 8 MB PSRAM, 2.4 GHz Wi-Fi, a 2.0-inch 320 x 240 capacitive touchscreen, and an ATECC608B-TNGTLSU-G hardware cryptographic chip for security-focused IoT development.

The integrated hardware provides a complete platform for interactive and connected embedded projects. Core2 For AWS V1.3 includes a BMI270 6-axis IMU, SPM1423 PDM microphone, 1 W speaker, BM8563 RTC, vibration motor, microSD card slot, 500 mAh lithium-ion battery, and 10 programmable SK6812 RGB LEDs. HY2.0-4P interfaces, the M5-Bus, USB Type-C, and Pogo Pin connections provide flexible peripheral expansion. The magnetic base and LEGO-compatible mounting design further support rapid prototyping for smart-home security terminals, industrial monitoring, trusted sensor-data collection, and cloud-connected IoT systems.

Key Features

• ESP32 Dual-Core Controller: ESP32-D0WDQ6-V3 with 2 Xtensa 32-bit LX6 cores operating at up to 240 MHz
• Memory Resources: Provides 520 KB SRAM, 16 MB flash, and 8 MB PSRAM
• Hardware Security: Integrated ATECC608B-TNGTLSU-G cryptographic chip supports security-focused IoT applications
• Wireless Connectivity: Integrated 2.4 GHz Wi-Fi supports cloud-connected and local-network applications
• Capacitive Touchscreen: 2.0-inch IPS LCD provides 320 x 240 pixel resolution with FT6336U capacitive-touch control
• Motion Sensing: BMI270 6-axis IMU combines a 3-axis accelerometer and 3-axis gyroscope
• Integrated Microphone: SPM1423 PDM microphone supports voice, sound, and audio-input applications
• Audio Output: NS4168 I2S amplifier drives the integrated 1 W speaker
• Real-Time Clock: BM8563 RTC supports timekeeping and time-based application functions
• Visual Feedback: 10 programmable SK6812 RGB LEDs provide status and notification indication
• Haptic Feedback: Built-in vibration motor supports tactile alerts and interactive applications
• Portable Power: Integrated 500 mAh, 3.7 V lithium-ion battery supports stand-alone operation
• Power Management: AXP192 PMU manages system power and battery functions
• Expandable Storage: microSD card slot supports removable data and application storage
• Peripheral Expansion: HY2.0-4P ports and M5-Bus provide access to I2C, GPIO, ADC, DAC, UART, and other interfaces
• Magnetic Charging: Pogo Pin interface supports magnetic charging and exposes the I2C bus
• Development Support: Compatible with UIFlow1, UIFlow2, Arduino IDE, ESP-IDF, and PlatformIO

Applications

• AWS IoT learning and development
• IoT controllers
• Smart-home security terminals
• Secure edge-data acquisition
• Cloud-connected sensor systems
• Industrial monitoring
• Smart-building automation
• Wireless data logging
• Human-machine interfaces
• Motion-monitoring systems
• Environmental data acquisition
• Embedded security projects
• Product prototype development
• DIY electronics projects

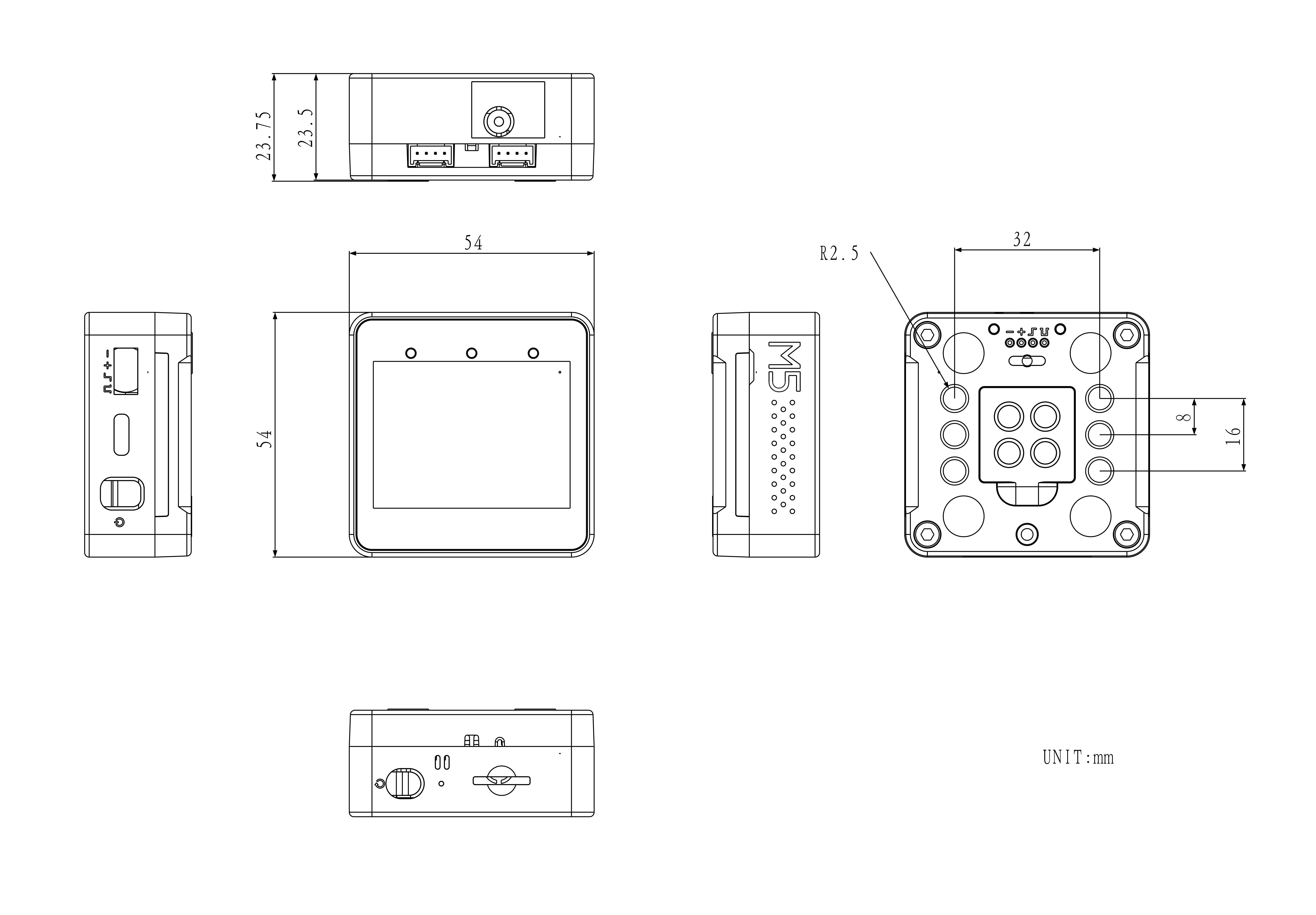

Model Size

Package Includes:

• 1 x Core2 For AWS v1.3
• 1 x USB Type-C Cable (50cm)
• 1 x Hex Key L-Shape 2.5mm (For M3 Screw)
