M5Stack Core2 ESP32 loT Development Kit v1.3

M5Stack

No reviews yet Write a Review
SKU:
558-K010-V13
MPN:
K010-V13
M5Stack K010-V13 Core2 v1.3 ESP32 IoT development kit with 2.0-inch capacitive touchscreen
M5Stack K010-V13 Core2 v1.3 is an ESP32 IoT development kit featuring a 240 MHz dual-core processor, 16MB Flash, 8MB PSRAM, 2.0-inch capacitive touchscreen, BMI270 6-axis IMU, microphone, speaker, RTC, 500mAh battery, and Grove expansion interface. View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹7,235.75 inc. GST
₹6,131.99 ex. GST
19 people looking at this.

Technical Specifications

Brand:
M5Stack
SoC:
ESP32-D0WDQ6-V3 @ Xtensa® 32-bit LX6 dual-core processor, clock frequency 240MHz
Flash:
16MB
PSRAM:
8MB
Wi-Fi:
2.4 GHz Wi-Fi
Input Voltage:
5V @ 500mA
Host Interface:
USB Type-C x 1, GROVE (I2C+I/O+UART) x 1
LED:
Green Power Indicator
Buttons:
Power Button, RST Button, Screen Virtual Buttons x 3
Vibration Alert:
Vibration Motor
IPS LCD Screen:
2.0 inch @320 x 240 ILI9342C
Capacitive Touch IC:
FT6336U
Microphone:
SPM1423
I2S Amplifier:
NS4168
IMU:
BMI270
RTC:
BM8563
PMU:
AXP192
USB-TTL:
CH9102F
Lithium Battery:
3.7V @ 500mAh
RTC Battery:
MS412FE 3V 1.0mAh Rechargeable Micro Lithium Battery
Charging Parameters:
Charging Current: 0.219A Current After Full Charge (Power Off): 0.055A Current When Fully Charged (Power On): 0.147A
Antenna:
2.4G 3D Antenna
Operating Temperature:
0 ~ 60 C
Base Screw Specification:
Hex Countersunk M3
Internal PCB Reserved Interface:
Battery Interface (Spec: 1.25mm-2P), USB Line Interface (Spec: 1.25mm-4P)
Product Size:
54.0x54.0x16.5mm
Product Weight:
58.8g
Package Size:
80.0x59.9x21.6mm
Gross Weight:
88.2g

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources:
Documents

ESP32 IoT Development Kit with 2.0-Inch Touchscreen and BMI270 IMU

The M5Stack K010-V13 Core2 v1.3 is a highly integrated ESP32 IoT development kit built around the ESP32-D0WDQ6-V3, featuring a dual-core Xtensa 32-bit LX6 processor that runs up to 240 MHz. It combines 16MB Flash, 8MB PSRAM, 2.4 GHz Wi-Fi, and a 2.0-inch 320 × 240 capacitive touchscreen in a compact controller. Three programmable touch zones on the front can function as virtual buttons, while the built-in vibration motor provides tactile feedback for interactive applications.

Core2 v1.3 retains the original Core2's AXP192 power management architecture while upgrading the motion sensor to a BMI270 6-axis IMU. It also integrates an SPM1423 microphone, NS4168 I2S audio amplifier with speaker, BM8563 RTC, microSD card slot, 500mAh lithium battery, and HY2.0-4P expansion interface. Support for UiFlow1, UiFlow2, Arduino IDE, ESP-IDF, and PlatformIO makes the kit suitable for IoT controllers, smart home systems, motion-aware devices, human-machine interfaces, and general embedded development.

Key Features

  • ESP32-D0WDQ6-V3 dual-core processor operating at up to 240 MHz
  • 16MB Flash memory
  • 8MB PSRAM
  • 520KB SRAM
  • 2.4 GHz Wi-Fi connectivity
  • 2.0-inch 320 × 240 IPS color display
  • FT6336U capacitive touch controller
  • 3 programmable virtual touch buttons
  • BMI270 6-axis IMU with 3-axis accelerometer and 3-axis gyroscope
  • SPM1423 digital microphone for audio capture
  • Built-in speaker with NS4168 I2S audio amplifier
  • Integrated vibration motor for tactile feedback
  • BM8563 real-time clock
  • AXP192 power management unit
  • Built-in 3.7V 500mAh lithium battery
  • microSD card slot for expandable storage
  • HY2.0-4P Grove expansion interface
  • USB Type-C interface
  • CH9102F USB-to-TTL interface
  • Green power indicator LED
  • Supports UiFlow1, UiFlow2, Arduino IDE, ESP-IDF, and PlatformIO

Applications

  • IoT controllers and terminals
  • Human-machine interfaces
  • Smart home devices
  • Motion and pose detection
  • Embedded control systems
  • Interactive touchscreen devices
  • Audio-enabled IoT projects
  • Data logging applications
  • DIY electronics projects
  • Rapid embedded system prototyping

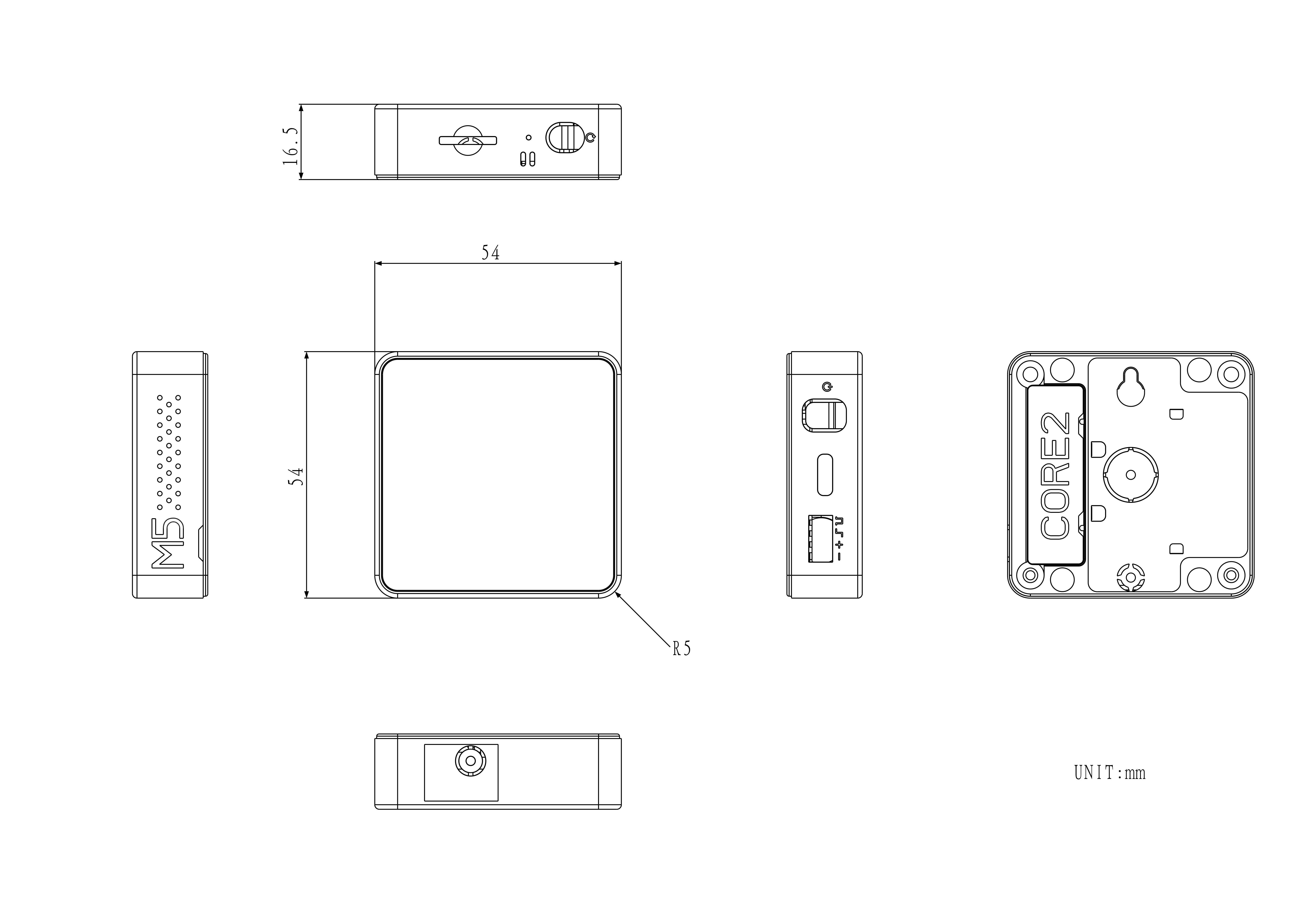

Model Size

Package Includes:

  • 1 x Core2 v1.3
  • 1 x USB Type-C Cable (20cm)
  • 1 x Hex Key L-Shape 2.0mm (For M2.5 Screw)
