190 mAh Rechargeable Battery Expansion with IP5303 Power Management for M5Stack ATOM Series
The M5Stack ATOM TailBat is a compact external battery accessory designed to provide portable power for compatible M5Stack ATOM controllers. It connects directly to the tail of an ATOM device and integrates a 190 mAh rechargeable lithium battery managed by the IP5303 power-management IC. This plug-and-play design allows ATOM-based projects to operate without remaining connected to a fixed USB power source, making it useful for mobile IoT devices, portable controllers, and compact embedded prototypes.
TailBat includes a front power button and LED status indicator for convenient power and charging control. A single button press turns the power on, while a double press turns it off. The indicator flashes during charging and remains illuminated when the battery is fully charged. Its pass-through interface design preserves the original ATOM wiring and expansion functionality after installation. The built-in battery is charged through the USB Type-C interface only and cannot be charged through the Grove interface.
Key Features
- ATOM Series Compatibility: Designed as an external battery accessory for compatible M5Stack ATOM controllers.
- 190 mAh Battery: Integrated rechargeable lithium battery provides portable power for compact ATOM-based projects.
- IP5303 Power Management: Built-in IP5303 IC manages battery power and charging functions.
- Plug-and-Play Design: Connects directly to the ATOM tail without requiring a separate battery-wiring arrangement.
- Power Button Control: Single-click operation turns the power on, while double-click operation turns it off.
- LED Power Indicator: Red indicator provides visual feedback for operating and charging status.
- Charging Indication: LED flashes during battery charging and remains on when charging is complete.
- USB Type-C Charging: Built-in battery is charged through the Type-C interface.
- Pass-Through Interface: Preserves the original ATOM interface and wiring functionality while the battery accessory is connected.
- Mobile Power Solution: Supports portable use of ATOM-based IoT, sensing and controller projects.
- Compact Integration: Adds battery functionality without significantly increasing wiring complexity.
- Reusable Power Accessory: Rechargeable design supports repeated portable operation.
Applications
- Portable ATOM projects
- Mobile IoT devices
- Wireless sensor nodes
- Handheld controllers
- Embedded prototypes
- Portable smart-home controllers
- Battery-powered automation nodes
- Mobile monitoring devices
- Educational electronics
- Compact robotics projects
- Wearable prototypes
- M5Stack ATOM development projects

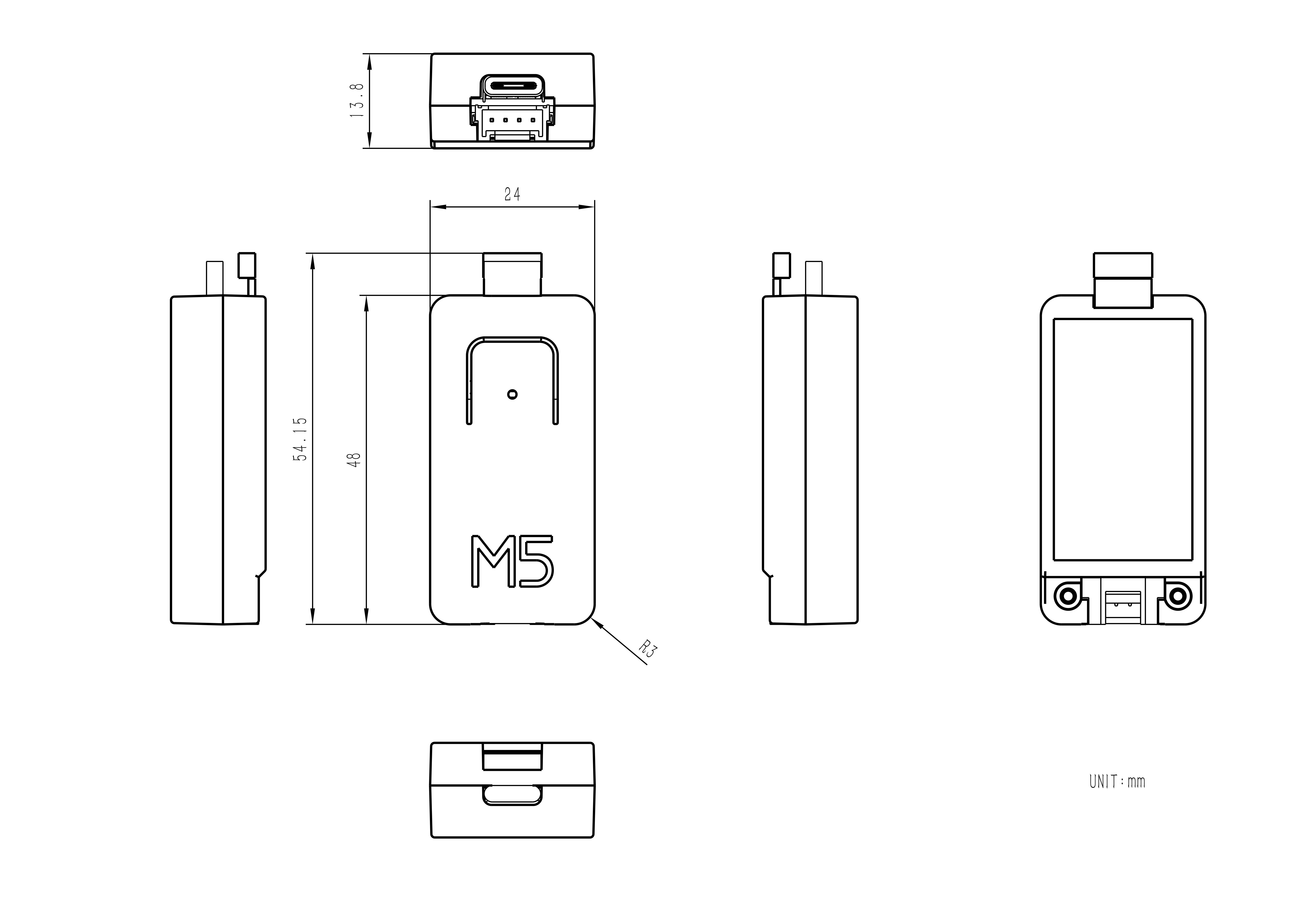

Model Size
Package Includes:
