ESP32 IoT Development Kit With 2.0-Inch IPS Display, 16 MB Flash And Expandable I-O
The M5Stack K001-V27 Basic V2.7 is an ESP32-based IoT development kit designed for product prototyping, industrial control, smart-building, automation, and embedded-system applications. It uses the ESP32-D0WDQ6-V3 SoC with 2 Xtensa 32-bit LX6 processor cores operating at up to 240 MHz, together with 520 KB SRAM and 16 MB flash memory. Integrated 2.4 GHz Wi-Fi, Bluetooth 4.2 BR/EDR, and Bluetooth LE support enable wireless connectivity for connected devices and remote-control systems.

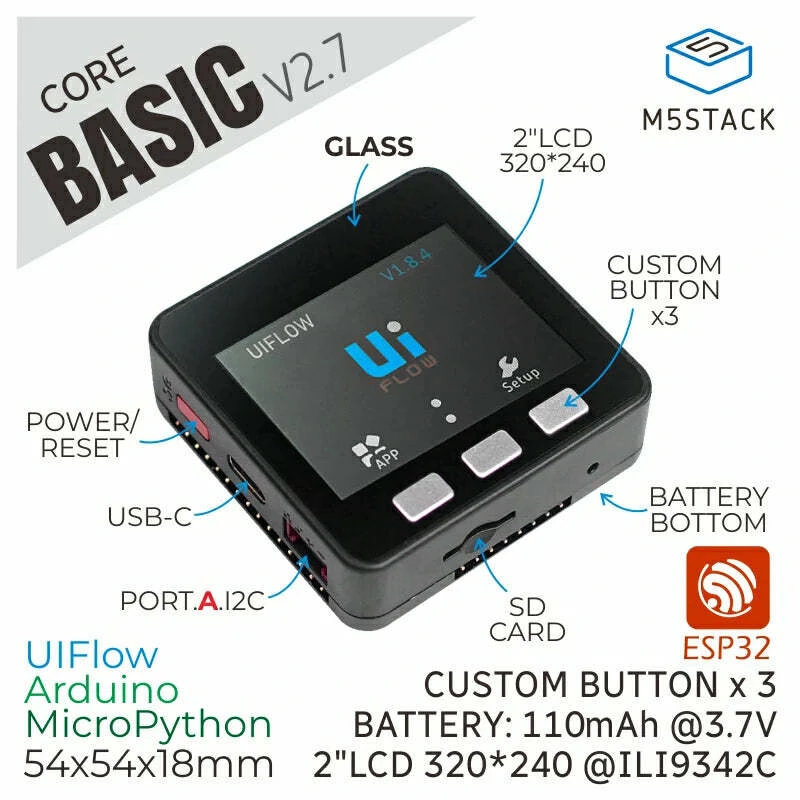

Basic V2.7 integrates a 2.0-inch 320 x 240 IPS display, 1 W speaker, TF card slot, 3 programmable buttons, USB Type-C interface, and a 110 mAh rechargeable lithium battery within a full-cover PC enclosure. The bottom expansion interface exposes 15 I-O lines and supports common resources including ADC, DAC, I2C, UART, and SPI, allowing additional modules and sensors to be integrated. Compatibility with the M5Stack stackable-module ecosystem and development environments including UIFlow1, UIFlow2, Arduino IDE, ESP-IDF, and PlatformIO makes it well-suited for both rapid development and complete embedded prototypes.
Key Features
- ESP32 Dual-Core Processor: ESP32-D0WDQ6-V3 with 2 Xtensa 32-bit LX6 cores operating at up to 240 MHz
- Memory Capacity: Provides 520 KB SRAM and 16 MB flash memory for firmware and application data
- Wireless Connectivity: Supports 2.4 GHz Wi-Fi, Bluetooth 4.2 BR/EDR, and Bluetooth LE
- IPS Display: Integrated 2.0-inch 320 x 240 IPS display with up to 853 nit brightness
- Integrated Audio: Built-in 1 W speaker supports alerts, feedback, and audio-output applications
- Expandable Storage: TF card slot supports removable data storage
- Programmable Controls: Includes 3 physical buttons for customised user-input functions
- 15 I-O Leads: Bottom expansion interface exposes multiple GPIO resources for peripheral integration
- Multiple Interfaces: Supports ADC, DAC, I2C, UART, SPI, and other ESP32 peripheral resources
- Stackable Design: Compatible with the M5Stack module and sensor ecosystem for functional expansion
- Built-In Battery: Integrated 110 mAh, 3.7 V lithium battery supports portable operation
- USB Type-C Interface: Provides convenient power and programming connectivity
- Integrated Antenna: Built-in 2.4 GHz 3D antenna supports wireless communication without an external antenna
- Full-Cover Enclosure: PC housing provides additional mechanical protection for embedded and control applications
- Development Support: Compatible with UIFlow1, UIFlow2, Arduino IDE, ESP-IDF, and PlatformIO
- FreeRTOS Support: ESP32 multitasking capabilities allow application tasks to be organised across dual-core processing resources
Applications
- IoT controllers
- Product prototype development
- Industrial-control systems
- Smart-home control
- Smart-building automation
- Wireless monitoring systems
- Human-machine interfaces
- Environmental-monitoring devices
- Sensor-data collection
- Embedded-system development
- Maker and DIY projects
- Automation controllers
- Educational electronics projects
- Portable connected devices

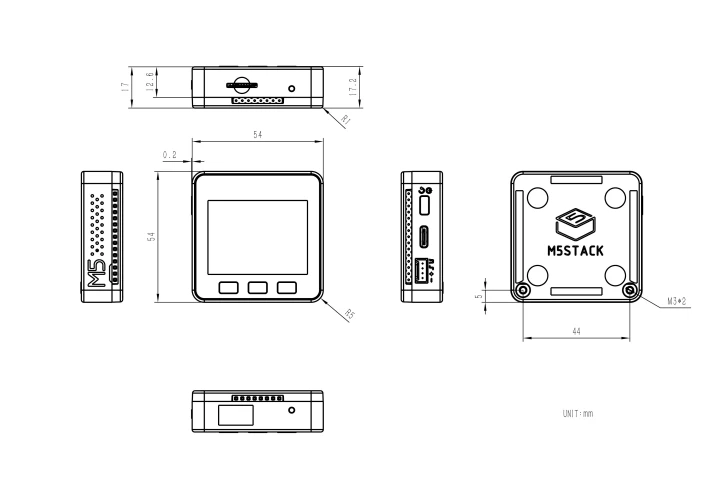

Model Size
Package Includes:
- 1 x Basic v2.7
- 10 x Dupont wires
- 1 x USB Type-C cable (20cm)
- 1 x User manual
