ATOM Series Motion-Control Base with 4-Channel Servo, 2-Channel DC Motor Drive and Real-Time Power Monitoring
The M5Stack Atomic Motion Base v1.2 is a compact motion-control and power-management base designed for M5Stack ATOM series controllers. It combines 4-channel servo control with 2-channel DC motor control, enabling a single ATOM host to operate multiple actuators in robotics, automation, and portable motion-control projects. An STM32 controller and RZ7899 motor-drive solution handle actuator control, while I2C communication provides a straightforward interface between the base and the host controller.
The base integrates a rechargeable 900 mAh 18350 lithium battery with dedicated battery and system-protection functions. A DW01-A single-cell lithium battery protection IC provides overcharge, over-discharge, and short-circuit protection, while the INA226AIDGSR power-monitor IC measures battery voltage, current, and power in real time. Integrated overload protection, 2 HY2.0-4P expansion interfaces, an independent power switch, removable battery design, and magnetic mounting make the Atomic Motion Base v1.2 well-suited for portable robots, actuator systems, and sensor-enabled control projects.
Key Features
- ATOM Series Compatibility: Designed for use with compatible M5Stack ATOM series main controllers.
- 4-Channel Servo Control: Provides 4 servo interfaces for multi-axis and multi-actuator motion-control applications.
- 2-Channel DC Motor Control: Drives 2 DC motor channels for robotic wheels, mechanisms, and other motorised systems.
- STM32 Control: Integrated STM32 controller supports coordinated servo and DC motor operation.
- RZ7899 Motor Drive: Uses RZ7899 motor-drive circuitry for DC motor control.
- I2C Communication: Provides a stable digital communication interface between the ATOM controller and motion base.
- INA226 Power Monitor: INA226AIDGSR monitors system voltage, current, and power in real time.
- 900 mAh Battery: Includes a rechargeable 18350-format lithium battery with 900 mAh capacity.
- Battery Protection: DW01-A provides overcharge, over-discharge, and short-circuit protection for the single-cell lithium battery.
- Overload Protection: Integrated protection helps safeguard the motion-control system during excessive-load conditions.
- Dual HY2.0-4P Expansion: Includes 2 HY2.0-4P interfaces for compatible sensors and expansion devices.
- Sensor Expansion: Supports integration of temperature, humidity, light, and other compatible sensor modules.
- Independent Power Switch: Dedicated switch provides convenient system power control.
- Removable Battery: Battery can be removed when replacement or separate handling is required.
- Magnetic Mounting: Rear magnetic design simplifies temporary mounting to compatible surfaces and structures.
- Development Support: Compatible with UIFlow1, UIFlow2, and Arduino IDE.
Applications
- Mobile robots
- Wheeled robotics
- Servo-controlled mechanisms
- Robot arms
- Smart toys
- Portable automation systems
- Multi-actuator prototypes
- Educational robotics
- Sensor-enabled robots
- Pan-and-tilt systems
- ATOM motion-control projects
- Battery-powered embedded systems
- DC motor control projects
- Interactive mechanical systems

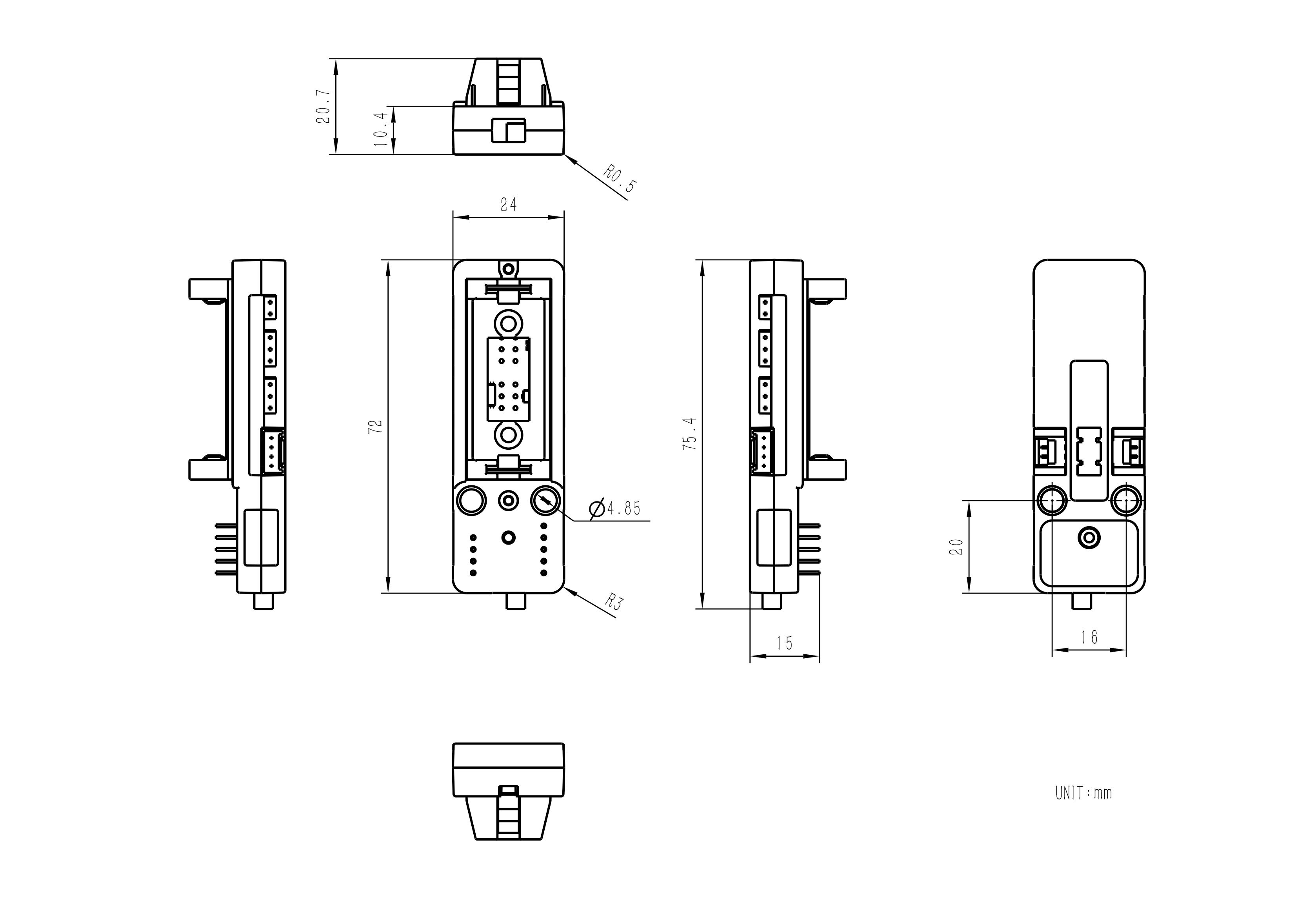

Model Size
Package Includes:
- 1 x Atomic Motion Base v1.2
- 1 x 18350 specification 900mAh battery
