PoE Ethernet Expansion Base with W5500 Controller, 10/100 Mbps Networking and 8 Hardware Sockets for ATOM Series
The M5Stack Atomic PoE Base is a wired Ethernet expansion base designed for compatible M5Stack ATOM series controllers. It integrates the W5500 embedded Ethernet controller with a hardware TCP/IP protocol stack, providing reliable wired-network connectivity for embedded and IoT applications. Support for 10Base-T and 100Base-T Ethernet enables the base to meet network-access requirements in automation, remote-control, and other applications where a stable physical network connection is preferred.
The Atomic PoE Base also supports IEEE 802.3af Power over Ethernet, allowing a compatible ATOM controller and network interface to receive power through a PoE-enabled switch or hub without requiring a separate local power connection. The W5500 provides 8 independent hardware sockets for simultaneous network communication and supports TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE protocols. Compatibility with Atom-Lite, Atom-Matrix, AtomS3 and AtomS3-Lite makes the base suitable for compact wired IoT terminals and remotely deployed embedded controllers.
Key Features
- W5500 Ethernet Controller: Integrates the W5500 embedded Ethernet controller with a hardware TCP/IP protocol stack.
- PoE Power Support: Supports IEEE 802.3af Power over Ethernet for combined network communication and power delivery.
- Reduced Wiring: A compatible PoE switch or hub can provide both network connectivity and device power through the Ethernet connection.
- 10/100 Mbps Ethernet: Integrated 10Base-T and 100Base-T PHY supports standard wired Ethernet networking.
- 8 Hardware Sockets: Provides 8 independent hardware sockets for simultaneous network connections.
- TCP Protocol Support: Supports hardware-assisted TCP communication for reliable connection-oriented applications.
- UDP Protocol Support: Enables low-overhead datagram communication for compatible IoT and control systems.
- Multiple Network Protocols: Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE.
- ATOM Series Compatibility: Compatible with Atom-Lite, Atom-Matrix, AtomS3 and AtomS3-Lite controllers.
- Stable Wired Connectivity: Provides an alternative to wireless networking for applications requiring physical Ethernet access.
- Embedded Network Expansion: Adds Ethernet capability to compact ATOM-based embedded and IoT systems.
- Remote Deployment: PoE capability simplifies installation of controllers positioned away from local power outlets.
Applications
- Remote-control systems
- Wired IoT terminals
- Ethernet-enabled embedded systems
- Industrial monitoring
- Smart-building controllers
- Automation systems
- Remote sensor nodes
- Networked control terminals
- Data-acquisition devices
- Smart-home gateways
- Machine monitoring
- PoE-powered IoT devices
- ATOM Ethernet projects
- Embedded network interfaces

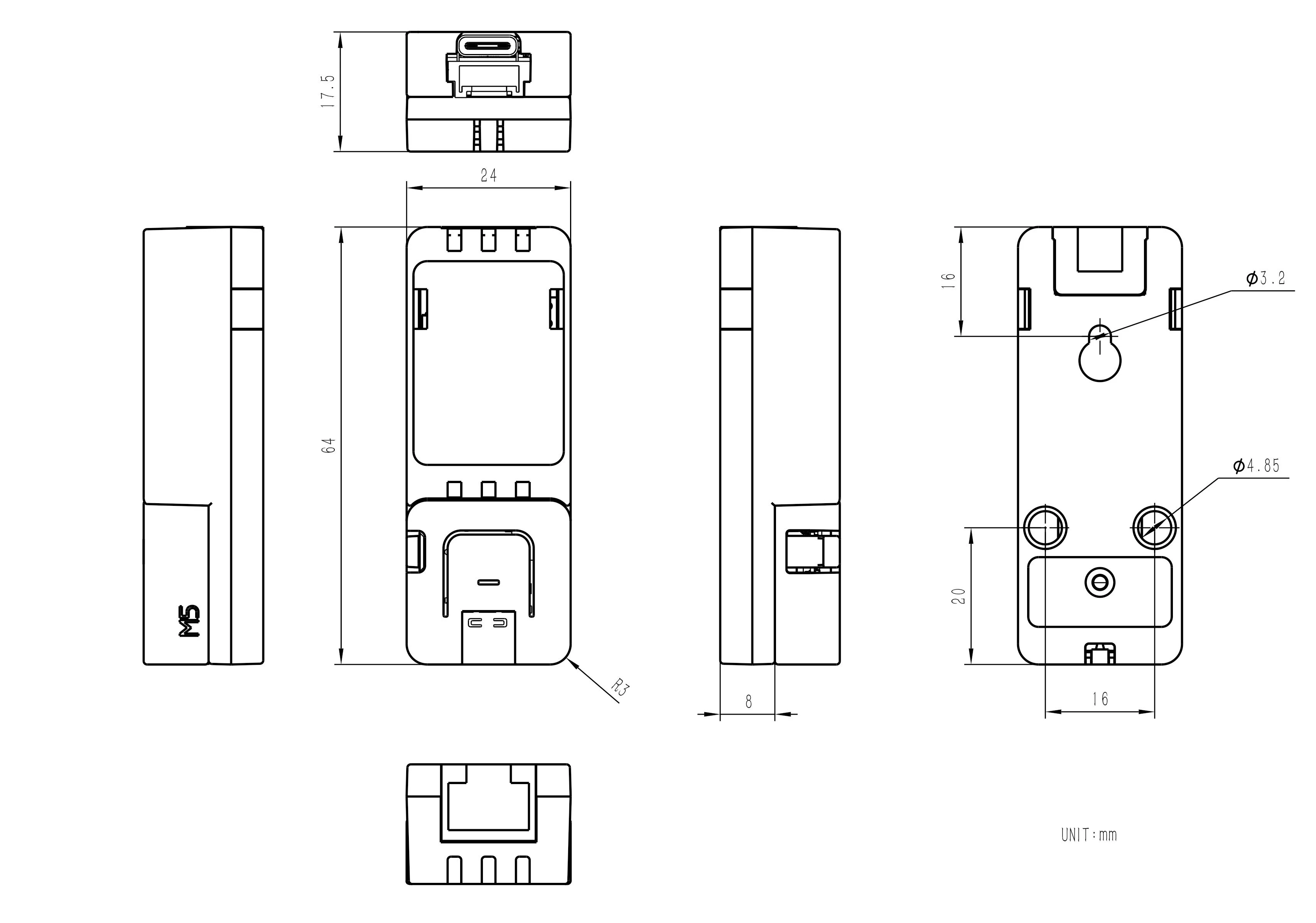

Model Size
