Smart Wi-Fi Power Socket with HLW8032 Energy Metering, 10 A Relay Control and ATOM Integration
The M5Stack Atom Socket Kit is a smart power-control and energy-monitoring solution designed around the M5Stack ATOM ecosystem. It integrates the HLW8032 high-precision energy-metering IC, allowing electrical parameters including line voltage, current, active power, apparent power, and power factor to be measured through UART communication. An internal single-channel relay controls the connected load, supporting AC 100 V to 120 V at up to 10 A for compatible appliances and electrical equipment.
When paired with the included Atom-Lite controller and its Wi-Fi connectivity, the socket can be integrated into connected smart-home and remote-control applications for switching loads and monitoring energy usage. The HLW8032 uses a Sigma-Delta ADC architecture and supports a 1000:1 dynamic measurement range, while the HY2.0-4P interface provides additional external control connectivity for relay input and button-output signals. The Japanese/American-standard socket format and PSE-standard design make it suitable for compatible regional applications.
Key Features
- HLW8032 Energy Metering: Measures line voltage, current, active power, apparent power, and power factor for real-time electrical monitoring.
- Single-Channel Relay: Controls the connected power output through an integrated relay.
- 10 A AC Load Control: Supports compatible AC loads from 100 V to 120 V at up to 10 A.
- 1000 W Recommended Load: Designed for compatible applications with recommended load power up to 1000 W.
- High Measurement Accuracy: Active-power measurement error is approximately 0.2%.
- Current Measurement Accuracy: Effective current measurement error is approximately 0.5%.
- Voltage Measurement Accuracy: Effective-voltage measurement error is approximately 0.5%.
- 1000:1 Dynamic Range: Supports a broad measurement range for varying electrical loads.
- UART Communication: HLW8032 communicates at 4800 bps for electrical-parameter data acquisition.
- Sigma-Delta ADC: Integrated high-precision ADC architecture supports accurate energy metering.
- Wi-Fi Connectivity: Atom-Lite controller enables network-connected switching and monitoring applications.
- HY2.0-4P Interface: External interface supports compatible relay-signal input and button-signal output functions.
- PSE-Standard Socket: Uses a Japanese/American-style socket configuration suitable for compatible applications.
- Smart-Home Integration: Suitable for remotely controlled appliances and connected energy-monitoring systems.
Applications
- Energy-metering sockets
- Smart Wi-Fi sockets
- Smart-home appliance control
- Remote power switching
- Appliance energy monitoring
- IoT power monitoring
- Connected electrical outlets
- Smart-building devices
- Home automation
- Power-consumption logging
- Remote equipment control
- Embedded energy-management projects

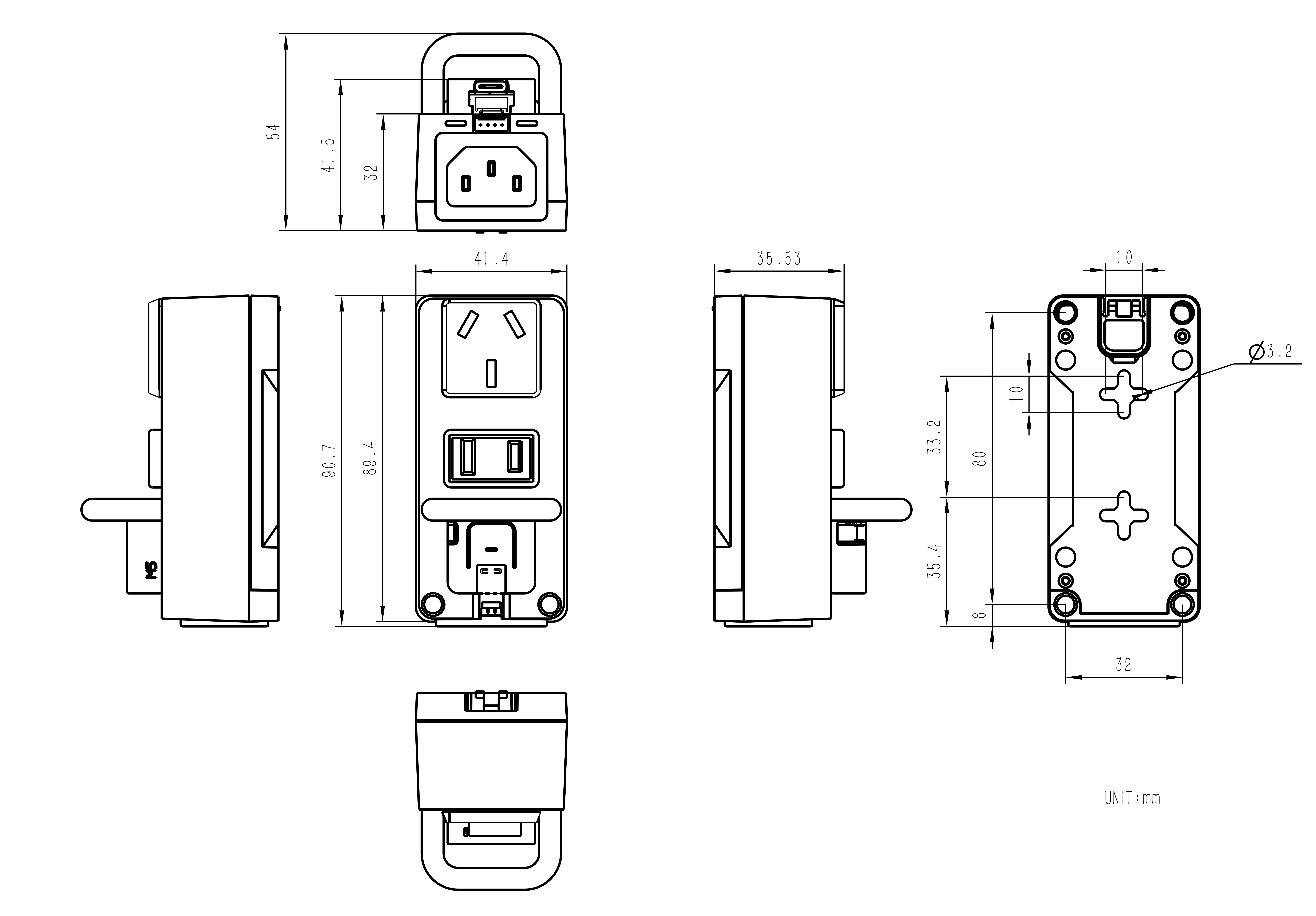

Model Size
Package Includes:
- 1 x Atom-Lite
- 1 x Atom Socket
