Dual-Channel Wi-Fi and RS485 Relay Switch Kit with Atom-Lite Controller
The M5Stack K042 Atom Hub AC/DC Remote Control Switch Kit is a programmable dual-channel relay controller designed for remotely switching AC or DC loads. The kit combines the Atom Switch base with an included Atom-Lite controller, allowing two independent circuits to be controlled through Wi-Fi, RS485, or custom embedded logic. Each relay channel supports loads up to 250VAC/10A, with an instantaneous current rating of 16A, making the kit suitable for smart switching, automation, lighting control, and equipment-control applications.
The Atom Switch integrates an AC-DC power circuit that provides 5V/1A power to the Atom controller and also supports 9–24V DC power through the RS485 interface. An onboard SP485EE transceiver enables RS485 communication and Modbus-based integration with industrial and building-automation networks. The HY2.0-4P Port A interface provides additional I2C or GPIO expansion. Short-circuit and overheat protection are integrated into the power circuitry, while the included rail clamp supports convenient installation in control systems.
Key Features
- Dual-channel programmable relay switch
- Includes M5Stack Atom-Lite ESP32 controller
- 2 independent relay channels
- Relay rating up to 250VAC/10A
- 16A instantaneous relay current
- Relay contacts provide NO, NC, and COM connections
- Built-in AC-DC power-supply circuit
- Provides 5V/1A DC power to the Atom controller
- 9–24V DC power input through RS485 interface
- Integrated SP485EE RS485 transceiver
- Supports Modbus communication
- Wi-Fi remote-control capability through Atom-Lite
- RS485 control for industrial communication
- Multiple Atom Switch units can be connected through RS485
- HY2.0-4P Port A expansion interface
- Supports I2C peripherals and general-purpose I/O
- Short-circuit protection
- Overheat protection
- PC plastic enclosure
- Rail-mount hardware included
- Suitable for smart switching and automation systems
Applications
- Smart switches
- Wi-Fi-controlled lighting
- Home automation
- Building automation
- Industrial relay control
- Remote equipment switching
- Pump and valve control
- Fan and ventilation control
- IoT appliance control
- RS485 automation networks
- Modbus-controlled devices
- Scheduled switching systems
- Remote power-control projects

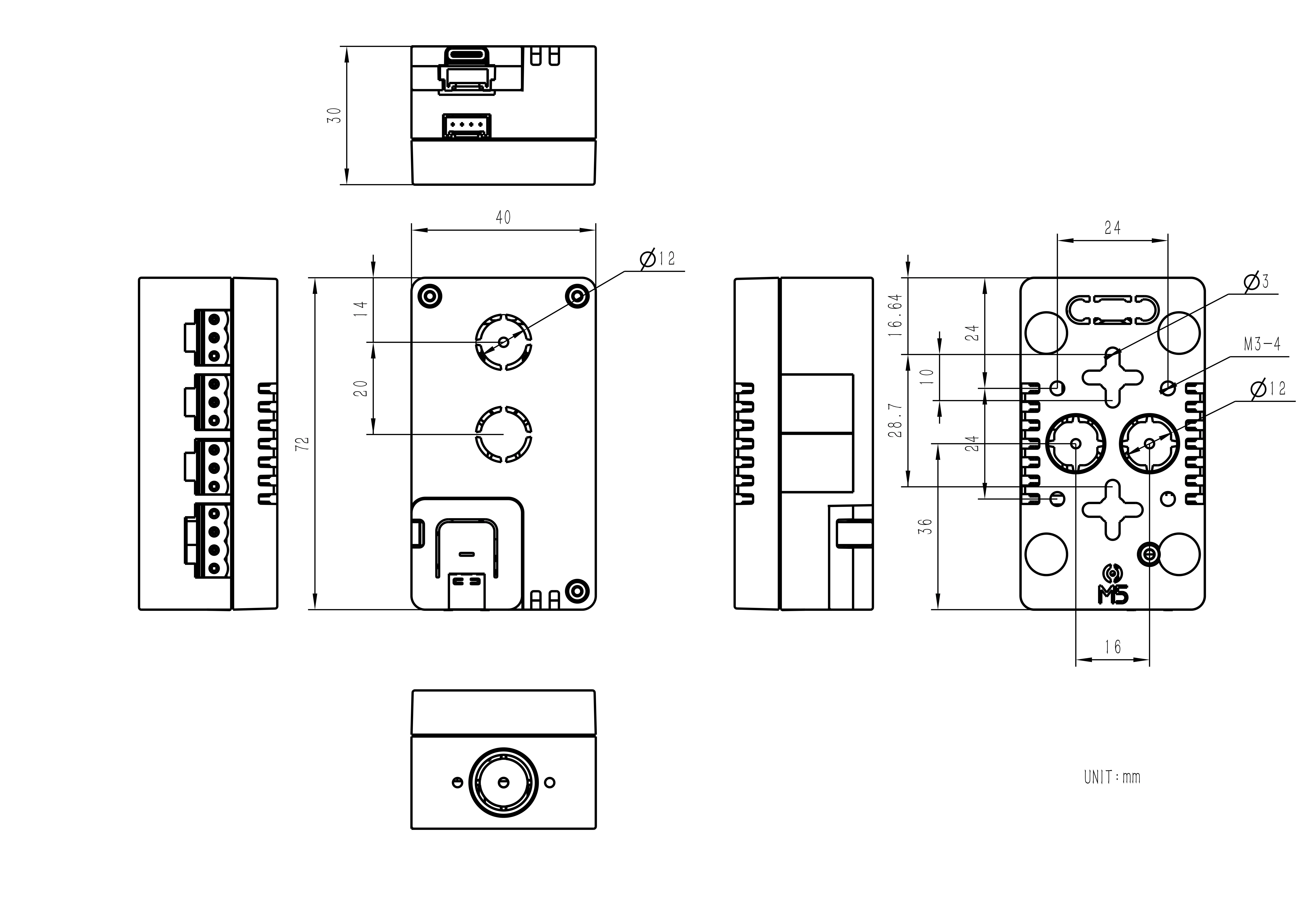

Model Size
Package Includes:
1 x Atom-Lite
1 x Atom Switch
1 x Double-sided tape
1 x Rail clamp
1 x HT3.96-4P terminal
3 x 3.96 x 3P male headers
1 x M4 hex key
1 x M2 hex key
2 x M4 x 10 mm hex socket head screws
1 x M2 x 20 mm hex socket head machine screw
1 x I/O Sticker
