7Semi L89 Breakout Multi-GNSS engines for GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS

1 review Write a Review
Evelta SKU:
004-CM-10119
Manufacturer Part Number:
CM-10119
₹1,410.10 inc. GST
₹1,195.00 ex. GST
Request a quote for higher quantities

Description

The Evelta L89 Breakout Multi-GNSS IRNSS-enabled integrates Quectel’s IRNSS-enabled GNSS module measuring 26.4mm × 18.4mm × 6.8mm, with two embedded antennas so it can work on L1 and L5 bands simultaneously. The board operates on 3.3V power supply and communicates with the target MCU through I2C / UART interface TX, RX, and a BAT connection pin for a backup power supply is also available. The L89 breakout can acquire and track GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS signals, reducing time-to-first-fix and allowing accurate navigation.

Key Features
  • 3.3V power supply
  • I2C / UART interface
  • Support IRNSS L5 band
  • Embedded patch antenna and chip antenna
  • Multi-GNSS engines for GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS
  • Support DGPS, SBAS (WAAS/EGNOS/MSAS/GAGAN)
  • Integrated LNAs for better sensitivity
  • Great anti-jamming performance due to multi-tone active interference canceller

How to Enable IRNSS (Indian Regional Navigation Satellite System (IRNSS) : NavIC)

Follow the steps given below-
  • Connect USB to serial converter to L89 and Open Serial port into Qnavigator.
  • To enable IRNSS please use the following AT command .
    • PSTMSETCONSTMASK,1024
  • Use External Active antenna with Open roof/sky.
  • L89 AT command manual can be downloaded from the resources link.
Resources

Evelta L89 Breakout Dimensions

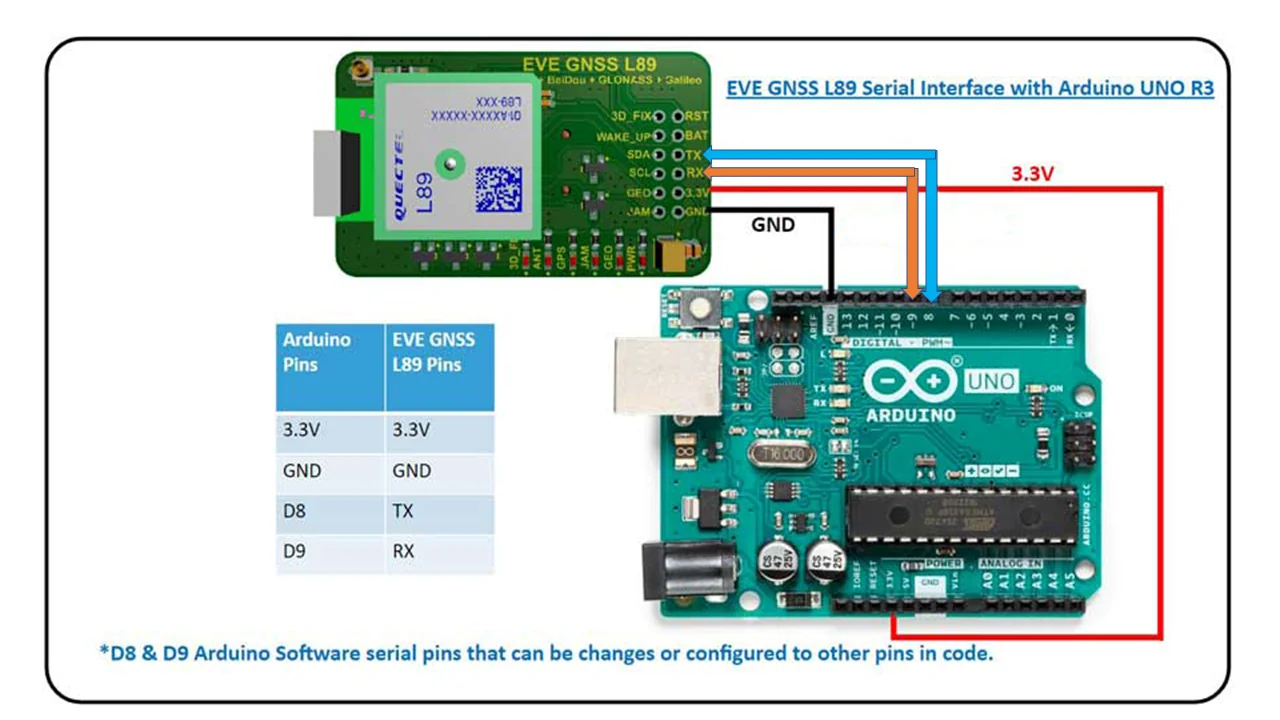

Evelta L89 Breakout Arduino Connection

Arduino Code for GPS Read

#include <SoftwareSerial.h> // Include the SoftwareSerial library
#define ARDUINO_GPS_RX 9 // Arduino RX pin connected to GPS TX
#define ARDUINO_GPS_TX 8 // Arduino TX pin connected to GPS RX
#define GPS_BAUD_RATE 9600 // The GPS Shield module defaults to 9600 baud
// Create a SoftwareSerial object called gps:
SoftwareSerial gpsPort(ARDUINO_GPS_TX, ARDUINO_GPS_RX);

// This is the hardware serial port on pins 0/1.
#define SerialMonitor Serial

void setup()
{
gpsPort.begin(GPS_BAUD_RATE);
SerialMonitor.begin(9600);
}

void loop()
{
if (gpsPort.available()) // If GPS data is available
SerialMonitor.write(gpsPort.read()); // Read it and print to SerialMonitor
if (SerialMonitor.available()) // If SerialMonitor data is available
gpsPort.write(SerialMonitor.read()); // Read it and send to GPS
}
