7Semi MC60 GSM/GPRS/GPS Arduino Shield: Empower Your Projects with Global Communication and Precise Positioning
The 7Semi MC60 GSM/GPRS/GPS Arduino Shield is a compact, high-performance module engineered to extend your Arduino’s capabilities with wireless communication and GNSS positioning. This advanced shield supports GSM, GPRS, and multi-constellation GNSS technologies, making it ideal for remote IoT deployments, asset tracking, telematics, and environmental monitoring. With seamless compatibility for Arduino UNO R3 and Arduino Mega boards, this shield delivers reliable, real-time data transfer and geo-positioning functionalities across global cellular networks.
Equipped with a quad-band GSM module and robust GPS capabilities, the shield ensures uninterrupted communication and precise location data in diverse environments. Integrated protocols including TCP, UDP, HTTP, HTTPS, and MQTT allow developers to create secure, scalable, and cloud-connected solutions. The onboard Micro SIM slot, integrated antenna, and wide voltage input (7V to 28V) make it deployment-ready across industries like logistics, agriculture, smart cities, and automotive telemetry.
Key Features
-
Global GSM/GPRS Connectivity: Supports 850/900/1800/1900 MHz frequencies for worldwide mobile access
-
Multi-GNSS Support: Tracks GPS, GLONASS, Galileo, BeiDou, and QZSS constellations for accurate navigation
-
Integrated Internet Protocols: Full support for TCP/UDP/FTP/PPP/HTTP/NITZ/NTP/PING/HTTPS/TCP/SSL/MQTT ensures maximum flexibility
-
Arduino-Compatible: Plug-and-play support with Arduino UNO R3 and Arduino Mega
-
High-Precision GNSS Receiver: 99 acquisition and 33 tracking channels for enhanced performance
-
Firmware Over-the-Air (QuecFOTA): Remote software updates simplify device maintenance
-
Bluetooth 3.0 Connectivity: Supports SPP and HFP-AG profiles for wireless control and communication
-
Wide Operating Temperature: Reliable from -40°C to +80°C, suitable for outdoor and industrial use
-
Power-Efficient Design: Operates from 7V to 28V with built-in voltage regulation
-
Micro SIM Support: Enables mobile network integration with any standard Micro SIM card
-
Onboard Antenna: No external antenna required, simplifying hardware setup
-
AT Command Support: Access advanced module control through UART interface
Package Includes
- 1 x GSM/GPRS/GNSS Bluetooth Shield
- 1 x Detachable GSM Antenna
- 1 x CR1220 Battery
- 1 x 2 Pin power connector cable
Resources

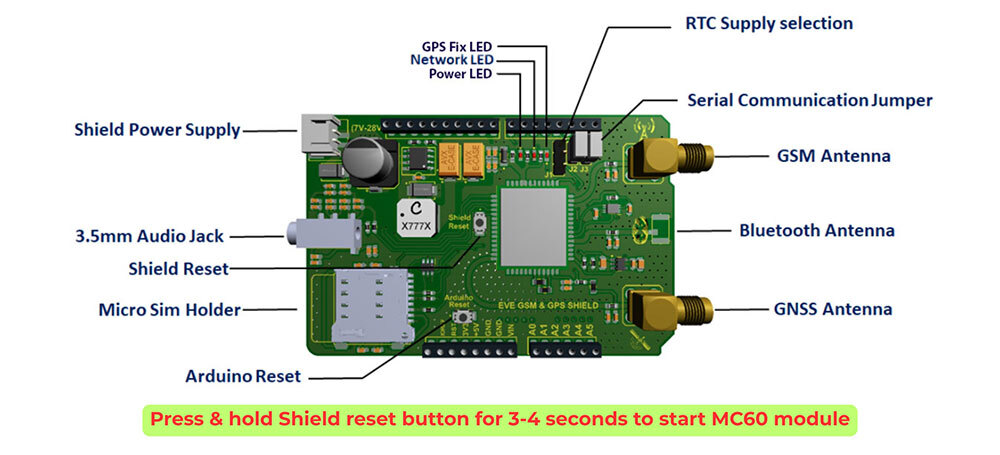

Board Layout
Board Dimensions
MC60 GSM/GPRS/GPS Arduino Code
#include <SoftwareSerial.h>
SoftwareSerial gsm(2, 3);
void setup()
{
Serial.begin(9600);
gsm.begin(9600);
}
void loop()
{
if(Serial.available()>0)
{
String data = Serial.readString();
Serial.println(data);
gsm.println(data);
}
if(gsm.available()>0)
{
String data = gsm.readString();
Serial.println(data);
}
}
Output with AT commands
AT
AT
OK
AT+QGNSSC=1
AT+QGNSSC=1
OK
AT+QIFGCNT=2
AT+QIFGCNT=2
OK
AT+QICSGP=1
AT+QICSGP=1
OK
AT+CREG?;+CGREG?
AT+CREG?;+CGREG?
+CREG: 0,0
+CGREG: 0,0
OK
AT+QGNSSTS?
AT+QGNSSTS?
+QGNSSTS: 1
OK
AT+QGNSSEPO=1
AT+QGNSSEPO=1
OK
AT+QGEPOAID
AT+QGEPOAID
OK
AT+QGNSSRD?
AT+QGNSSRD?
+QGNSSRD: $GNRMC,075122.000,A,1903.2739,N,07300.9712,E,1.84,233.46,110121,,,A*71
$GNVTG,233.46,T,,M,1.84,N,3.41,K,A*28
$GNGGA,075122.000,1903.2739,N,07300.9712,E,1,7,2.37,54.5,M,-63.0,M,,*51
$GPGSA,A,3,195,27,194,26,04,16,,,,,,,2.56,2.37,0.97*08
$GLGSA,A,3,73,,,,,,,,,,,,2.56,2.37,0.97*13
$GPGSV,4,1,15,03,60,213,,04,57,010,26,16,48,042,29,22,42,186,*71
$GPGSV,4,2,15,09,30,328,,27,28,113,19,07,25,282,,08,24,155,*7B
$GPGSV,4,3,15,194,20,051,16,26,17,038,25,193,12,130,19,195,11,094,31*49
$GPGSV,4,4,15,01,06,196,,21,02,176,,30,01,262,*41
$GLGSV,2,1,06,71,76,105,,74,55,329,,72,44,340,,70,26,145,*69
$GLGSV,2,2,06,73,23,023,18,65,03,332,*6C
$GNGLL,1903.2739,N,07300.9712,E,075122.000,A,A*49
OK
