A08B IP67 Waterproof Ultrasonic Precision Rangefinder 25~800cm

DYP

No reviews yet Write a Review
SKU:
514-DYP-A08BNYUB-V1.0
MPN:
DYP-A08BNYUB-V1.0
DYP Sensor A08 IP67 waterproof ultrasonic precision rangefinder for 25 cm to 800 cm distance and level measurement
Quantity
Unit Price (ex. GST)
1 - 9
₹ 6,289.92
10 - 49
₹ 5,975.42
50 or above
₹ 5,660.93
DYP Sensor A08B DYP Sensor A08 IP67 Waterproof Ultrasonic Rangefinder 25 cm To 800 cm View full description
  • 100% Original Products
  • GST Invoice
  • Earn 3% Cashback
₹7,422.11 inc. GST
₹6,289.92 ex. GST
5 people looking at this.

Technical Specifications

Brand:
DYP
Product Type:
Waterproof Ultrasonic Precision Rangefinder
Series:
A08
Sensing Method:
Ultrasonic
Probe Type:
Closed Waterproof Bistatic Probe
Waterproof Rating:
IP67
Measuring Range:
25 cm - 800 cm
Blind Zone:
25 cm
Ultrasonic Frequency:
40 kHz
Resolution:
1 cm
Output Interface Options:
PWM Processing Value, UART Automatic, UART Controlled
Working Voltage:
3.3 V - 5 V DC
Structure Type:
Reflective
Working Current:
Lower Than 8 mA At 12 V DC
Flat Object Measurement Accuracy:
1 Plus S x 0.5%
Standby Current:
Lower Than 10 uA
Measurement Accuracy:
+- 1 Plus S x 0.3% cm
Operating Temperature:
-15 C ~ +60 C
Detection Zone:
Long Narrow Detection Zone
Compliance:
CE, RoHS
Pipe Fitting Compatibility:
Standard 3 By 4 Inch PVC Electrical Pipe Fittings
Applications:
Sewer Level Monitoring, Narrow-Angle Horizontal Ranging, Intelligent Detection System

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources

DYP Sensor A08B IP67 Waterproof Ultrasonic Precision Rangefinder For 25cm - 800cm Distance Measurement

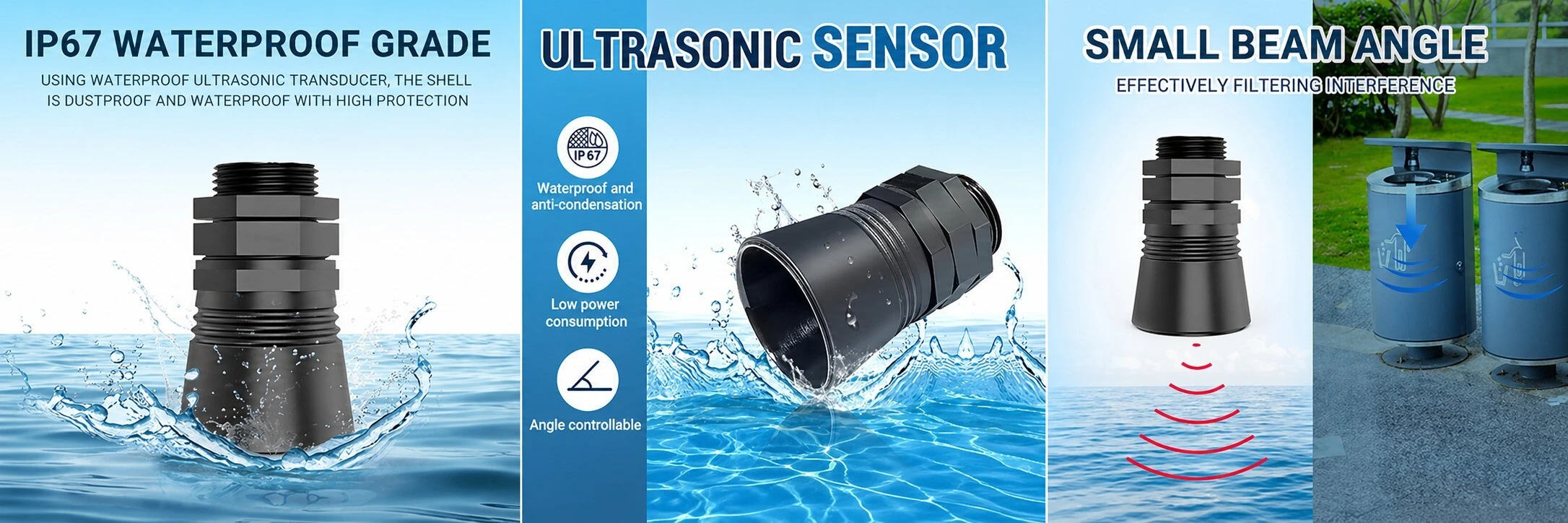

The DYP Sensor A08 is an IP67 waterproof ultrasonic precision rangefinder designed for reliable distance and level measurement in outdoor, industrial, and embedded applications. It uses a 40 kHz ultrasonic transducer with intelligent matching technology to maintain stable performance across changing environments.

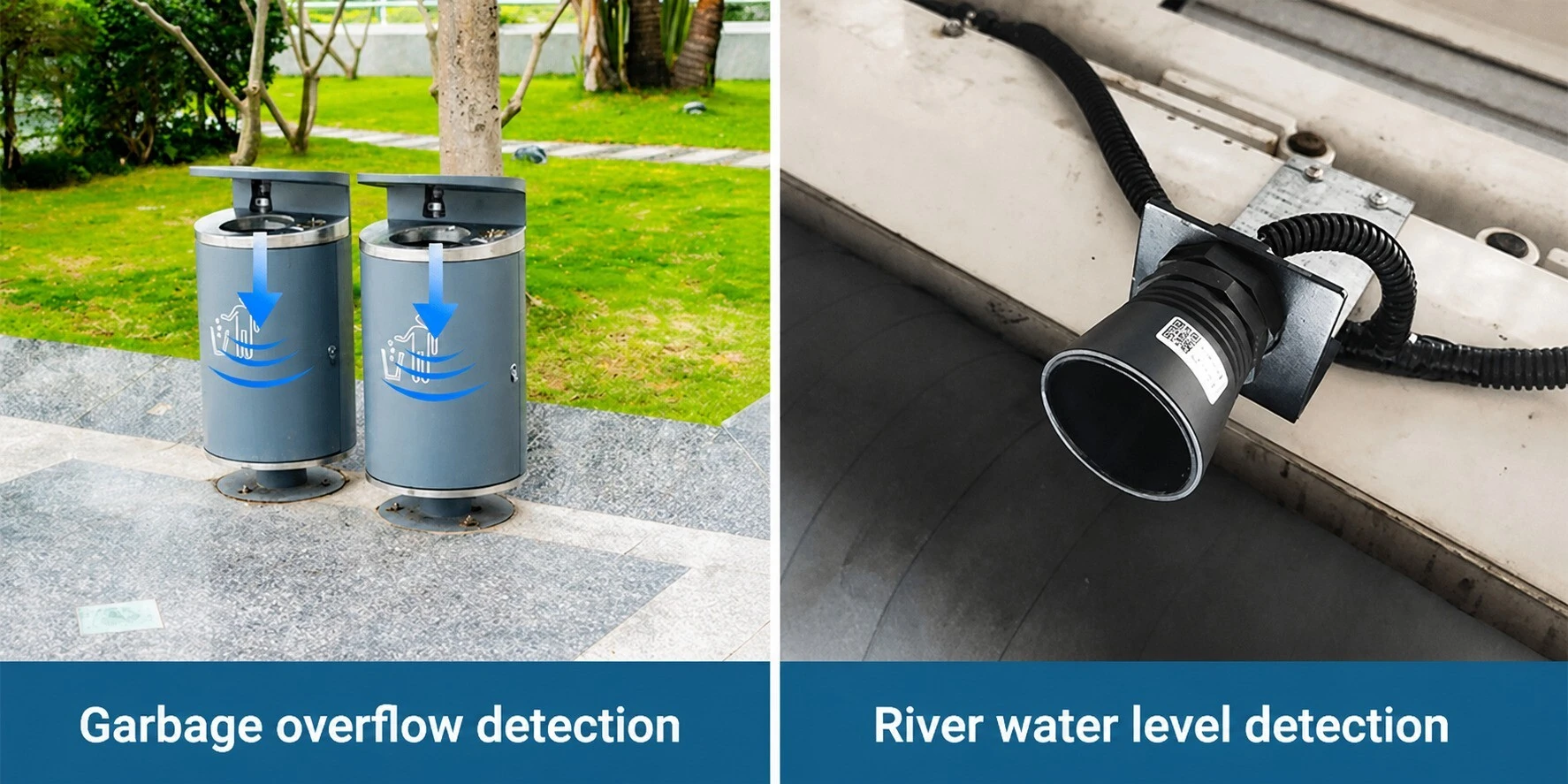

This ultrasonic precision rangefinder is well-suited for sewer-level monitoring, river-level measurement, narrow-angle horizontal ranging, smart-waste-bin fill-level detection, and height-measurement systems. Its waterproof housing, low-power design, and multiple output options make it easy to integrate into IoT devices, automation systems, and battery-powered products.

The A08 series is available in application-focused variants. The A08A series is mainly used for plane-distance measurement with a stable range of 25 cm to 800 cm and a small beam-angle for long-distance ranging. The A08B series is designed for human-body distance measurement with high sensitivity and a wider detection angle. The A08C series is developed for smart-waste-bin level measurement and includes a built-in frame-filtering algorithm to reduce interference from bin walls and baffles.

Key Features

  • IP67 Waterproof Design: Suitable for outdoor, humid, and splash-prone environments.
  • Wide Detection Range: A08A supports stable plane-object measurement from 25 cm to 800 cm.
  • Centimetre Resolution: Provides easy-to-read distance values for precision-ranging applications.
  • Temperature Compensation: On-board temperature correction helps maintain stable readings from -15 deg C to +60 deg C.
  • 40 kHz Ultrasonic Operation: Measures distance using ultrasonic reflection for non-contact sensing.
  • Low-Power Consumption: Static current is less than 5 uA and operating current is less than 15 mA.
  • Multiple Output Modes: Supports PWM processing-value output, UART automatic output, and UART controlled output for flexible integration.
  • Smart-Waste-Bin Support: A08C includes frame-filtering logic to filter interference between 30 cm and 80 cm.
  • High Measurement Accuracy: Plane-object accuracy is +/- 1 + S x 0.3% cm, where S is the measured distance.
  • Compact And Lightweight Module: Easy to fit into embedded projects, industrial devices, and product enclosures.
  • RoHS Compliant: Suitable for applications requiring restricted-substance compliance.
Recommended Applications
  • Sewer-level monitoring
  • River-level monitoring
  • Narrow-angle horizontal ranging
  • Smart-waste-bin fill-level detection
  • Liquid-level measurement
  • Distance and height measurement
  • Outdoor IoT sensing systems
  • Industrial automation projects
