Technical Specifications

Brand:

DYP

Product Type:

Waterproof Ultrasonic Precision Rangefinder

Series:

ME007YS

Sensing Method:

Ultrasonic

Probe Type:

Closed Waterproof Bistatic Probe

Waterproof Rating:

IP67

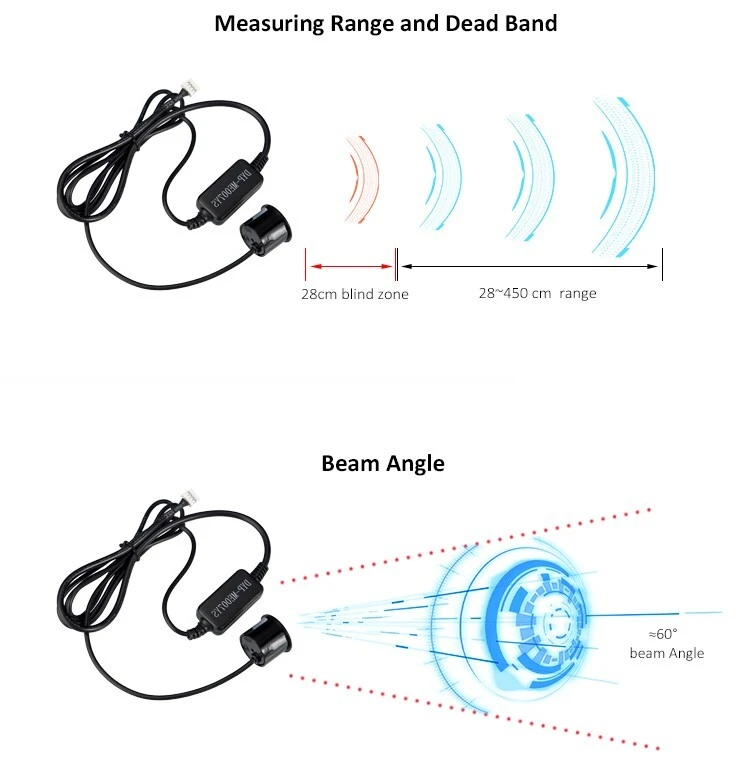

Measuring Range:

28 cm - 450 cm

Blind Zone:

28 cm

Ultrasonic Frequency:

40 kHz

Resolution:

1 mm

Output Interface Options:

UART Automatic, UART Control, PWM, Switch

Working Voltage:

3.3 V - 12 V DC

Temperature Compensation:

Automatic

Working Current:

Lower Than 8 mA At 12 V DC

Flat Object Measurement Accuracy:

1 Plus S x 0.5%

Standby Current:

Lower Than 10 uA

Measurement Accuracy:

+- 1 Plus S x 0.3% cm

Operating Temperature:

-15 C ~ +60 C

Cable Length:

100 cm

Compliance:

CE, RoHS

Probe Type:

Integrated Transmitter And Receiver

Applications:

Robot Avoidance, Automatic Control, Object Proximity, Presence Awareness, Parking Management, Slow-Moving Target Detection

Warranty Information

All the products supplied by Evelta are genuine and original. We offer 14 days replacement warranty in case of manufacturing defects. For more details, please visit our cancellation and returns page.

Description

Resources

DYP Sensor ME007YS IP67 Waterproof Ultrasonic Precision Rangefinder For 28cm ~ 450 cm Object Detection And Parking Management

The DYP Sensor ME007YS IP67 Waterproof Ultrasonic Precision Rangefinder is designed for stable non-contact distance measurement in outdoor, wet, dusty, and electrically noisy environments. With a 28 cm to 450 cm measuring range, 1 mm resolution, and IP67 waterproof protection, it is well-suited for robot obstacle avoidance, object-presence detection, parking-management systems, and automatic-control applications.

This ultrasonic rangefinder uses an integrated transmitter-and-receiver probe with an anti-water probe design. Its built-in high-precision ranging algorithm, real-time waveform-feature analysis, noise-suppression processing, and power-management programme help deliver reliable readings even where acoustic or electrical noise is present.

The ME007YS module is a practical choice for applications where larger objects, slow-moving targets, or presence-aware systems need to be detected. It supports UART automatic, UART control, PWM, and switch output formats, making integration easier across embedded-control, industrial-sensing, and smart-parking projects.

Key Features

Wide Measuring Range: Measures objects from 28 cm to 450 cm for long-distance ultrasonic ranging.
1 mm Resolution: Provides fine distance feedback for accurate object-detection and proximity-sensing applications.

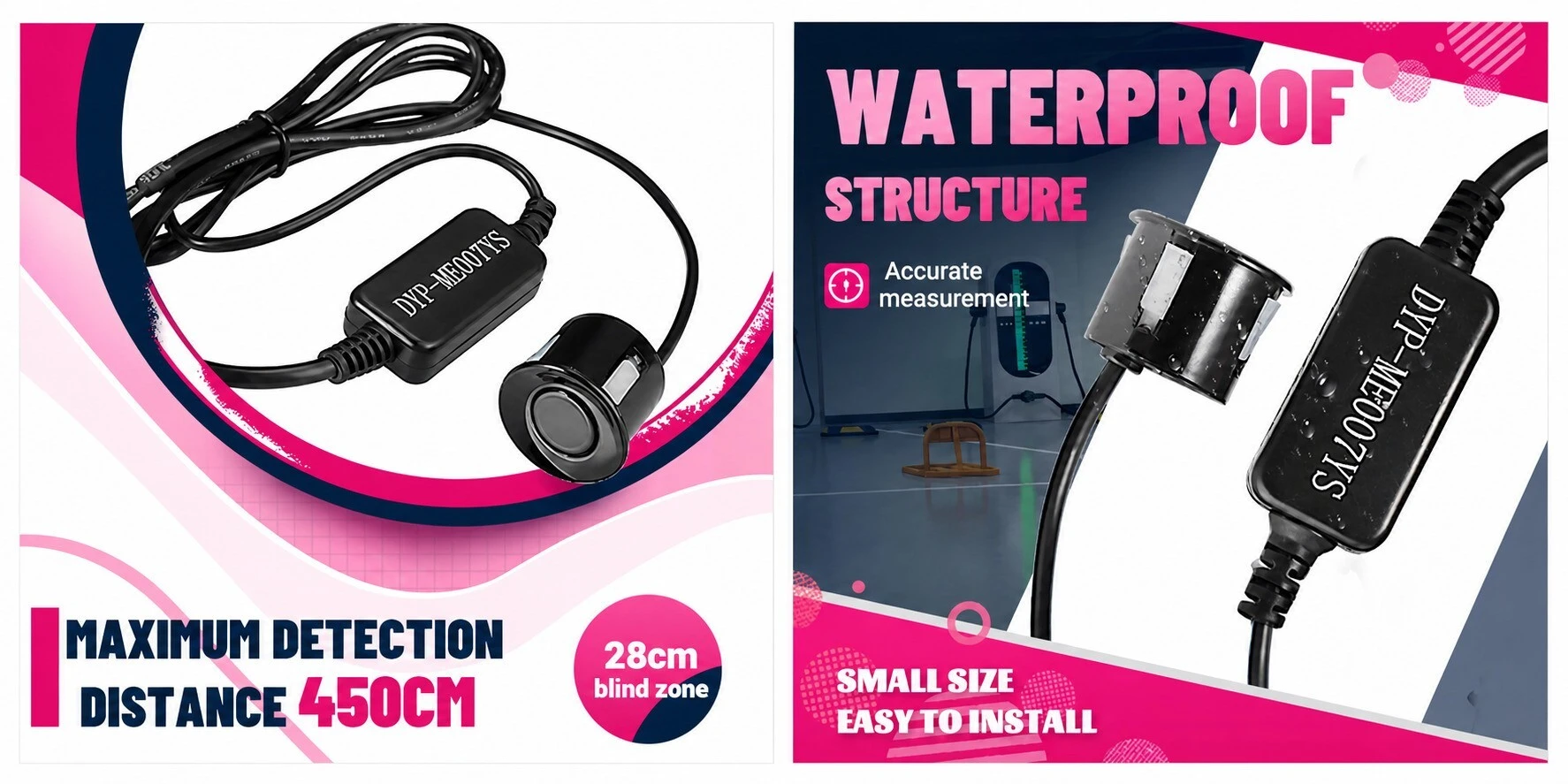

IP67 Waterproof Protection: Anti-water probe design supports use in wet, outdoor, and harsh working conditions.

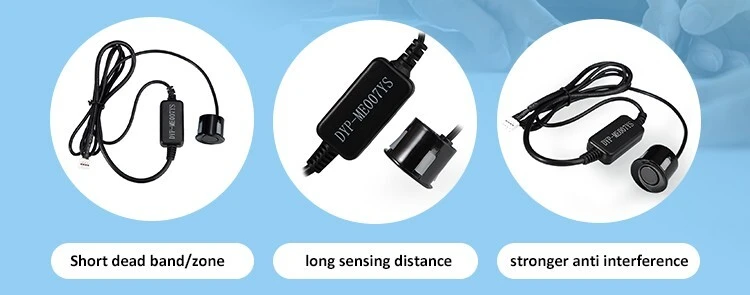

High Anti-Interference Ability: Real-time waveform-feature analysis and noise-suppression algorithms help reduce unstable readings.

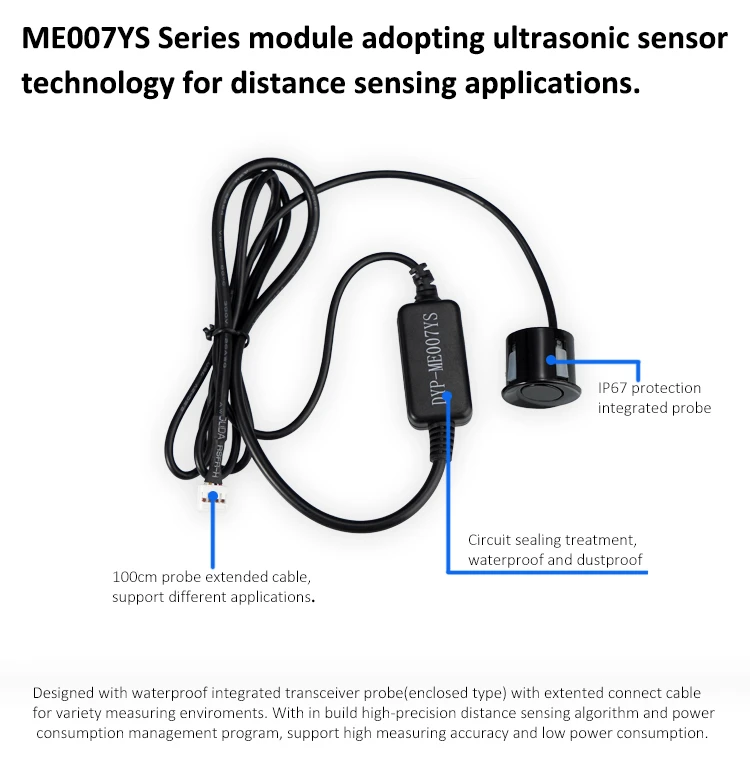

Integrated Probe Design: Transmitter-and-receiver integrated probe simplifies installation and improves mechanical reliability.
Automatic Temperature Compensation: Helps maintain measurement consistency across changing operating environments.
Multiple Output Formats: Supports UART automatic, UART control, PWM, and switch output for flexible system integration.
Low-Power Design: Static current is lower than 10 uA and working current is lower than 8 mA at 12 V DC.
High-Precision Ranging Algorithm: Internal ranging arithmetic supports error lower than 5 mm under specified conditions.
Compact And Lightweight Body: Small-volume and light-weight design makes the sensor easy to fit into products and projects.
Long Cable Length: 100 cm wire length supports convenient installation in robot, parking, and control-system layouts.
CE And RoHS Compliant: Suitable for applications requiring standard compliance in electronic product development.
Stable Long-Life Operation: Built for reliable distance measurement in poor working conditions.
Slow-Moving Target Detection: Well-suited for object-proximity, presence-awareness, and parking-management applications.
