DYP Sensor A07 IP67 Waterproof Ultrasonic Precision Rangefinder For 25cm-800cm Sewer Level Monitoring And Narrow-Angle Distance Measurement

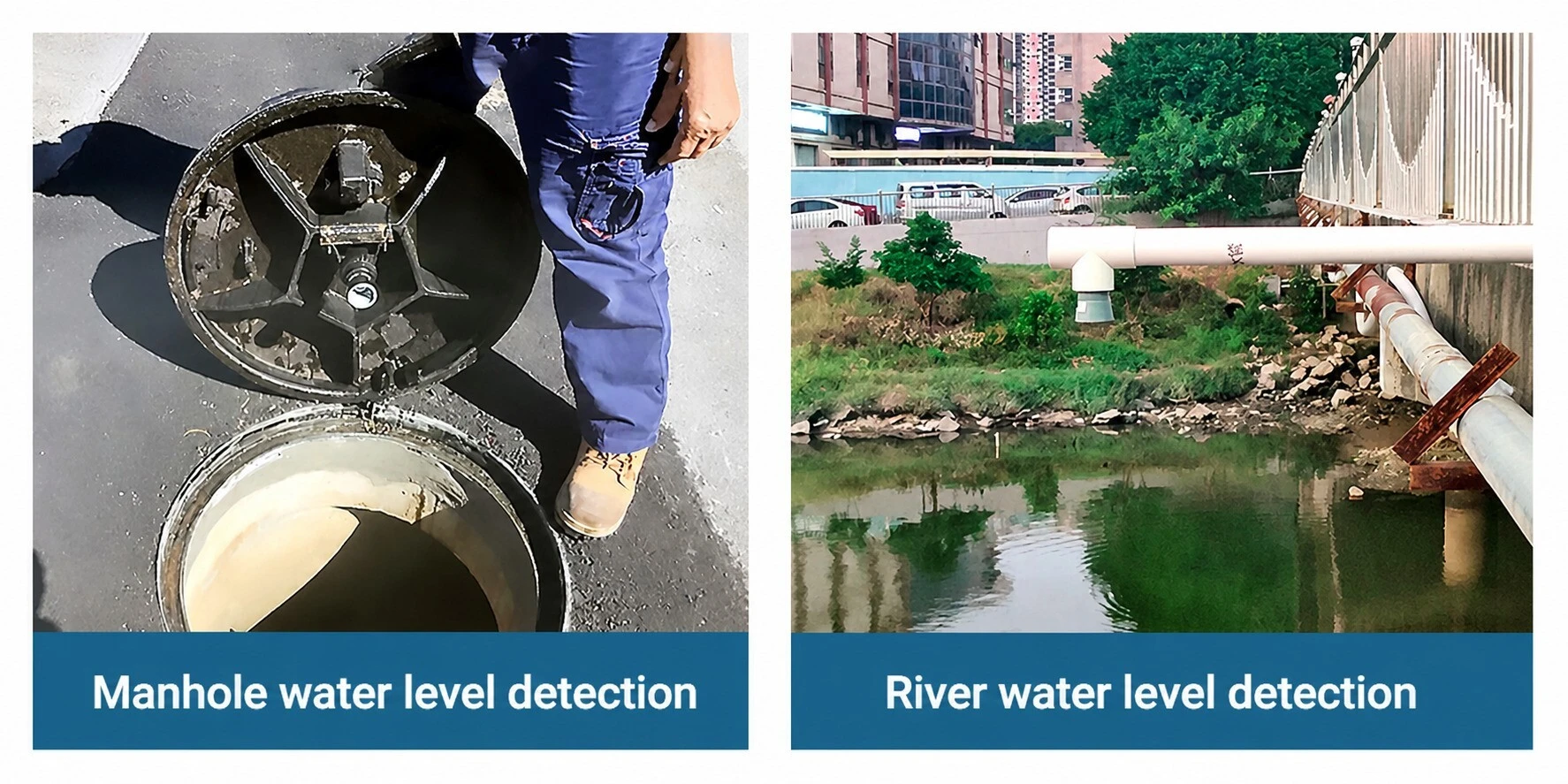

The DYP Sensor A07 IP67 Waterproof Ultrasonic Precision Rangefinder is designed for reliable long-distance non-contact measurement in wet, corrosive, and noisy environments. With a 25 cm to 800 cm measuring range, 1 cm accuracy, and IP67 waterproof protection, it is well-suited for sewer-level monitoring, narrow-angle horizontal ranging, and intelligent-detection systems.

This waterproof ultrasonic rangefinder uses a 40 kHz ultrasonic transducer with a reflective structure for stable distance measurement. The transducer is treated with anti-corrosion protection, while the compact PVC shell is designed to match standard 3-by-4-inch PVC electrical pipe fittings, making it suitable for rugged field installation.

The A07 module combines real-time waveform-feature analysis with noise-suppression algorithms to provide stable distance readings, even in environments with acoustic or electrical noise. It supports PWM processing-value output, UART automatic output, and UART controlled output, offering flexible integration into embedded-control, automation, and monitoring systems.

Key Features

• 25 cm To 800 cm Measuring Range: Supports long-distance ultrasonic sensing for level-monitoring and distance-measurement applications.
• 25 cm Blind Zone: Provides stable measurement beyond the 25 cm near-range blind zone.
• Centimetre-Level Resolution: Delivers practical distance feedback for industrial and environmental monitoring.
• 1 cm Accuracy: Supports precise measurement for sewer-level monitoring and narrow-angle ranging tasks.

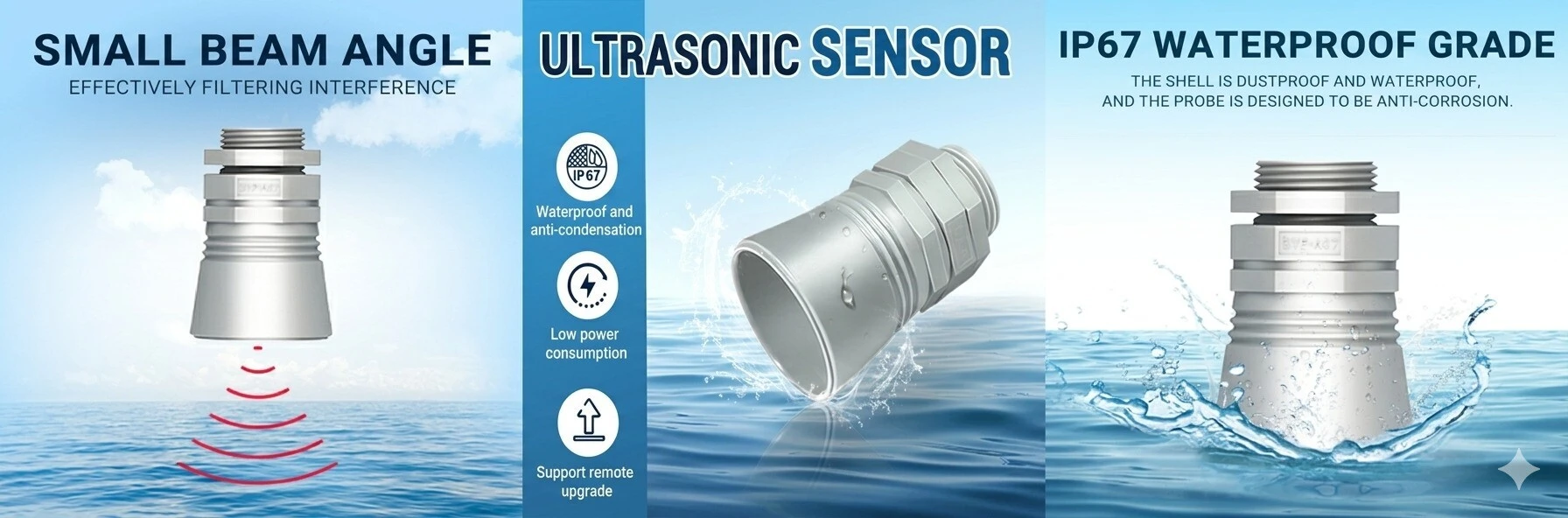

• IP67 Waterproof Enclosure: Compact PVC shell protects the sensor in wet, dusty, and harsh-use environments.
• Anti-Corrosion Transducer: Treated transducer improves durability in demanding field conditions.
• 40 kHz Ultrasonic Sensing: Uses a 40 kHz ultrasonic sensor for reliable non-contact distance measurement.
• Internal Temperature Compensation: Maintains stable measurement performance from -15 deg C to +60 deg C.
• Multiple Output Interfaces: Supports PWM processing-value output, UART automatic output, and UART controlled output.
• Low-Power Design: Static current is lower than 10 uA and operating current is lower than 15 mA.
• Noise-Suppression Algorithm: Real-time waveform-feature analysis helps reduce acoustic and electrical noise impact.
• PVC Pipe Fitting Compatibility: Designed to match standard 3 by 4 inch PVC electrical pipe fittings.
• Compact And Lightweight Module: Easy to integrate into monitoring systems, products, and industrial projects.
• RoHS Compliant: Suitable for compliant electronic designs and industrial-use applications.
