DYP-H01 Capacitive High-Precision Ultrasonic Distance Sensor - 10cm to 800cm Range
The DYP-H01 is a Commercial-Grade Ultrasonic Ranging Module built for accurate, non-contact distance and height measurement. It uses a capacitive electrostatic transducer probe to deliver millimeter-level resolution across a measuring range of 10 cm to 800 cm, with a dead-band of 10 cm for objects placed closer than the minimum range. The module supports multiple output interfaces, including UART, PWM auto-output, PWM controlled-output, and RS485, allowing easy integration into a wide range of control systems and embedded projects. Its 40kHz ultrasonic sensor and on-board temperature-compensation circuit correct for ambient temperature deviation, ensuring stable and repeatable readings between -10 to +50 deg C.
Built with a stainless-steel shell, the DYP-H01 is well-suited to harsh and outdoor operating environments, offering high anti-interference performance and consistent data output even under fluctuating conditions. It can accurately detect flat objects up to 800 cm away and human bodies within a range of 100 mm to 3000 mm, making it suitable for robot obstacle-avoidance, automatic control systems, and intelligent altimeter applications. The compact, light-weight design combined with fast response time and high measurement accuracy makes this module a dependable choice for both slow-moving target detection and fixed-distance monitoring tasks.
KEY FEATURES
- Measuring Range: 10 cm to 800 cm for flat-object detection, 100 mm to 3000 mm for human-body detection
- Resolution: Millimeter-level accuracy for precise distance readings
- Output Interfaces: UART, PWM auto-output, PWM controlled-output, and RS485 - selectable as per application need
- Temperature Compensation: On-board circuit auto-corrects temperature deviation for stable ranging from -10 to +50 deg C

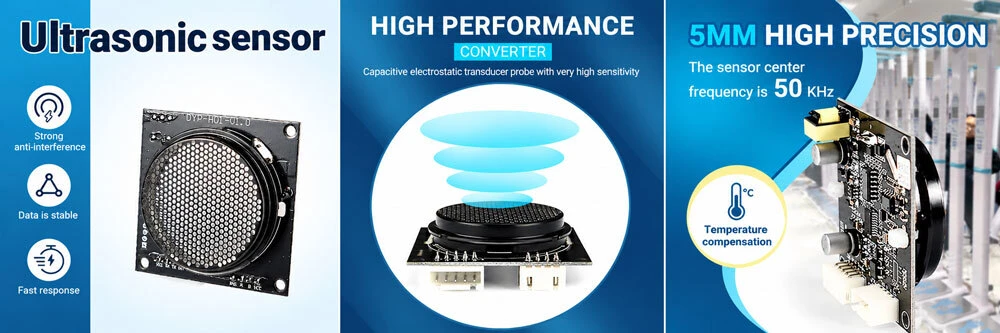

- Sensor Type: 40kHz ultrasonic sensor with capacitive electrostatic transducer probe for high sensitivity
- Build Quality: Stainless-steel shell protection, suitable for harsh and industrial environments
- Dead Band: 10 cm - objects closer than this range are read as 10 cm
- Input Voltage: 3.3V to 5.0V or 5.0V to 12.0V, depending on configuration
- Working Current: 25 mA or less (RS485 output)
- Accuracy: +/-(1 + S x 0.3%), where S is the measuring range
- Compliance: CE and RoHS certified
- Form Factor: Compact, light-weight design for easy integration into end products
APPLICATIONS
- Robot obstacle-avoidance and navigation systems
- Automatic control and industrial automation setups

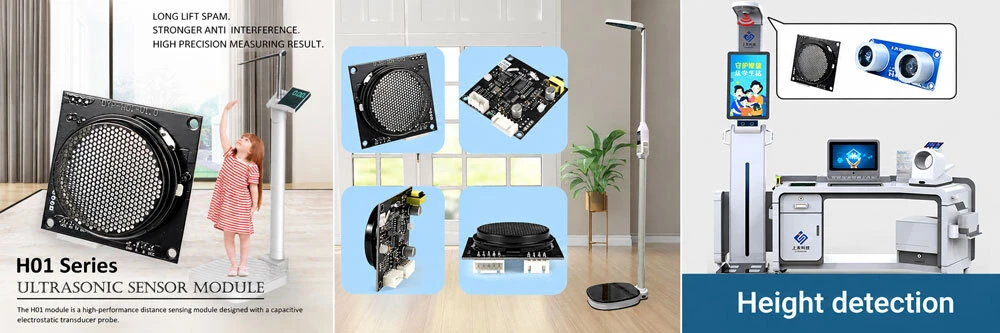

- Intelligent altimeter and height-measurement devices
- Slow-moving target detection and tracking
- Level monitoring and non-contact distance-sensing applications
