7Semi Vikram 3230 High-Current Single-Channel Brushed DC Motor Driver with 7–32V Input and 30A Continuous Output
The 7Semi Vikram 3230 is a high-current single-channel motor driver designed to control one brushed DC motor from a 7–32V DC motor supply. Its discrete high-current H-bridge power stage provides bidirectional forward and reverse motor control, while dedicated direction and PWM inputs allow straightforward adjustment of motor direction and speed. The module supports up to 30A continuous motor current and short-duration peak currents up to 100A for a maximum of 1 second.
The control interface supports both 3.3V and 5V logic levels, enabling connection to Arduino, ESP32, STM32, RP2040, and other embedded controllers. PWM operation up to 20kHz provides flexible speed control, while overcurrent, overvoltage, VM undervoltage-lockout, and thermal-shutdown functions help protect the power stage during abnormal operating conditions. The thermal-shutdown threshold is specified at 120°C.
Key Features
- Single Motor Channel: Controls 1 brushed DC motor
- High Continuous Current: Supports up to 30A continuous motor current
- High Peak Current: Supports up to 100A for a maximum of 1 second
- Wide Motor Supply Range: Operates from 7–32V DC
- Bidirectional Motor Control: Supports forward and reverse rotation
- PWM Speed Control: Supports PWM frequencies up to 20kHz
- Direction + PWM Interface: Dedicated DIR and PWM control inputs
- 3.3V/5V Logic Compatible: Interfaces with common microcontrollers and embedded controllers
- Discrete H-Bridge: High-current discrete power-stage architecture
- Overcurrent Protection: Helps protect the output stage against excessive current or output faults
- Overvoltage Protection: Helps protect the module against excessive motor-supply voltage
- VM Undervoltage Lockout: Prevents unstable operation when the supply voltage falls below the required level
- Thermal Shutdown: Disables motor operation at a 120°C thermal-shutdown threshold
- High-Current Design: Suitable for demanding brushed DC motor applications
- Compact Module: 72 × 42 × 27.22 mm dimensions
Applications
- High-current brushed DC motor control
- Industrial actuators
- Automated guided vehicles
- Mobile robotic platforms
- Conveyor mechanisms
- Battery-powered vehicles
- Robotic drive systems
- Industrial automation
- Motorised mechanisms
- Motion-control prototypes
- High-torque DC motor systems
- Differential-drive systems using 2 independent driver modules

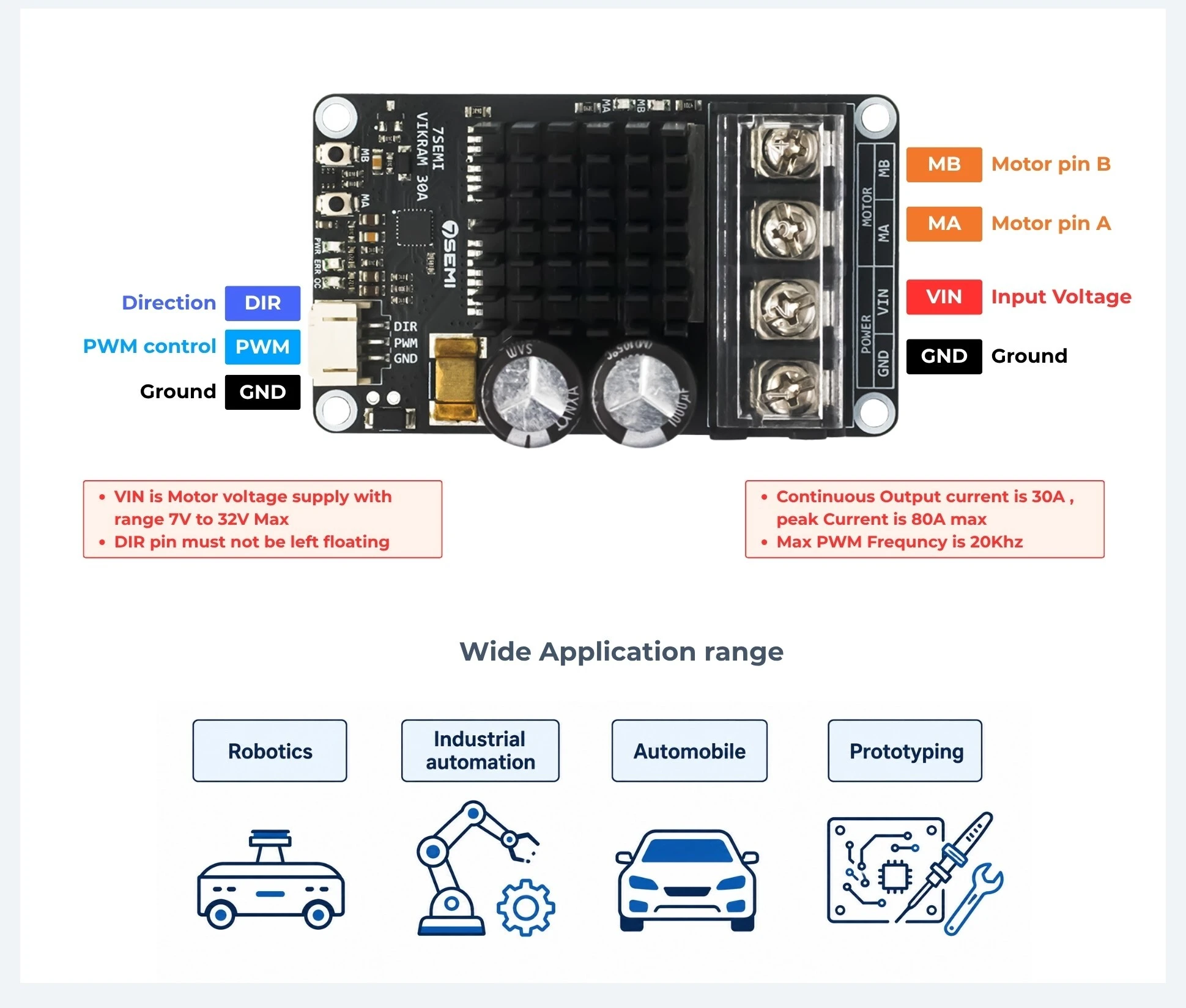

7Semi Vikram 30A Single Channel Motor Driver
Pinout Reference Guide

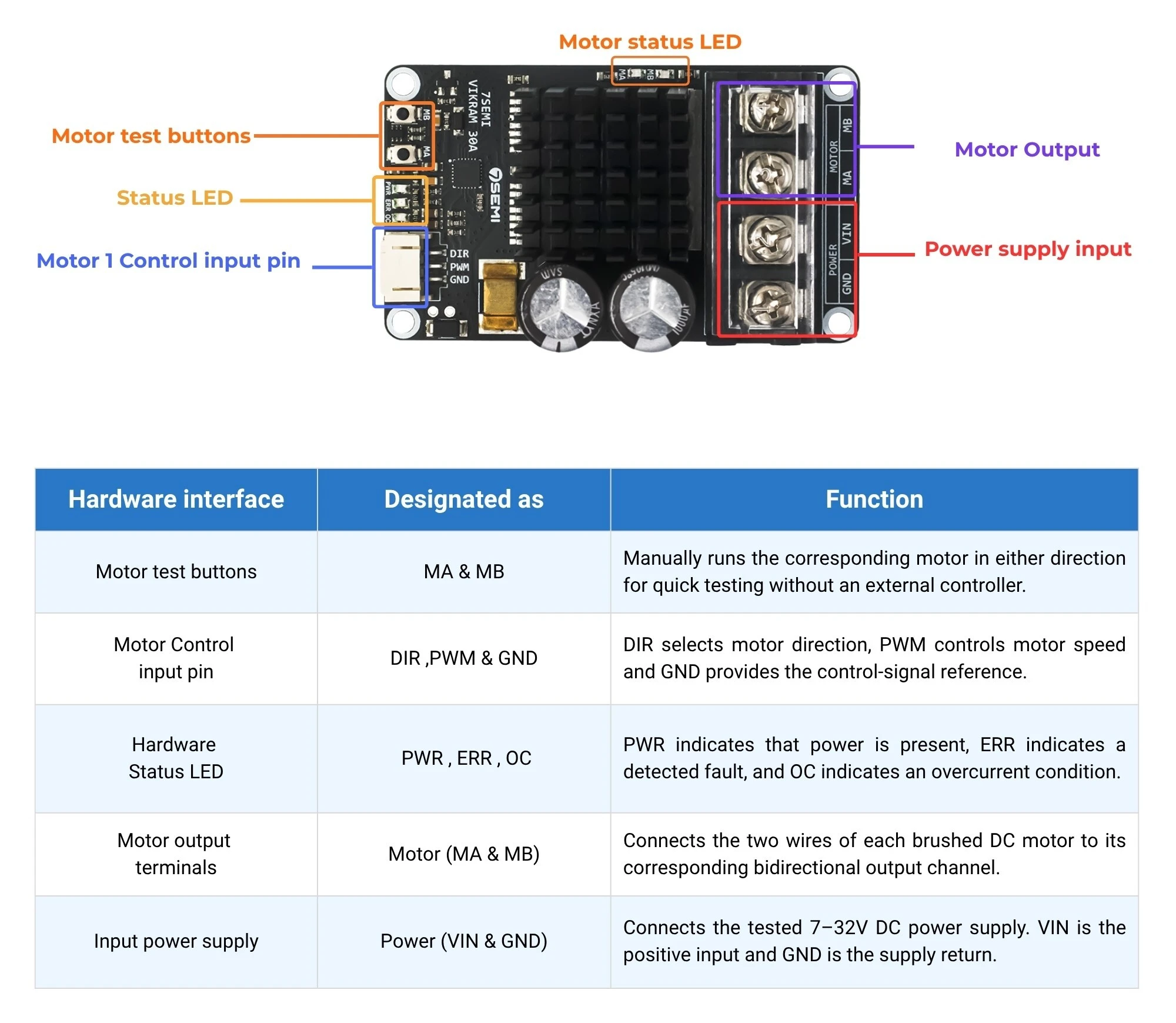

7Semi Vikram 30A Single Channel Motor Driver
Hardware Interfacing Guide

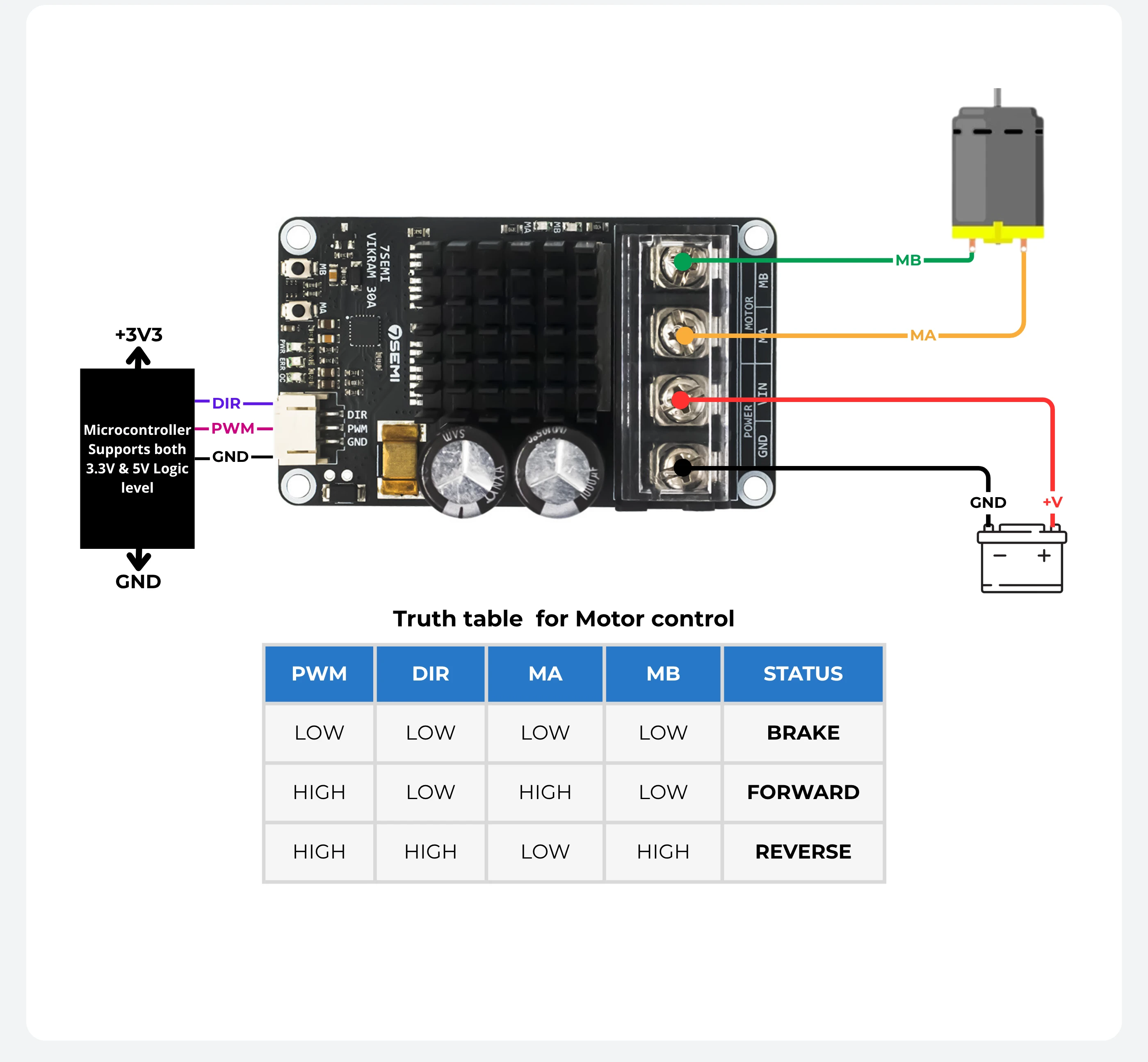

7Semi Vikram 30A Single Channel Motor Driver
Circuit Reference Guide
Package Includes:
- 1x Motor driver module (MD-10127)
- 1x JST Connector cable
